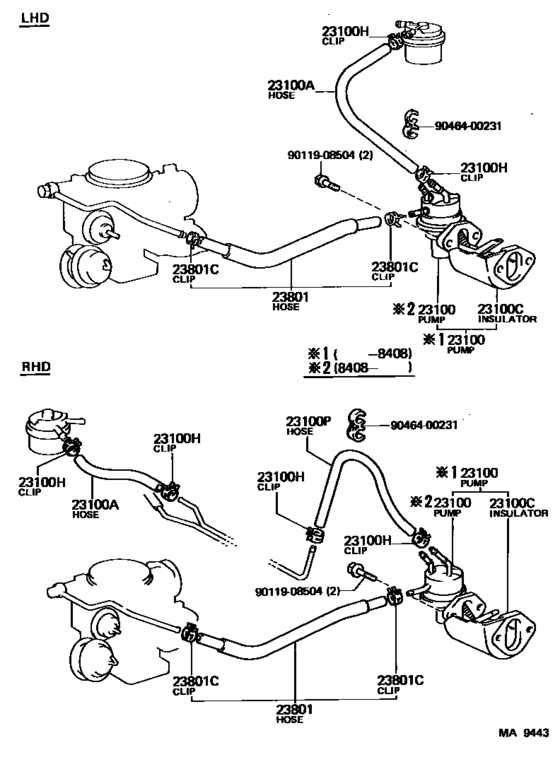

Fuel Pump & Pipe ([05.1983 - ] (8305- )4A,4AC) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-15042
Pump Assy, Fuel
[08.1984 - 04.1987] 4A,4AC..AE86 |
23100-15042 |
— | ||
|
23100
|
23100
23100-19145 Pump Assy, Fuel[05.1983 - 11.1983] 4A,4AC..AE86 |
23100-19145 |
US $100.46 |
||
| replacements | |||||
|
23100
|
23100
23100-15042
Pump Assy, Fuel
[05.1983 - 11.1983] 4A,4AC..AE86 |
23100-15042 |
— | ||
|
23100
|
23100
23915-15011
Insulator, Fuel Pump
[05.1983 - 11.1983] 4A,4AC..AE86 |
23915-15011 |
— | ||
|
23100
|
23100
23100-19146 Pump Assy, Fuel[11.1983 - 08.1984] 4A,4AC..AE86 |
23100-19146 |
US $123.76 |
||
| replacements | |||||
|
23100
|
23100
23915-15011
Insulator, Fuel Pump
[11.1983 - 08.1984] 4A,4AC..AE86 |
23915-15011 |
— | ||
|
23100
|
23100
23100-15042
Pump Assy, Fuel
[11.1983 - 08.1984] 4A,4AC..AE86 |
23100-15042 |
— | ||
|
23100A
|
23100A
95332-06030
Hose(For Carburetor)
[05.1983 - 01.1987] 4A,4AC..AE86..LHD *H,L=220 |
95332-06030 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95333-06030
Hose, Fuel
[05.1983 - 01.1987] 4A,4AC..AE86..LHD *H,L=220 |
95333-06030 |
— | ||
|
23100A
|
23100A
95333-06030
Hose, Fuel
[01.1987 - 04.1987] 4A..AE86..LHD *H,L=220 |
95333-06030 |
— | ||
|
23100C
|
23100C
23915-15010
Insulator, Fuel Pump
[05.1983 - 02.1985] 4A,4AC..AE86 |
23915-15010 |
— | ||
| replacement | |||||
|
23100C
|
23100C
23915-15011
Insulator, Fuel Pump
[05.1983 - 02.1985] 4A,4AC..AE86 |
23915-15011 |
— | ||
|
23100C
|
23100C
23915-15011
Insulator, Fuel Pump
[02.1985 - 04.1987] 4A,4AC..AE86 |
23915-15011 |
— | ||
|
23100H
|
23100H
96132-30600
Clip(For Actuator Hose)
[05.1983 - 04.1987] 4A,4AC..AE86 |
96132-30600 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[05.1983 - 04.1987] 4A,4AC..AE86 |
96132-51100 |
from US $1.68 |
||
|
23801
|
23801
23271-15010
Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
[05.1983 - 04.1987] 4A,4AC..AE86 |
23271-15010 |
— | ||
|
23801C
|
23801C
96132-30600
Clip(For Actuator Hose)
[05.1983 - 04.1987] 4A,4AC..AE86 |
96132-30600 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51100 Clip (For Hose)[05.1983 - 04.1987] 4A,4AC..AE86 |
96132-51100 |
from US $1.68 |
||
|
9011908504
|
9011908504
90119-08504
Bolt(For Clutch Release Cylinder Setting)
|
90119-08504 |
— | ||
| replacement | |||||
|
9011908504
|
9011908504
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.46 |
||
|
9046400231
|
9046400231
90464-00231 Clamp, Fuel Pipe(Hose), No.1 |
90464-00231 |
US $3.32 |
||
