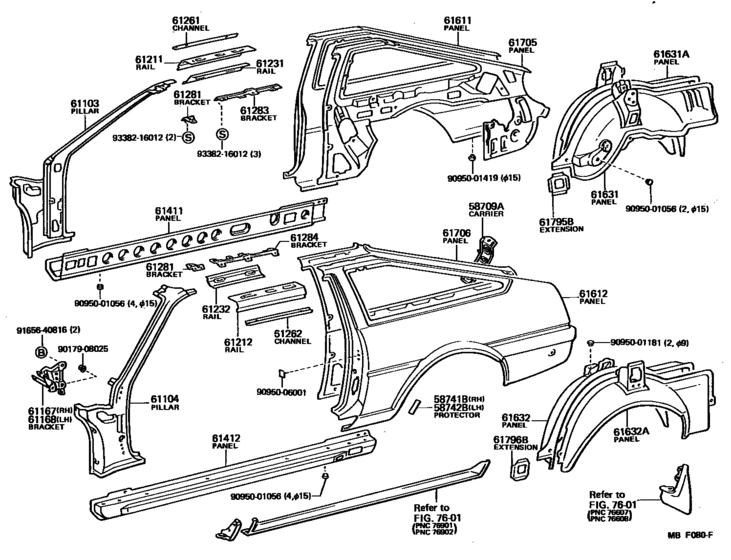

Side Member ([05.1983 - ] (8305- )3D) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58709A
|
58709A
58709-12050
Carrier Sub-Assy, Jack
[05.1983 - 05.1985] AE86..3D |
58709-12050 |
— | ||
|
58741B
|
58741B
58741-12010 Protector, Quarter Panel, RhQUARTER PANEL, RH [05.1983 - 07.1987] AE86 |
58741-12010 |
US $12.38 |
||
|
58742B
|
58742B
58742-12010 Protector, Quarter Panel, LhQUARTER PANEL, LH [05.1983 - 07.1987] AE86 |
58742-12010 |
US $12.38 |
||
|
61103
|
61103
61021-12350 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [05.1983 - 05.1985] AE86..LHD..(EUR,GEN) |
61021-12350 |
US $931.84 |
||
| replacement | |||||
|
61103
|
61103
61021-12351
Pillar Sub-Assy, Front Body, Rh
[05.1983 - 05.1985] AE86..LHD..(EUR,GEN) |
61021-12351 |
— | ||
|
61104
|
61104
61022-12410 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [05.1983 - 05.1985] AE86..LHD..(EUR,GEN) |
61022-12410 |
US $931.84 |
||
| replacement | |||||
|
61104
|
61104
61022-12411
Pillar Sub-Assy, Front Body, Lh
[05.1983 - 05.1985] AE86..LHD..(EUR,GEN) |
61022-12411 |
— | ||
|
61167
|
61167
61035-12020 Bracket, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [05.1983 - 07.1987] AE86..LHD |
61035-12020 |
US $38.29 |
||
|
61211
|
61211
61211-12180 Rail, Roof Side, Outer RhROOF SIDE, OUTER RH [05.1983 - 07.1987] AE86 |
61211-12180 |
US $32.18 |
||
|
61212
|
61212
61212-12180 Rail, Roof Side, Outer LhROOF SIDE, OUTER LH [05.1983 - 07.1987] AE86 |
61212-12180 |
US $32.18 |
||
|
61231
|
61231
61231-12320
Rail, Roof Side, Inner Rh
[05.1983 - 07.1987] AE86 |
61231-12320 |
— | ||
|
61232
|
61232
61232-12220 Rail, Roof Side, Inner LhROOF SIDE, INNER LH [05.1983 - 07.1987] AE86 |
61232-12220 |
US $21.84 |
||
|
61261
|
61261
61265-12050 Channel, Roof Drip, RhROOF DRIP, RH [05.1983 - 07.1987] AE86 |
61265-12050 |
US $42.66 |
||
|
61262
|
61262
61266-12050 Channel, Roof Drip, LhROOF DRIP, LH [05.1983 - 07.1987] AE86 |
61266-12050 |
US $42.66 |
||
|
61281
|
61281
61281-12010 Bracket, Sliding Roof Housing Mounting, No.1SLIDING ROOF HOUSING MOUNTING, NO.1 [05.1983 - 07.1987] AE86 |
61281-12010 |
US $5.97 |
||
|
61283
|
61283
61283-12010 Bracket, Sliding Roof Housing Mounting, No.3 RhSLIDING ROOF HOUSING MOUNTING, NO.3 RH [05.1983 - 07.1987] AE86 |
61283-12010 |
US $24.75 |
||
|
61284
|
61284
61284-12010 Bracket, Sliding Roof Housing Mounting, No.3 LhSLIDING ROOF HOUSING MOUNTING, NO.3 LH [05.1983 - 07.1987] AE86 |
61284-12010 |
US $24.75 |
||
|
61411
|
61411
61401-12180
Panel, Rocker, Outer Rh
[05.1983 - 07.1987] AE86 |
61401-12180 |
— | ||
|
61411
|
61411
61401-12250
Panel, Rocker, Outer Rh
[08.1984 - 05.1985] AE86..GT..GEN;AE86..ARL,EUR,ME W/SIDE MUDGUARD |
61401-12250 |
— | ||
|
61412
|
61412
61402-12180
Panel, Rocker, Outer Lh
[05.1983 - 07.1987] AE86 |
61402-12180 |
— | ||
|
61412
|
61412
61402-12250
Panel, Rocker, Outer Lh
[08.1984 - 05.1985] AE86..GT..GEN;AE86..ARL,EUR,ME W/SIDE MUDGUARD |
61402-12250 |
— | ||
|
61611
|
61611
61601-1A710
Panel, Quarter, Rh
[08.1983 - 05.1985] AE86..3D..EUR |
61601-1A710 |
— | ||
|
61612
|
61612
61602-1A300
Panel, Quarter, Lh
[08.1983 - 01.1984] AE86..3D..(ARL,EUR) |
61602-1A300 |
— | ||
| replacement | |||||
|
61612
|
61612
61602-1E110
Panel, Quarter, Lh
[08.1983 - 01.1984] AE86..3D..(ARL,EUR) |
61602-1E110 |
— | ||
|
61631
|
61631
61603-12905
Panel, Quarter Wheel House, Rh
[05.1983 - 07.1987] AE86..3D |
61603-12905 |
— | ||
|
61631A
|
61631A
61631-12908
Panel, Quarter Wheel House, Outer Rh
[08.1983 - 05.1985] AE86..EUR |
61631-12908 |
— | ||
|
61632
|
61632
61604-12905
Panel, Quarter Wheel House, Lh
[05.1983 - 07.1987] AE86..3D |
61604-12905 |
— | ||
|
61632A
|
61632A
61632-12902
Panel, Quarter Wheel House, Outer Lh
[08.1983 - 05.1985] AE86..EUR |
61632-12902 |
— | ||
|
61705
|
61705
61705-12720
Panel Sub-Assy, Roof Side, Inner Rh
[05.1983 - 07.1987] AE86..3D..(ARL,EUR,ME) |
61705-12720 |
— | ||
|
61706
|
61706
61706-12780 Panel Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [05.1983 - 02.1984] AE86..3D..(ARL,EUR,ME) |
61706-12780 |
US $589.68 |
||
| replacement | |||||
|
61706
|
61706
61706-12950
Panel Sub-Assy, Roof Side, Inner Lh
[05.1983 - 02.1984] AE86..3D..(ARL,EUR,ME) |
61706-12950 |
— | ||
|
61706
|
61706
61706-12950
Panel Sub-Assy, Roof Side, Inner Lh
[02.1984 - 07.1987] AE86..3D..(ARL,EUR,ME) |
61706-12950 |
— | ||
|
61795B
|
61795B
61795-12020 Extension, Quarter Wheel House, RhQUARTER WHEEL HOUSE, RH [05.1983 - 07.1987] AE86 |
61795-12020 |
US $8.01 |
||
|
61796B
|
61796B
61796-12020
Extension, Quarter Wheel House, Lh
[05.1983 - 07.1987] AE86 |
61796-12020 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001181
|
9095001181
90950-01181 Plug, Hole(For Front Fender Apron) |
90950-01181 |
US $3.52 |
||
|
9095001419
|
9095001419
90950-01419 New Genuine Part |
90950-01419 |
US $1.76 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9338216012
|
9338216012
93382-16012 New Genuine Part |
93382-16012 |
US $0.52 |
||
