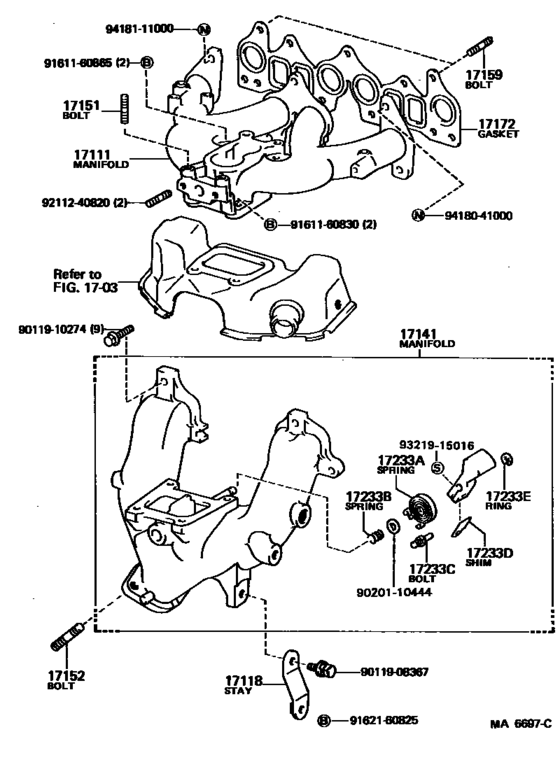

Manifold ([05.1983 - 05.1985] (8305-8505)4AC) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-16010 Manifold, IntakeINTAKE [05.1983 - 04.1987] 4A,4AC..AE86 |
17111-16010 |
US $248.98 |
||
|
17118
|
17118
17118-15030 Stay, Manifold[05.1983 - 04.1987] 4A,4AC..AE86 |
17118-15030 |
US $11.79 |
||
|
17141
|
17141
17140-16070 Manifold, ExhaustEXHAUST [05.1983 - 05.1985] 4AC..AE86 |
17140-16070 |
US $490.67 |
||
|
17151
|
17151
92112-40832 Bolt, Stud(For Manifold To Carburetor)[10.1983 - 04.1987] 4A,4AC..AE86 |
92112-40832 |
US $2.48 |
||
|
17151
|
17151
92122-40832 Bolt, Stud(For Manifold To Carburetor)[05.1983 - 10.1983] 4AC..AE86 |
92122-40832 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
90116-10058 |
from US $2.34 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1983 - 04.1987] 4A,4AC..AE86 L=44,S=12 & 20 |
92112-61032 |
US $3.06 |
||
|
17172
|
17172
17172-14010 Gasket, Manifold To Cylinder HeadMANIFOLD TO CYLINDER HEAD [05.1983 - 04.1987] 4A,4AC..AE86 |
17172-14010 |
US $17.76 |
||
| replacement | |||||
|
17172
|
17172
17172-14011 Gasket, Manifold To Cylinder Head[05.1983 - 04.1987] 4A,4AC..AE86 |
17172-14011 |
US $15.72 |
||
|
17233A
|
17233A
90510-06001
Spring, Spiral, No.1(For Counter Weight)
[05.1983 - 05.1985] 4AC..AE86 |
90510-06001 |
— | ||
|
17233B
|
17233B
90501-08022
Spring, Compression(For Heat Control Shaft)
[05.1983 - 05.1985] 4AC..AE86 |
90501-08022 |
— | ||
|
17233C
|
17233C
90109-10045
Bolt(For Counter Weight)
[05.1983 - 05.1985] 4AC..AE86 |
90109-10045 |
— | ||
|
17233D
|
17233D
90910-10005
Shim(For Counter Weight)
[05.1983 - 05.1985] 4AC..AE86 |
90910-10005 |
— | ||
|
17233E
|
17233E
96160-00800 Ring, E(For Counter Weight)[05.1983 - 05.1985] 4AC..AE86 |
96160-00800 |
from US $0.90 |
||
|
9011908367
|
9011908367
90119-08367 New Genuine Part |
90119-08367 |
US $2.33 |
||
| replacement | |||||
|
9011908367
|
9011908367
90119-08766 BOLT WWASHER |
90119-08766 |
US $1.22 |
||
|
9011910274
|
9011910274
90119-10274 New Genuine Part |
90119-10274 |
US $2.62 |
||
| replacement | |||||
|
9011910274
|
9011910274
90119-10038 New Genuine Part |
90119-10038 |
US $5.76 |
||
|
9020110444
|
9020110444
90201-10444
New Genuine Part
|
90201-10444 |
— | ||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.46 |
||
|
9161160865
|
9161160865
91611-60865 Bolt(For Rocker Support Set) |
91611-60865 |
US $1.92 |
||
|
9162160825
|
9162160825
91621-60825 BOLT |
91621-60825 |
US $1.93 |
||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
|
9321915016
|
9321915016
93219-15016
Screw, Cover Set, No.1
|
93219-15016 |
— | ||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
|
9418111000
|
9418111000
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting) |
94181-11000 |
US $2.88 |
||
