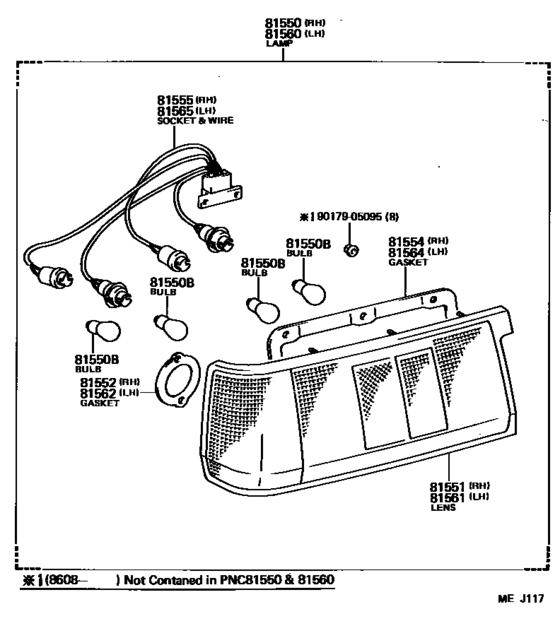

Rear Combination Lamp ([05.1983 - 05.1985] (8305-8505)3D..EUR,GEN,ME ; (8505- )3D..EUR,G EN) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80163 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1983 - 04.1987] AE86..3D..EUR |
81550-80163 |
US $339.25 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[08.1983 - 04.1987] AE86..EUR 12V 21W,12V 21W(TURN OR BACK OR RRFOG) |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1983 - 07.1987] AE86 12V 21/5W,12V 21/5W(STOP & TAIL) |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-1A250 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1983 - 04.1987] AE86..3D..EUR |
81551-1A250 |
US $282.46 |
||
|
81552
|
81552
81556-1A230 Gasket, Rear Combination Lamp Lens, RhREAR COMBINATION LAMP LENS, RH [05.1983 - 07.1987] AE86..3D |
81556-1A230 |
US $12 |
||
|
81554
|
81554
81554-1A230 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [05.1983 - 07.1987] AE86..3D |
81554-1A230 |
US $15.68 |
||
|
81555
|
81555
81555-1A250
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1983 - 04.1987] AE86..3D..EUR |
81555-1A250 |
— | ||
|
81560
|
81560
81560-80168 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1983 - 04.1987] AE86..3D..EUR |
81560-80168 |
US $339.25 |
||
|
81561
|
81561
81561-1A250 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1983 - 04.1987] AE86..3D..EUR |
81561-1A250 |
US $282.46 |
||
|
81562
|
81562
81556-1A230 Gasket, Rear Combination Lamp Lens, RhREAR COMBINATION LAMP LENS, RH [05.1983 - 07.1987] AE86..3D |
81556-1A230 |
US $12 |
||
|
81564
|
81564
81554-1A230 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [05.1983 - 07.1987] AE86..3D |
81554-1A230 |
US $15.68 |
||
|
81565
|
81565
81555-1A250
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1983 - 04.1987] AE86..3D..EUR |
81555-1A250 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
