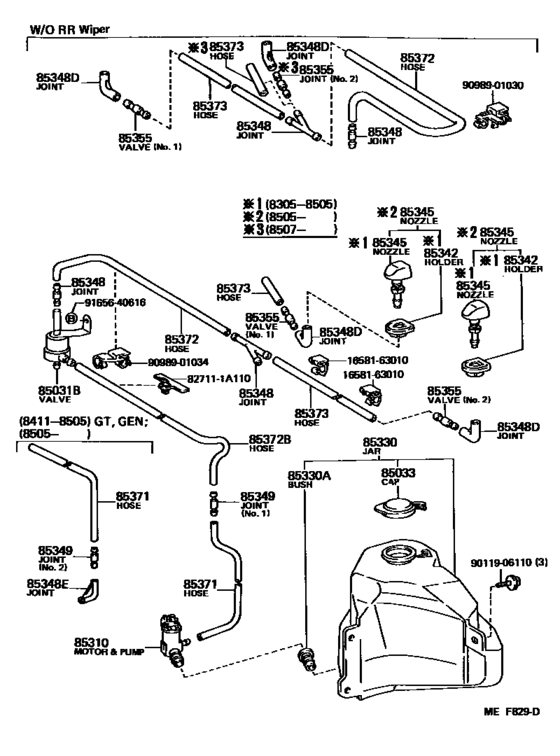

Windshield Washer ([08.1983 - ] W/AIR PRE-CLEANER/HEADLAMP CLEANER (8305- )RHD..SR ; (8308- )RHD..GT) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- General
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 04.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85031-12060
Valve Sub-Assy, Washer
[05.1983 - 09.1983] AE86..3D |
85031-12060 |
— | ||
| replacement | |||||
|
85031B
|
85031B
85031-12110
Valve Sub-Assy, Washer
[05.1983 - 09.1983] AE86..3D |
85031-12110 |
— | ||
|
85031B
|
85031B
85031-12080
Valve Sub-Assy, Washer
[09.1983 - 05.1985] AE86..3D |
85031-12080 |
— | ||
| replacement | |||||
|
85031B
|
85031B
85031-12110
Valve Sub-Assy, Washer
[09.1983 - 05.1985] AE86..3D |
85031-12110 |
— | ||
|
85031B
|
85031B
85031-12110
Valve Sub-Assy, Washer
[05.1985 - 07.1987] AE86..3D |
85031-12110 |
— | ||
|
85033
|
85033
85332-12320 Cap Assy, Windshield Washer[05.1983 - 07.1987] AE86 |
85332-12320 |
US $2.10 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[05.1983 - 07.1987] AE86 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85331-12340
Jar Assy, Windshield Washer
[08.1983 - 04.1987] AE86..RHD..GT..GEN |
85331-12340 |
— | ||
|
85330
|
85330
85331-12350
Jar Assy, Windshield Washer
[08.1983 - 04.1987] AE86..RHD..EUG; AE86..RHD..GT W/*RW |
85331-12350 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1983 - 07.1987] AE86 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1983 - 07.1987] AE86 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1983 - 07.1987] AE86 |
90068-32002 |
US $7.46 |
||
|
85342
|
85342
85342-14010 Holder, Washer Nozzle[05.1983 - 05.1985] AE86 |
85342-14010 |
US $3.84 |
||
|
85345
|
85345
85035-12150
Nozzle, Windshield Washer
[05.1983 - 05.1985] AE86 |
85035-12150 |
— | ||
| replacement | |||||
|
85345
|
85345
85035-12190 Nozzle, Windshield WasherWINDSHIELD WASHER [05.1983 - 05.1985] AE86 |
85035-12190 |
US $10.13 |
||
|
85345
|
85345
85035-12250
Nozzle, Windshield Washer
[05.1985 - 04.1987] AE86..RHD |
85035-12250 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[05.1983 - 05.1985] AE86 3-WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[11.1984 - 07.1985] AE86..3D..RHD..SR..GEN 2-WAY,W/AIR PRE-CLEANER & *RW; AE86..RHD..GT 2-WAY,W/*RW |
85349-89122 |
from US $1.25 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[05.1983 - 07.1985] AE86 2-WAY |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[05.1983 - 07.1985] AE86 2-WAY |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-20070
Joint, Windshield Washer Motor
[05.1983 - 07.1987] AE86 |
85355-20070 |
— | ||
| replacement | |||||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[05.1983 - 07.1987] AE86 |
85355-14481 |
US $0.98 |
||
|
85348E
|
85348E
85355-14481 Joint, Windshield Washer Elbow, No.1[11.1984 - 05.1985] AE86..RHD..(EUR,GEN) |
85355-14481 |
US $0.98 |
||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[11.1984 - 05.1985] AE86..RHD..(EUR,GEN) NO.2 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85355-87201
Joint, Windshield Washer Hose, No.1
[08.1983 - 11.1984] AE86..RHD..GT NO.1 |
85355-87201 |
— | ||
| replacement | |||||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[08.1983 - 11.1984] AE86..RHD..GT NO.1 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85355-89122 Joint, Windshield Washer Hose, No.1[11.1984 - 05.1985] AE86..RHD..GT NO.1 |
85355-89122 |
US $3.06 |
||
| replacement | |||||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[11.1984 - 05.1985] AE86..RHD..GT NO.1 |
85349-89122 |
from US $1.25 |
||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[05.1985 - 07.1985] AE86..RHD..SR NO.1; AE86..LHD NO.1; AE86..3D..RHD NO.1,W/*RW |
85031-12250 |
— | ||
|
85355
|
85355
85031-14080
Joint, Windshield Washer Hose, No.1
[05.1983 - 05.1985] AE86 NO.1 |
85031-14080 |
— | ||
| replacement | |||||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[05.1983 - 05.1985] AE86 NO.1 |
85031-12250 |
— | ||
|
85355
|
85355
85349-89122 Valve Sub-Assy, Washer[11.1984 - 07.1985] AE86..3D..RHD..SR..GEN NO.2,W/AIR PRE-CLE. & *RW; AE86..RHD..GT NO.2,W/*RW |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1984 - 04.1987] AE86..RHD..GT..GEN *H,L=200; AE86..RHD..EUG *H,L=240; AE86..RHD..SR..GEN *H,L=200,W/AIR PRE-CLEANER |
90099-33080 |
from US $6.16 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1983 - 11.1984] AE86..RHD..GT..GEN *H,L=200; AE86..RHD..EUG *H,L=240 |
90446-06013 |
US $0.70 |
||
|
85372
|
85372
90099-33087
Hose, Windshield Washer (From Joint To Joint), No.1
[07.1986 - 04.1987] AE86..3D..RHD *H,L=360,W/*RW |
90099-33087 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.1986 - 04.1987] AE86..3D..RHD *H,L=360,W/*RW |
90099-33080 |
from US $6.16 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1983 - 05.1985] AE86..RHD..GT *H,L=400,W/*RW; AE86..3D..RHD..SR..GEN *H,L=400,W/AIR PRE-CLEANER & *RW |
90099-33299 |
US $4.37 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[07.1985 - 07.1986] AE86..3D..RHD *H,L=40,W/*RW |
90446-06013 |
US $0.70 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1984 - 05.1985] AE86..RHD..GT *H,L=950; AE86..3D..RHD..SR..GEN *H,L=950,W/AIR PRE-CLEANER & *RW |
90099-33080 |
from US $6.16 |
||
|
85372B
|
85372B
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1983 - 11.1984] AE86..RHD..GT *H,L=950 |
90446-06013 |
US $0.70 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1984 - 04.1987] AE86..3D..RHD *H,L=540,W/*RW |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33299 Joint, Windshield Washer Elbow, No.2[07.1985 - 08.1986] AE86..3D..RHD *H,L=400,W/*RW |
90099-33299 |
US $4.37 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[05.1983 - 07.1985] AE86 *H,L=490 |
90446-06013 |
US $0.70 |
||
|
827111A110
|
827111A110
82711-1A110 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A110 |
US $3.85 |
||
|
1658163010
|
1658163010
16581-63010 Clamp, Hose(for Water Hose) |
16581-63010 |
US $4.16 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9098901030
|
9098901030
90989-01030 New Genuine Part |
90989-01030 |
US $5.10 |
||
|
9098901034
|
9098901034
90989-01034
New Genuine Part
|
90989-01034 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
