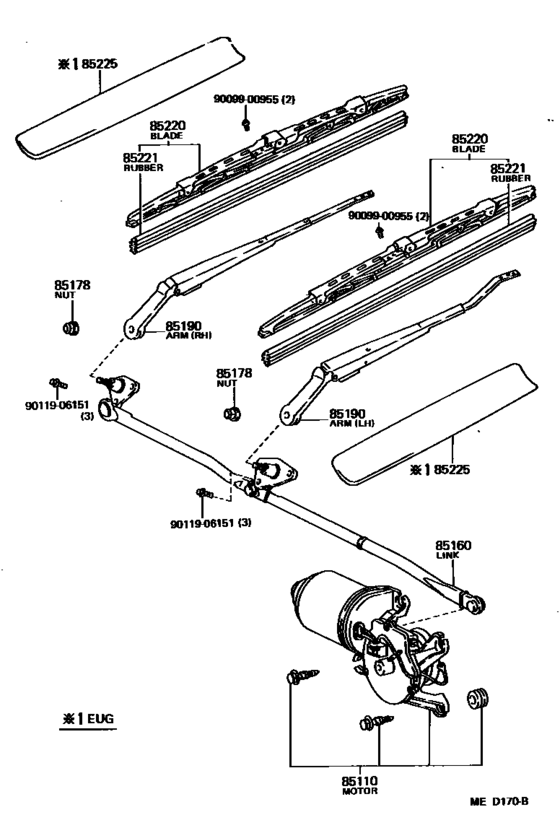

Windshield Wiper ([05.1983 - ] (8305- )RHD) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- General
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 04.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-12290 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 05.1985] AE86..RHD..(ARL,GEN) |
85110-12290 |
US $365.46 |
||
| replacement | |||||
|
85110
|
85110
85110-12551 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 05.1985] AE86..RHD..(ARL,GEN) |
85110-12551 |
US $451.36 |
||
|
85110
|
85110
85110-12540 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1985 - 04.1987] AE86..RHD..GEN |
85110-12540 |
US $366.91 |
||
| replacement | |||||
|
85110
|
85110
85110-12551 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1985 - 04.1987] AE86..RHD..GEN |
85110-12551 |
US $451.36 |
||
|
85160
|
85160
85160-12340 Link Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 04.1987] AE86..RHD..(EUR,GEN) TEMPERED GLASS |
85160-12340 |
US $147.06 |
||
|
85160
|
85160
85160-12350 Link Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 03.1987] AE86..RHD LAMINATED GLASS |
85160-12350 |
US $147.06 |
||
| replacement | |||||
|
85160
|
85160
85160-12351 Link Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 03.1987] AE86..RHD LAMINATED GLASS |
85160-12351 |
US $147.06 |
||
|
85160
|
85160
85160-12351 Link Assy, Windshield WiperWINDSHIELD WIPER [03.1987 - 04.1987] AE86..RHD LAMINATED GLASS |
85160-12351 |
US $147.06 |
||
|
85178
|
85178
90176-08029 Nut (For Front Wiper Arm Setting)[05.1983 - 07.1985] AE86 |
90176-08029 |
US $8.80 |
||
|
85178
|
85178
90176-08033 Nut (For Front Wiper Arm Setting)[07.1985 - 07.1987] AE86 |
90176-08033 |
US $1.60 |
||
|
85190
|
85190
85190-12570 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 04.1987] AE86..RHD..GEN RH,TEMPERED GLASS |
85190-12570 |
US $61.26 |
||
|
85190
|
85190
85190-12580 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 04.1987] AE86..RHD..(ARL,GEN) RH,LAMINATED GLASS |
85190-12580 |
US $54.45 |
||
| replacement | |||||
|
85190
|
85190
85190-12570 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 04.1987] AE86..RHD..(ARL,GEN) RH,LAMINATED GLASS |
85190-12570 |
US $61.26 |
||
|
85190
|
85190
85210-12110 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 04.1987] AE86..RHD..(EUR,GEN) LH,TEMPERED GLASS |
85210-12110 |
US $51.22 |
||
|
85190
|
85190
85210-12120 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 05.1985] AE86..RHD LH,LAMINATED GLASS |
85210-12120 |
US $56.78 |
||
| replacement | |||||
|
85190
|
85190
85210-12220 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 05.1985] AE86..RHD LH,LAMINATED GLASS |
85210-12220 |
US $59.84 |
||
|
85190
|
85190
85210-12220 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1985 - 04.1987] AE86..RHD LH,LAMINATED GLASS |
85210-12220 |
US $59.84 |
||
|
85220
|
85220
85220-12450 Blade Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 04.1987] AE86..RHD LH |
85220-12450 |
US $36.69 |
||
| replacement | |||||
|
85220
|
85220
85222-10220 Blade Assy, Windshield Wiper[05.1983 - 04.1987] AE86..RHD LH |
85222-10220 |
US $34.66 |
||
|
85220
|
85220
85220-32300 Blade Assy, Windshield WiperWINDSHIELD WIPER [05.1983 - 08.1983] AE86..RHD RH |
85220-32300 |
US $47.90 |
||
| replacement | |||||
|
85220
|
85220
85212-23040 Blade Assy, Windshield Wiper[05.1983 - 08.1983] AE86..RHD RH |
85212-23040 |
US $41.95 |
||
|
85220
|
85220
85220-32310
Blade Assy, Windshield Wiper
[08.1983 - 04.1987] AE86..RHD RH |
85220-32310 |
— | ||
| replacement | |||||
|
85220
|
85220
85212-23040 Blade Assy, Windshield Wiper[08.1983 - 04.1987] AE86..RHD RH |
85212-23040 |
US $41.95 |
||
|
85221
|
85221
85221-12230
Blade, Windshield Wiper
[05.1983 - 04.1987] AE86..RHD LH |
85221-12230 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-12H90 Rubber, Blade Wiper[05.1983 - 04.1987] AE86..RHD LH |
85214-12H90 |
from US $8.62 |
||
|
85221
|
85221
85221-30110
Blade, Windshield Wiper
[05.1983 - 04.1987] AE86..RHD RH |
85221-30110 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[05.1983 - 04.1987] AE86..RHD RH |
85214-24H90 |
from US $12.59 |
||
|
9009900955
|
9009900955
90099-00955 New Genuine Part |
90099-00955 |
US $2.88 |
||
|
9011906151
|
9011906151
90119-06151 New Genuine Part |
90119-06151 |
US $3.20 |
||
