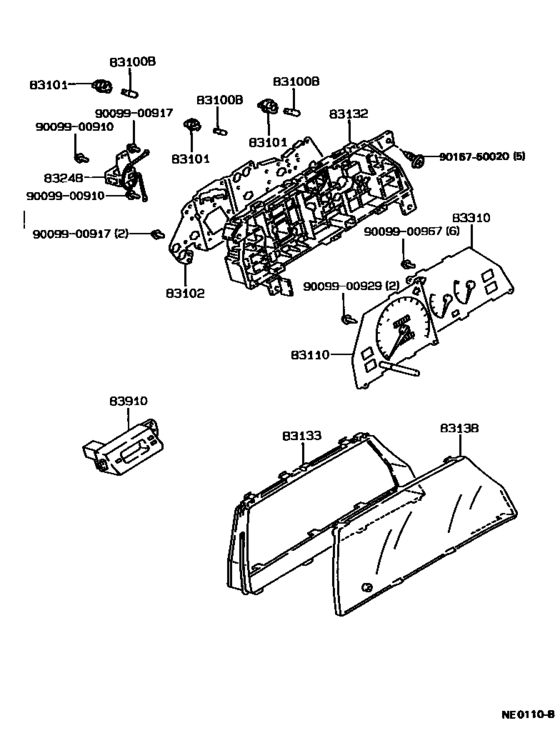

Meter ([05.1987 - ] (8705- )L) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1987 - 06.1991] AE9# １２Ｖ ３．４Ｗ，ブルー キャップ |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1987 - 05.1989] AE91..L １２Ｖ １．２Ｗ ソケット無し; AE91..G １２Ｖ １．２Ｗ ソケット無し; AE92..GTV,GTZ １２Ｖ １．２Ｗ ソケット無し; AE92..GT １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE91..L １２Ｖ ３．４Ｗ; AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE91..L １２Ｖ ３．４Ｗ; AE9#..G,GT,GTAPX,GTV,GTZ,ZI,ZS １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1987 - 06.1991] AE91..L 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1987 - 05.1989] AE91..L 14V 1.4W BULB; AE91..G 14V 1.4W BULB; AE92..GTV,GTZ 14V 1.4W BULB; AE92..GT 14V 1.4W BULB |
83101-14040 |
US $2.93 |
||
|
83102
|
83102
83247-1E020
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 05.1989] AE91..L |
83247-1E020 |
— | ||
|
83110
|
83110
83110-1E140 Speedometer Assy[05.1987 - 05.1989] AE91..L |
83110-1E140 |
US $419.33 |
||
|
83132
|
83132
83132-1A030
Case, Combination Meter
[05.1987 - 05.1989] AE91..L |
83132-1A030 |
— | ||
|
83133
|
83133
83133-1A190
Plate, Combination Meter, No.1
[05.1987 - 05.1989] AE91..L; AE9#..GTAPX,GTV,GTZ,ZI ＮＯ．１; AE91..G NO.1; AE92..GT NO.1 |
83133-1A190 |
— | ||
|
83138
|
83138
83138-12830
Glass, Speedometer
[05.1987 - 05.1989] AE91..L; AE9#..GTAPX,GTV,GTZ,ZI ＮＯ．１; AE91..G NO.1; AE92..GT NO.1 |
83138-12830 |
— | ||
|
83248
|
83248
86640-12110 Chime, Speed Warning[05.1987 - 06.1991] AE9# |
86640-12110 |
US $34.80 |
||
|
83310
|
83310
83243-1A130 Gage Assy, Fuel Receiver[05.1987 - 05.1989] AE91..L |
83243-1A130 |
US $58.68 |
||
|
83910
|
83910
83910-12420 Clock Assy[05.1987 - 06.1991] AE9# |
83910-12420 |
US $413.50 |
||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900967
|
9009900967
90099-00967
New Genuine Part
|
90099-00967 |
— | ||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
