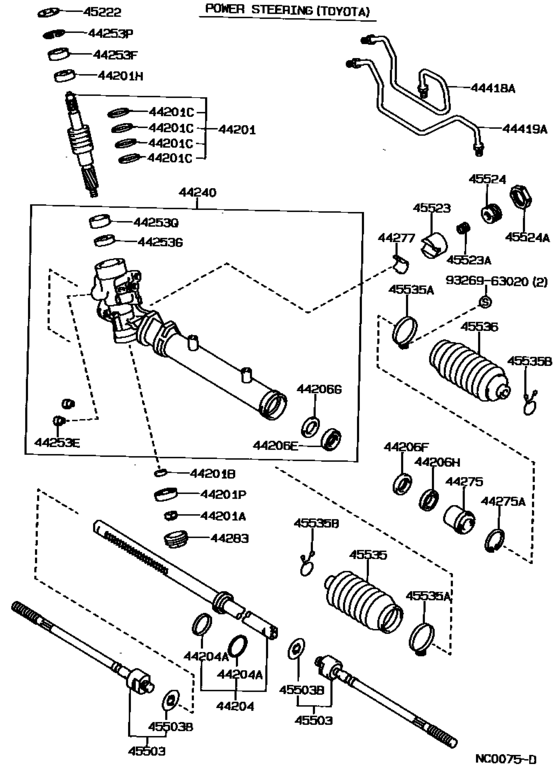

Front Steering Gear & Link ([05.1987 - 07.1987] (8705-8707)CBR) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE91
- ENGINE
- 5AF
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-12130 Valve Sub-Assy, Power Steering Control[05.1987 - 02.1988] AE9#..G,GT,GTV,L,ZI |
44201-12130 |
US $292.66 |
||
|
44201
|
44201
44201-12160 Valve Sub-Assy, Power Steering Control[05.1987 - 07.1987] AE91..CBR |
44201-12160 |
US $292.66 |
||
| replacements | |||||
|
44201
|
44201
44201-12300 Valve Sub-Assy, Power Steering Control[05.1987 - 07.1987] AE91..CBR |
44201-12300 |
US $292.66 |
||
|
44201
|
44201
90179-12098
Nut, Lock(For Power Steering Control Valve)
[05.1987 - 07.1987] AE91..CBR |
90179-12098 |
— | ||
|
44201A
|
44201A
90179-10048 Nut, Lock(For Power Steering Control Valve)[05.1987 - 02.1988] AE9# |
90179-10048 |
US $4.19 |
||
|
44201A
|
44201A
94184-61200 Nut, Lock(For Power Steering Control Valve)[05.1987 - 07.1987] AE91..CBR |
94184-61200 |
from US $1.13 |
||
|
44201B
|
44201B
90560-12030 Spacer(For Power Steering Control Valve)[05.1987 - 07.1987] AE91..CBR |
90560-12030 |
US $4.37 |
||
|
44201C
|
44201C
90562-33001 Ring(For Power Steering Control Valve)[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
90562-33001 |
US $2.18 |
||
| replacement | |||||
|
44201C
|
44201C
90560-33003 Spacer(For Power Steering Control Valve)[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
90560-33003 |
US $1.92 |
||
|
44201C
|
44201C
90562-33002 Ring(For Power Steering Control Valve)[05.1987 - 07.1987] AE91..CBR |
90562-33002 |
US $3.89 |
||
|
44201H
|
44201H
90364-19005
Bearing(For Power Steering Control Valve Upper)
[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
90364-19005 |
— | ||
|
44201H
|
44201H
90369-19005 Bearing(For Power Steering Control Valve Upper)[05.1987 - 07.1987] AE91..CBR |
90369-19005 |
US $44.09 |
||
|
44201P
|
44201P
90363-12006
Bearing(For Power Steering Control Valve Lower)
[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
90363-12006 |
— | ||
|
44201P
|
44201P
90363-12008 Bearing(For Power Steering Control Valve Lower)[05.1987 - 07.1987] AE91..CBR |
90363-12008 |
US $12.58 |
||
|
44204
|
44204
44204-12030 Rack Sub-Assy, Power Steering[05.1987 - 07.1987] AE91..CBR |
44204-12030 |
US $257.71 |
||
| replacement | |||||
|
44204
|
44204
44204-12031 Rack Sub-Assy, Power Steering[05.1987 - 07.1987] AE91..CBR |
44204-12031 |
US $282.46 |
||
|
44204
|
44204
44204-12100 Rack Sub-Assy, Power Steering[05.1987 - 02.1988] AE9#..CBR,EFI |
44204-12100 |
US $205.30 |
||
|
44204A
|
44204A
90301-33003 Ring(For Rack Steering Piston)[05.1987 - 07.1987] AE91..CBR 内側 |
90301-33003 |
US $4.32 |
||
|
44204A
|
44204A
90301-34006
Ring(For Rack Steering Piston)
[05.1987 - 02.1988] AE9# KOYO,INNER |
90301-34006 |
— | ||
|
44204A
|
44204A
90562-37001 Ring(For Rack Steering Piston)[05.1987 - 07.1987] AE91..CBR 外側 |
90562-37001 |
US $4.37 |
||
| replacement | |||||
|
44204A
|
44204A
90562-37004 Ring(For Rack Steering Piston)[05.1987 - 07.1987] AE91..CBR 外側 |
90562-37004 |
US $3.86 |
||
|
44204A
|
44204A
90562-37003 Ring(For Rack Steering Piston)[05.1987 - 02.1988] AE9# KOYO,OUTER |
90562-37003 |
US $1.60 |
||
|
44206E
|
44206E
90310-24007
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[05.1987 - 07.1987] AE91..CBR |
90310-24007 |
— | ||
| replacement | |||||
|
44206E
|
44206E
90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1987 - 07.1987] AE91..CBR |
90310-24012 |
from US $3.04 |
||
|
44206F
|
44206F
90310-24008 Seal, Oil, No.2(For Power Steering Cylinder Tube)[05.1987 - 07.1987] AE91..CBR |
90310-24008 |
US $2.77 |
||
| replacement | |||||
|
44206F
|
44206F
90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1987 - 07.1987] AE91..CBR |
90310-24012 |
from US $3.04 |
||
|
44206G
|
44206G
90560-24005
Spacer, No.1(For Power Steering Cylinder Tube)
[05.1987 - 07.1987] AE91..CBR |
90560-24005 |
— | ||
|
44206H
|
44206H
90560-25007 Spacer, No.2(For Power Steering Cylinder Tube)[05.1987 - 07.1987] AE91..CBR |
90560-25007 |
US $4.08 |
||
|
44240
|
44240
44240-12090
Housing Assy, Power Steering Rack
[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
44240-12090 |
— | ||
| replacements | |||||
|
44240
|
44240
44240-12091
Housing Assy, Power Steering Rack
[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
44240-12091 |
— | ||
|
44240
|
44240
44275-12051
Stopper, Cylinder End
[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
44275-12051 |
— | ||
|
44240
|
44240
45517-12111 Grommet, Steering Rack Housing, No.2[05.1987 - 02.1988] AE9#..G,GT,GTV,GTZ,L,ZI |
45517-12111 |
from US $17.63 |
||
|
44240
|
44240
44240-12100 Housing Assy, Power Steering Rack[05.1987 - 07.1987] AE91..CBR |
44240-12100 |
US $428.06 |
||
| replacements | |||||
|
44240
|
44240
45523-12080 Guide, Rack(For Steering Gear)[05.1987 - 07.1987] AE91..CBR |
45523-12080 |
US $18.54 |
||
|
44240
|
44240
45517-12111 Grommet, Steering Rack Housing, No.2[05.1987 - 07.1987] AE91..CBR |
45517-12111 |
from US $17.63 |
||
|
44240
|
44240
44240-12103 Housing Assy, Power Steering Rack[05.1987 - 07.1987] AE91..CBR |
44240-12103 |
US $428.06 |
||
|
44240
|
44240
44277-12040
Seat, Rack Guide
[05.1987 - 07.1987] AE91..CBR |
44277-12040 |
— | ||
|
44240
|
44240
45524-12041
Cap, Steering Rack Guide Spring
[05.1987 - 07.1987] AE91..CBR |
45524-12041 |
— | ||
|
44253E
|
44253E
90410-06002 Seat, Union(For Power Steering Control Valve)[05.1987 - 07.1987] AE91..CBR |
90410-06002 |
US $3.52 |
||
|
44253F
|
44253F
90311-19007 Seal, Oil(For Power Steering Control Valve)[05.1987 - 07.1987] AE91..CBR |
90311-19007 |
from US $1.97 |
||
|
44253F
|
44253F
90311-24007
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[05.1987 - 02.1988] AE9# |
90311-24007 |
— | ||
| replacement | |||||
|
44253F
|
44253F
90311-24010 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1987 - 02.1988] AE9# |
90311-24010 |
from US $3.52 |
||
|
44253G
|
44253G
90310-23005 Seal, Oil, No.2(For Power Steering Rack Housing)[05.1987 - 07.1987] AE91..CBR |
90310-23005 |
from US $2.72 |
||
|
44253P
|
44253P
90521-41003
Ring, Snap(For Power Steering Control Valve)
[05.1987 - 07.1987] AE91..CBR |
90521-41003 |
— | ||
|
44253Q
|
44253Q
90389-28001 Bush(For Power Steering Rack Housing)[05.1987 - 07.1987] AE91..CBR |
90389-28001 |
US $5.77 |
||
|
44275
|
44275
44275-12020 Stopper, Cylinder End[05.1987 - 07.1987] AE91..CBR |
44275-12020 |
US $10.63 |
||
|
44275
|
44275
44275-12050 Stopper, Cylinder End[05.1987 - 02.1988] AE9# |
44275-12050 |
US $21.99 |
||
|
44275A
|
44275A
90521-50002 Ring, Hole Snap(For Cylinder End Stopper)[05.1987 - 07.1987] AE91..CBR |
90521-50002 |
US $1.22 |
||
|
44277
|
44277
44277-12020 Seat, Rack Guide[05.1987 - 07.1987] AE91..CBR |
44277-12020 |
from US $5.39 |
||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[05.1987 - 07.1987] AE91..CBR |
44283-12010 |
US $10.83 |
||
|
44283
|
44283
44283-16010 Cap, Power Steering Rack Housing[05.1987 - 02.1988] AE9# |
44283-16010 |
US $13.69 |
||
|
44418A
|
44418A
44418-12120 Tube, Steering Right Turn Pressure[05.1987 - 02.1988] AE9# |
44418-12120 |
US $24.02 |
||
|
44418A
|
44418A
44418-12130 Tube, Steering Right Turn Pressure[05.1987 - 07.1987] AE91..CBR |
44418-12130 |
US $11.07 |
||
|
44419A
|
44419A
44419-12110 Tube, Steering Left Turn Pressure[05.1987 - 02.1988] AE9# |
44419-12110 |
US $16.60 |
||
| replacement | |||||
|
44419A
|
44419A
44419-12150 Tube, Steering Left Turn Pressure[05.1987 - 02.1988] AE9# |
44419-12150 |
US $16.16 |
||
|
44419A
|
44419A
44419-12130 Tube, Steering Left Turn Pressure[05.1987 - 07.1987] AE91..CBR |
44419-12130 |
US $17.76 |
||
|
45222
|
45222
45222-12080 Cover, Steering Gear Dust[05.1987 - 02.1988] AE9# |
45222-12080 |
US $6.99 |
||
|
45222
|
45222
45222-12090 Cover, Steering Gear Dust[05.1987 - 07.1987] AE91..CBR |
45222-12090 |
US $3.20 |
||
|
45503
|
45503
45503-19125 End Sub-Assy, Steering Rack[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI |
45503-19125 |
from US $91.73 |
||
|
45503
|
45503
45503-19135 End Sub-Assy, Steering Rack[05.1987 - 02.1988] AE9#..G,GT,GTV,L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45503-19135 |
US $99.16 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[05.1987 - 06.1991] AE9# 外径＝３５．２ |
90214-14009 |
US $3.04 |
||
|
45523
|
45523
45523-12020 Guide, Rack(For Power Steering)[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45523-12020 |
from US $5.82 |
||
|
45523
|
45523
45523-12040 Guide, Rack(For Steering Gear)[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI |
45523-12040 |
from US $6.81 |
||
|
45523
|
45523
45523-16040
Guide, Rack(For Power Steering)
[05.1987 - 02.1988] AE9#..G,GT,GTV,L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45523-16040 |
— | ||
|
45523A
|
45523A
90501-26042 Spring(For Power Steering Rack Guide)[05.1987 - 02.1988] AE9#..G,GT,GTV,L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90501-26042 |
US $2.04 |
||
|
45523A
|
45523A
90501-29016 Spring(For Steering Gear Rack Guide)[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90501-29016 |
US $6.99 |
||
|
45523A
|
45523A
90501-30015
Spring(For Steering Gear Rack Guide)
[05.1987 - 06.1991] AE9#..G,GT,GTV |
90501-30015 |
— | ||
|
45524
|
45524
45524-12010 Cap, Rack Guide Spring(For Power Steering)[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45524-12010 |
US $9.03 |
||
| replacement | |||||
|
45524
|
45524
45524-12041
Cap, Steering Rack Guide Spring
[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45524-12041 |
— | ||
|
45524
|
45524
45524-12030 Cap, Steering Rack Guide Spring[05.1987 - 02.1988] AE9#..G,GT,GTV,L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45524-12030 |
US $7.13 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI |
45524-16010 |
US $8.91 |
||
|
45524A
|
45524A
90179-32001 Nut(For Steering Rack Guide Spring Cap)[05.1987 - 02.1988] AE9#..G,GT,GTV,L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90179-32001 |
US $3.20 |
||
|
45524A
|
45524A
90179-33003
Nut(For Power Steering Rack Guide Cap)
[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90179-33003 |
— | ||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-12011 Boot, Steering Rack, No.1[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI |
45535-12011 |
from US $27.66 |
||
|
45535
|
45535
45535-12040 Boot, Steering Rack No.1(For Power Steering)[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-12040 |
US $13.42 |
||
|
45535
|
45535
45535-12050
Boot, Steering Rack, No.1
[05.1987 - 05.1988] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ); AE92..GT,GTV ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-12050 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-12051 Boot, Steering Rack, No.1[05.1987 - 05.1988] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ); AE92..GT,GTV ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-12051 |
US $25.54 |
||
|
45535A
|
45535A
90460-55009 Clamp(For Steering Rack Boot)[05.1987 - 02.1988] AE9# ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90460-55009 |
US $6.40 |
||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI NO.1 BOOT |
90461-10273 |
from US $4.96 |
||
|
45535A
|
45535A
90949-01081 Clamp(For Power Steering Rack Boot)[05.1987 - 07.1987] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90949-01081 |
US $5.92 |
||
|
45535A
|
45535A
90949-01082 Clamp(For Power Steering Rack Boot)[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI NO.2 BOOT |
90949-01082 |
US $4.96 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[05.1987 - 06.1991] AE9# |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45535-12040 Boot, Steering Rack No.1(For Power Steering)[05.1987 -] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-12040 |
US $13.42 |
||
|
45536
|
45536
45535-12050
Boot, Steering Rack, No.1
[05.1987 - 05.1988] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ); AE92..GT,GTV ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-12050 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-12051 Boot, Steering Rack, No.1[05.1987 - 05.1988] AE91..CBR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ); AE92..GT,GTV ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-12051 |
US $25.54 |
||
|
45536
|
45536
45536-12030 Boot, Steering Rack, No.2[05.1987 - 06.1991] AE91..CBR;AE9#..(G,GT,GTV)..EFI |
45536-12030 |
US $26.94 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
