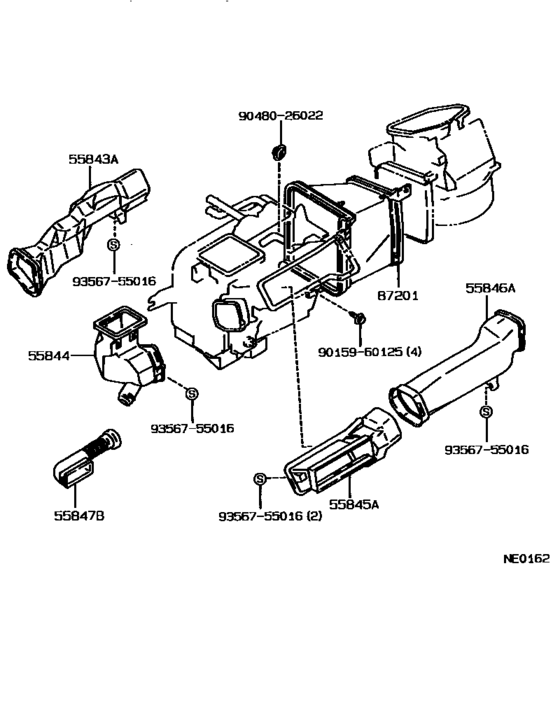

Heating & Air Conditioning - Control & Air Duct ([05.1987 - ] (8705- )LHD..3D,5D) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- SR5
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 07.1992
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-12180 Duct, Heater To Register, No.1HEATER TO REGISTER, NO.1 [05.1987 - 07.1992] AE92,EE90..LHD..(3D,5D) |
55843-12180 |
US $50.52 |
||
|
55844
|
55844
55844-12220 Duct, Heater To Register, No.2HEATER TO REGISTER, NO.2 [05.1987 - 07.1992] AE92,EE90..LHD..(3D,5D) |
55844-12220 |
US $34.65 |
||
|
55844
|
55844
55844-12240 Duct, Heater To Register, No.2HEATER TO REGISTER, NO.2 [05.1987 - 07.1992] AE92,EE90..LHD..(3D,5D) W(AIR CONDITIONER) |
55844-12240 |
US $34.65 |
||
|
55845A
|
55845A
55845-12120 Duct, Heater To Register, No.3HEATER TO REGISTER, NO.3 [05.1987 - 07.1992] AE92,EE90..LHD..(3D,5D) |
55845-12120 |
US $31.60 |
||
|
55846A
|
55846A
55846-12100 Duct, Heater To Register, No.4HEATER TO REGISTER, NO.4 [05.1987 - 07.1992] AE92,EE90..LHD..(3D,5D) |
55846-12100 |
US $46.01 |
||
|
55847B
|
55847B
55847-12071
Duct, Heater To Register, No.5
[08.1989 - 08.1993] AE92,EE90 |
55847-12071 |
— | ||
|
87201
|
87201
87201-12130
Duct Sub-Assy, Air, No.1
[08.1987 - 07.1992] AE92,EE90..GCC |
87201-12130 |
— | ||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
