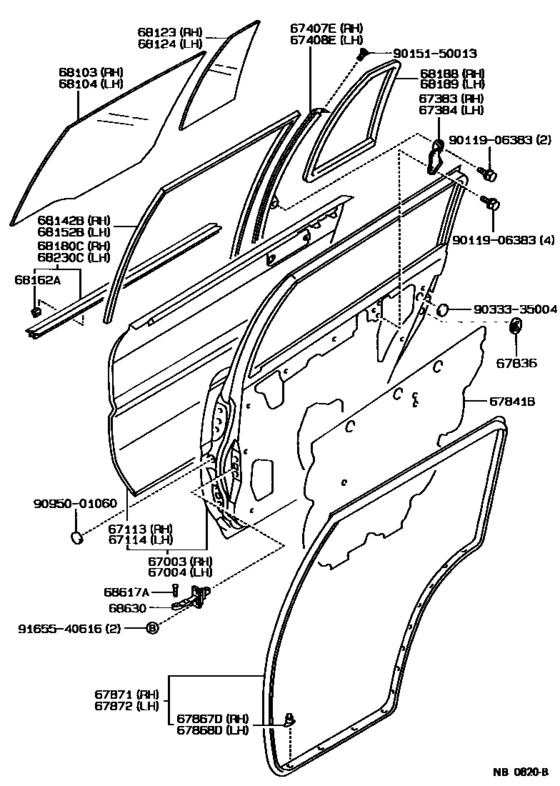

Rear Door Panel & Glass ([05.1987 - ] (8705- )5D) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- SR5
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 07.1992
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-12610
Panel Sub-Assy, Rear Door, Rh
[08.1987 - 07.1992] AE92,EE90..GCC |
67003-12610 |
— | ||
|
67004
|
67004
67004-12610
Panel Sub-Assy, Rear Door, Lh
[08.1987 - 07.1992] AE92,EE90..GCC |
67004-12610 |
— | ||
|
67113
|
67113
67113-12140 Panel, Rear Door, Outer Rh[05.1987 - 07.1992] AE92,EE90..5D..(GCC,GEN) |
67113-12140 |
US $291.20 |
||
|
67114
|
67114
67114-12140 Panel, Rear Door, Outer Lh[05.1987 - 07.1992] AE92,EE90..5D..(GCC,GEN) |
67114-12140 |
US $291.20 |
||
|
67383
|
67383
67383-12030 Bracket, Rear Door Inside Panel, No.2 Rh[05.1987 - 08.1993] AE92,EE90..5D |
67383-12030 |
US $7.43 |
||
|
67384
|
67384
67384-12030 Bracket, Rear Door Inside Panel, No.2 Lh[05.1987 - 08.1993] AE92,EE90..5D |
67384-12030 |
US $7.43 |
||
|
67407E
|
67407E
67407-12160 Bar Sub-Assy, Rear Door Window Division, Rh[05.1987 - 08.1993] AE92,EE90..5D |
67407-12160 |
US $47.47 |
||
|
67408E
|
67408E
67408-12160 Bar Sub-Assy, Rear Door Window Division, Lh[05.1987 - 08.1993] AE92,EE90..5D |
67408-12160 |
US $47.47 |
||
|
67836
|
67836
67836-12030 Cover, Rear Door Lock Child Protection, Rh[08.1987 - 08.1993] AE92,EE90..GCC,SA |
67836-12030 |
US $4.08 |
||
|
67841B
|
67841B
67841-12220
Cover, Rear Door Service Hole
[08.1990 - 07.1992] AE92,EE90..5D..(GCC,GEN) |
67841-12220 |
— | ||
| replacement | |||||
|
67841B
|
67841B
67841-12210
Cover, Rear Door Service Hole
[08.1990 - 07.1992] AE92,EE90..5D..(GCC,GEN) |
67841-12210 |
— | ||
|
67867D
|
67867D
67867-12120 Retainer, Rear Door Weatherstrip, Rh[08.1987 - 08.1993] AE92,EE90..5D |
67867-12120 |
US $2.18 |
||
|
67868D
|
67868D
67868-12070 Retainer, Rear Door Weatherstrip, Lh[08.1987 - 08.1993] AE92,EE90..5D |
67868-12070 |
US $2.18 |
||
|
67871
|
67871
67871-12321
Weatherstrip, Rear Door, Rh
[05.1989 - 08.1993] AE92,EE90..5D |
67871-12321 |
— | ||
|
67872
|
67872
67872-12321 Weatherstrip, Rear Door, Lh[05.1989 - 08.1993] AE92,EE90..5D |
67872-12321 |
US $82.35 |
||
|
68103
|
68103
68113-12260 Glass Sub-Assy, Rear Door, RhREAR DOOR, RH [05.1987 - 08.1993] AE92,EE90..5D..(SR5,STD,XL) *TEM,T=3.5 |
68113-12260 |
US $222.77 |
||
|
68103
|
68103
68113-12270 Glass Sub-Assy, Rear Door, Rh[08.1987 - 07.1992] AE92,EE90..GCC *TT,T=3.5 |
68113-12270 |
US $225.68 |
||
|
68104
|
68104
68114-12260 Glass Sub-Assy, Rear Door, LhREAR DOOR, LH [05.1987 - 08.1993] AE92,EE90..5D..(SR5,STD,XL) *TEM,T=3.5 |
68114-12260 |
US $222.77 |
||
|
68104
|
68104
68114-12270 Glass Sub-Assy, Rear Door, Lh[08.1987 - 07.1992] AE92,EE90..GCC *TT,T=3.5 |
68114-12270 |
US $225.68 |
||
|
68123
|
68123
68123-12450 Glass, Rear Door Window, RhREAR DOOR WINDOW, RH [05.1987 - 08.1993] AE92,EE90..5D..(SR5,STD,XL) *TEM,T=3.5 |
68123-12450 |
US $64.50 |
||
| replacement | |||||
|
68123
|
68123
68123-12460 Glass, Rear Door Window, Rh[05.1987 - 08.1993] AE92,EE90..5D..(SR5,STD,XL) *TEM,T=3.5 |
68123-12460 |
US $66.68 |
||
|
68123
|
68123
68123-12460 Glass, Rear Door Window, Rh[08.1987 - 07.1992] AE92,EE90..GCC *TT,T=3.5 |
68123-12460 |
US $66.68 |
||
|
68124
|
68124
68124-12450 Glass, Rear Door Window, LhREAR DOOR WINDOW, LH [05.1987 - 08.1993] AE92,EE90..5D..(SR5,STD,XL) *TEM,T=3.5 |
68124-12450 |
US $64.65 |
||
| replacement | |||||
|
68124
|
68124
68124-12460 Glass, Rear Door Window, Lh[05.1987 - 08.1993] AE92,EE90..5D..(SR5,STD,XL) *TEM,T=3.5 |
68124-12460 |
US $66.68 |
||
|
68124
|
68124
68124-12460 Glass, Rear Door Window, Lh[08.1987 - 07.1992] AE92,EE90..GCC *TT,T=3.5 |
68124-12460 |
US $66.68 |
||
|
68142B
|
68142B
68142-12140 Run, Rear Door Window, Rh[05.1987 - 08.1993] AE92,EE90..5D |
68142-12140 |
US $41.35 |
||
|
68152B
|
68152B
68152-12060 Run, Rear Door Window, Lh[05.1987 - 08.1993] AE92,EE90..5D |
68152-12060 |
US $41.35 |
||
|
68188
|
68188
68188-12220 Weatherstrip, Rear Door Quarter Window, Rh[08.1989 - 08.1993] AE92,EE90..5D..(GL,GT,SR5,XL) |
68188-12220 |
US $23.88 |
||
|
68189
|
68189
68189-12230 Weatherstrip, Rear Door Quarter Window, Lh[08.1989 - 08.1993] AE92,EE90..5D..(GL,GT,SR5,XL) |
68189-12230 |
US $23.88 |
||
|
68617A
|
68617A
68617-12030 Pin, Front Door Check[08.1989 - 08.1993] AE92,EE90..5D |
68617-12030 |
US $3.67 |
||
|
68630
|
68630
68630-12040 Check Assy, Rear Door[08.1989 - 08.1993] AE92,EE90..5D |
68630-12040 |
US $49.80 |
||
|
9011906383
|
9011906383
90119-06383 New Genuine Part |
90119-06383 |
US $1.60 |
||
| replacement | |||||
|
9011906383
|
9011906383
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9015150013
|
9015150013
90151-50013 New Genuine Part |
90151-50013 |
US $1.92 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
