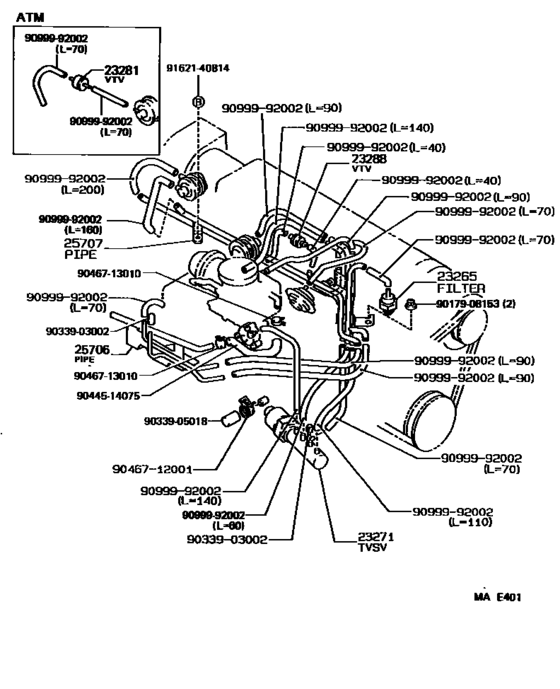

Vacuum Piping ([08.1989 - ] (8908- )4AF..GCC) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- SR5
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 07.1992
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11022 Filter, Gas, No.1[05.1987 - 07.1992] 4AF..AE92..GCC,GEN |
90917-11022 |
US $15.50 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1987 - 08.1993] 4AF..AE92 |
90925-02076 |
— | ||
|
23281
|
23281
90925-01095
Valve, Vacuum Transmitting, No.1
[08.1990 - 07.1992] 4AF..AE92..3FC..GCC |
90925-01095 |
— | ||
|
23288
|
23288
90925-01091 Valve, Vacuum Transmitting, No.1[08.1989 - 07.1992] 4AF..AE92..GCC |
90925-01091 |
US $29.35 |
||
|
25706
|
25706
25706-16320 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [08.1989 - 07.1992] 4AF..AE92..GCC |
25706-16320 |
US $69.31 |
||
|
25707
|
25707
25707-16040 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [10.1989 - 07.1992] 4AF..AE92..GCC |
25707-16040 |
US $75.71 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $2.88 |
||
|
9033905018
|
9033905018
90339-05018 CAP |
90339-05018 |
US $2.56 |
||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.50 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
