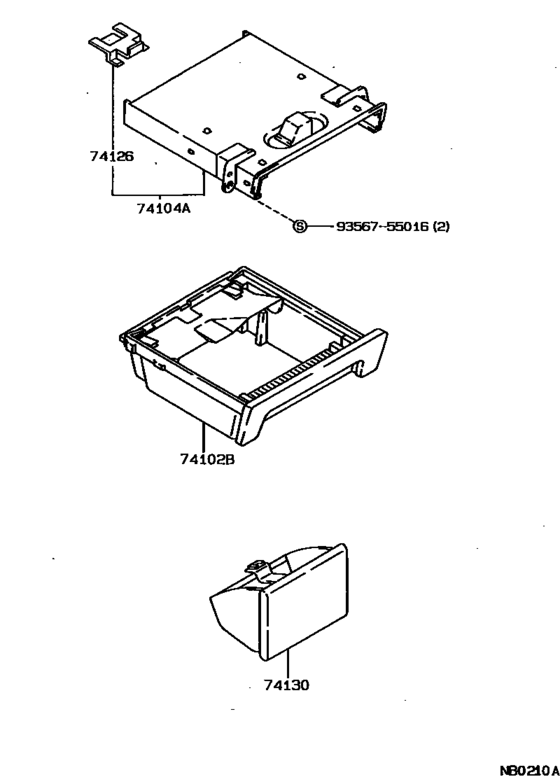

Ash Receptacle ([09.1988 - ] (8809- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74102B
|
74102B
74102-01020-B1
Box Sub-Assy, Front Ash Receptacle
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1# |
74102-01020-B1 |
— | ||
|
74102B
|
74102B
74102-01020-D0
Box Sub-Assy, Front Ash Receptacle
[09.1988 - 09.1992] AE92 MAROON,TRIM3# |
74102-01020-D0 |
— | ||
|
74102B
|
74102B
74102-01020-E0
Box Sub-Assy, Front Ash Receptacle
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4# |
74102-01020-E0 |
— | ||
|
74102B
|
74102B
74102-01020-J0
Box Sub-Assy, Front Ash Receptacle
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8# |
74102-01020-J0 |
— | ||
|
74104A
|
74104A
74104-01020
Retainer Sub-Assy, Front Ash Receptacle
[09.1988 - 09.1992] AE92 |
74104-01020 |
— | ||
|
74126
|
74126
74126-01010 Support, Front Ash Receptacle Ret, No.3[09.1988 - 09.1992] AE92 |
74126-01010 |
US $2.48 |
||
|
74130
|
74130
74109-01010-D0
Receptacle Assy, Rear Ash
[09.1988 - 11.1988] AE92 MAROON,TRIM3# |
74109-01010-D0 |
— | ||
|
74130
|
74130
74109-01010-E0
Receptacle Assy, Rear Ash
[09.1988 - 11.1988] AE92..DX DARK BEIGE,TRIM4# |
74109-01010-E0 |
— | ||
|
74130
|
74130
74109-01010-J0
Receptacle Assy, Rear Ash
[09.1988 - 11.1988] AE92 DARK BLUE,TRIM8# |
74109-01010-J0 |
— | ||
|
74130
|
74130
74109-32010-B1 Receptacle Assy, Rear Ash[11.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*86 & *87 |
74109-32010-B1 |
US $42.22 |
||
| replacement | |||||
|
74130
|
74130
74109-20080-22 Receptacle Assy, Rear Ash (Black)[11.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*86 & *87 |
74109-20080-22 |
US $43.17 |
||
|
74130
|
74130
74109-32010-D0 Receptacle Assy, Rear Ash[11.1988 - 09.1992] AE92 MAROON,TRIM3#,*86 & *87 |
74109-32010-D0 |
US $42.22 |
||
| replacement | |||||
|
74130
|
74130
74109-20080-22 Receptacle Assy, Rear Ash (Black)[11.1988 - 09.1992] AE92 MAROON,TRIM3#,*86 & *87 |
74109-20080-22 |
US $43.17 |
||
|
74130
|
74130
74109-32010-E1 Receptacle Assy, Rear Ash[11.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*86 & *87 |
74109-32010-E1 |
US $42.22 |
||
| replacement | |||||
|
74130
|
74130
74109-20080-22 Receptacle Assy, Rear Ash (Black)[11.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*86 & *87 |
74109-20080-22 |
US $43.17 |
||
|
74130
|
74130
74109-32010-J0 Receptacle Assy, Rear Ash[11.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*86 & *87 |
74109-32010-J0 |
US $42.22 |
||
| replacement | |||||
|
74130
|
74130
74109-20080-22 Receptacle Assy, Rear Ash (Black)[11.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*86 & *87 |
74109-20080-22 |
US $43.17 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
