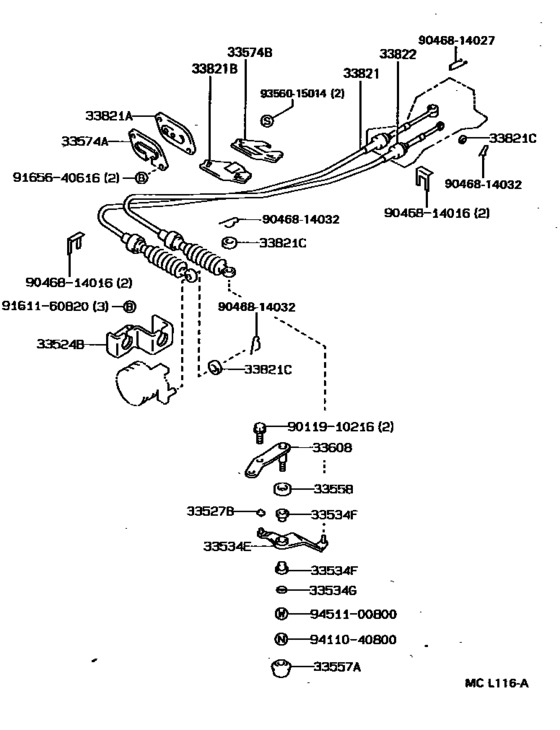

Shift Lever & Retainer ([09.1990 - 09.1991] (9009-9109)5F) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33524B
|
33524B
33524-20010
Bracket, Control Cable
[09.1990 - 08.1993] AE95..5F |
33524-20010 |
— | ||
|
33527B
|
33527B
90389-10009 Bush (For Shift & Select Lever)[09.1990 - 08.1993] AE95..5F |
90389-10009 |
from US $9.92 |
||
|
33534E
|
33534E
33534-12090
Crank, Selecting Bell, No.2
[06.1991 - 08.1993] AE95..5F |
33534-12090 |
— | ||
|
33534E
|
33534E
33534-20020
Crank, Selecting Bell, No.2
[09.1990 - 06.1991] AE95..5F |
33534-20020 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[09.1990 - 08.1993] AE95..5F |
90386-12022 |
US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[09.1990 - 08.1993] AE95..5F |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[09.1990 - 08.1993] AE95..5F |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-12010
Cover, Selecting Bellcrank Dust, No.2
[09.1990 - 08.1993] AE95..5F |
33558-12010 |
— | ||
|
33574A
|
33574A
33574-12080 Retainer, Dust Seal (For Column Shift Control Shaft)[09.1990 - 08.1993] AE95..5F |
33574-12080 |
US $7.16 |
||
|
33574B
|
33574B
33574-12060
Retainer, Shift Cable Grommet, No.2
[09.1990 - 08.1993] AE95..5F |
33574-12060 |
— | ||
|
33608
|
33608
33608-12030
Support Sub-Assy, Selecting Bellcrank
[06.1991 - 08.1993] AE95..5F |
33608-12030 |
— | ||
|
33608
|
33608
33608-20010
Support Sub-Assy, Selecting Bellcrank
[09.1990 - 06.1991] AE95..5F |
33608-20010 |
— | ||
|
33821
|
33821
33821-12282
Cable Transmission Control Shift (For Floor Shift)
[09.1990 - 08.1993] AE95..5F |
33821-12282 |
— | ||
|
33821A
|
33821A
90480-01400 Grommet, No.1 (For Transmission Control Cable)[09.1990 - 08.1993] AE95..5F |
90480-01400 |
US $4.54 |
||
|
33821B
|
33821B
90480-01398
Grommet, No.2 (For Transmission Control Cable)
[09.1990 - 08.1993] AE95..5F |
90480-01398 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[05.1991 - 08.1993] AE95..5F OD=30,TRANSAXLE SIDE |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[09.1990 - 05.1991] AE95..5F OD=28,TRANSAXLE SIDE |
90201-08267 |
from US $0.92 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[09.1990 - 08.1993] AE95..5F SHIFT LEVER SIDE |
90201-10042 |
from US $1.44 |
||
|
33822
|
33822
33822-12131
Cable Transmission Control Select (For Floor Shift)
[09.1990 - 08.1993] AE95..5F |
33822-12131 |
— | ||
|
9011910216
|
9011910216
90119-10216 Bolt (For Control Shaft Cover) |
90119-10216 |
US $2.72 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814027
|
9046814027
90468-14027 CLIP |
90468-14027 |
US $1.49 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
