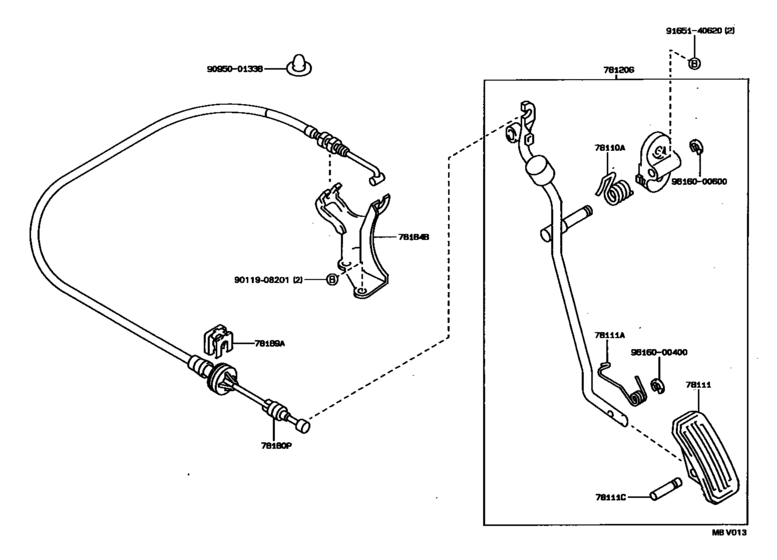

Accelerator Link ([09.1990 - ] (9009- )EFI) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- Europe
- Frame
- AE95
- grade
- XLI
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- EFI
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-18025 Spring (For Accelerator Pedal Rod)[09.1990 - 08.1995] AE95 |
90508-18025 |
US $7.43 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[09.1990 - 08.1995] AE95 |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-20056 Spring (For Accelerator Pedal)[09.1990 - 08.1995] AE95 |
90508-20056 |
US $7.28 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1990 - 08.1995] AE95 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-12120
Rod Assy, Accelerator Pedal
[09.1990 - 08.1995] AE95..LHD |
78120-12120 |
— | ||
|
78180P
|
78180P
78180-1A350 Cable Assy, Accelerator ControlACCELERATOR CONTROL [09.1990 - 08.1995] AE95..EFI |
78180-1A350 |
US $48.34 |
||
|
78184B
|
78184B
78184-12250 Bracket, Accelerator Control CableACCELERATOR CONTROL CABLE [09.1990 - 08.1995] AE95..EFI |
78184-12250 |
US $20.82 |
||
|
78189A
|
78189A
78189-12030
Support, Accelerator Control Cable, No.2
[09.1990 - 08.1995] AE95..LHD |
78189-12030 |
— | ||
|
9011908201
|
9011908201
90119-08201
Bolt (for Transmission Control Cable Bracket)
|
90119-08201 |
— | ||
| replacements | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9011908201
|
9011908201
90119-A0310 Bolt (For Transmission Control Cable Bracket) |
90119-A0310 |
US $1.95 |
||
|
9095001338
|
9095001338
90950-01338 New Genuine Part |
90950-01338 |
US $1.75 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
