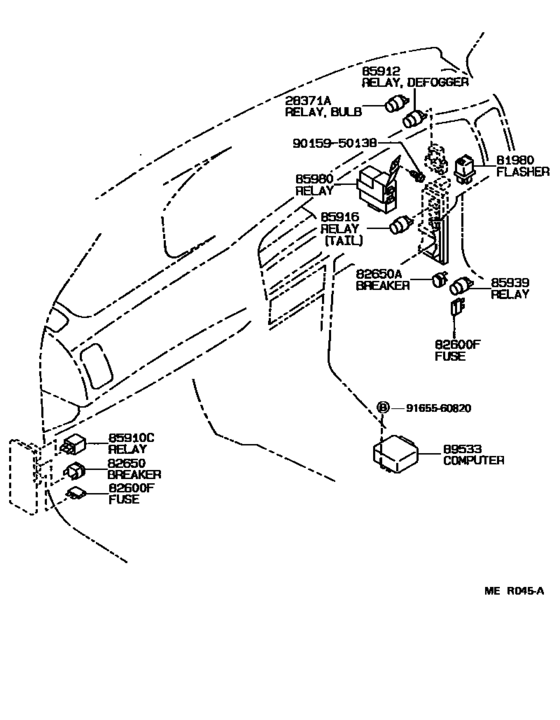

Switch & Relay & Computer ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[09.1990 - 08.1995] AE95 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[09.1990 - 08.1995] AE95 |
81980-32010 |
from US $54.42 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[09.1990 - 08.1995] AE95 30A |
90982-07011 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[09.1990 - 08.1995] AE95 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[09.1990 - 08.1995] AE95..GEN 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[09.1990 - 08.1995] AE95 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[09.1990 - 08.1995] AE95 7.5A |
90982-09005 |
from US $1.03 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[09.1990 - 08.1995] AE95 30A |
82650-20011 |
US $14.08 |
||
|
82650A
|
82650A
82650-20011 Breaker Assy, Wiring Circuit, No.1[09.1990 - 08.1995] AE95..GEN;AE95..SR5 30A |
82650-20011 |
US $14.08 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[09.1990 - 08.1995] AE95 |
90987-04002 |
from US $24.67 |
||
|
85912
|
85912
90987-02002
Relay, Ignition, No.1
[09.1990 - 08.1995] AE95..LHD MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95..LHD MARUKO |
90987-02004 |
from US $28.70 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95..LHD NIPPONDENSO |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[09.1990 - 08.1995] AE95 MARUKO,TAIL |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95 MARUKO,TAIL |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95 NIPPONDENSO,TAIL |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[09.1990 - 08.1995] AE95 HEAD |
90987-02006 |
from US $27.28 |
||
|
85939
|
85939
90987-02002
Relay, Ignition, No.1
[09.1990 - 08.1995] AE95..GEN;AE95..SR5 MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85939
|
85939
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95..GEN;AE95..SR5 MARUKO |
90987-02004 |
from US $28.70 |
||
|
85939
|
85939
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95..GEN;AE95..SR5 NIPPONDENSO |
90987-02004 |
from US $28.70 |
||
|
85980
|
85980
85980-12030 Relay Assy, Door ControlDOOR CONTROL [09.1990 - 08.1995] AE95..LHD |
85980-12030 |
US $345.07 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.03 |
||
