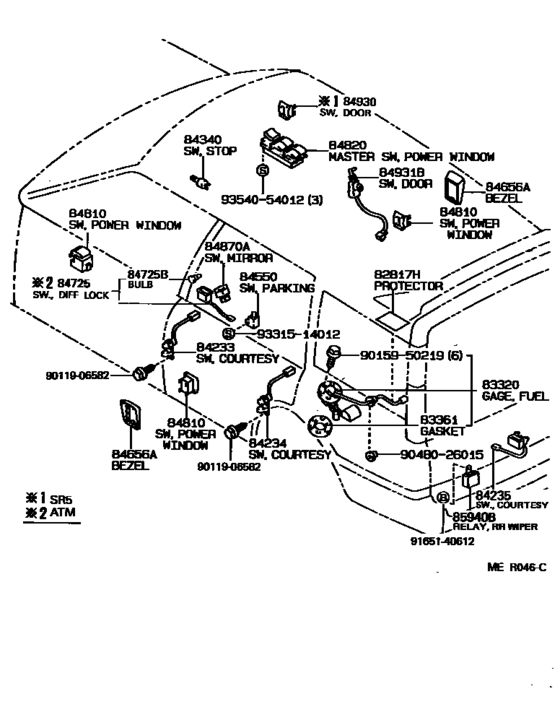

Switch & Relay & Computer ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82817H
|
82817H
82817-12840 Protector, Wiring Harness[09.1990 - 08.1995] AE95 |
82817-12840 |
US $27.96 |
||
| replacement | |||||
|
82817H
|
82817H
82817-30150 Plate, Noise Control, No.3[09.1990 - 08.1995] AE95 |
82817-30150 |
US $12.08 |
||
|
83320
|
83320
83320-80093 Gage Assy, Fuel Sender[09.1990 - 08.1995] AE95..GEN |
83320-80093 |
US $106.29 |
||
|
83361
|
83361
83361-32020 Gasket, Fuel Sender Gage[09.1990 - 08.1995] AE95 |
83361-32020 |
US $3.32 |
||
|
84233
|
84233
84231-12060
Switch Assy, Courtesy Lamp (For Front Door)
[09.1990 - 08.1995] AE95 |
84231-12060 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[09.1990 - 08.1995] AE95 |
84231-12070 |
from US $16.11 |
||
|
84234
|
84234
84231-12060
Switch Assy, Courtesy Lamp (For Front Door)
[09.1990 - 08.1995] AE95 |
84231-12060 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[09.1990 - 08.1995] AE95 |
84231-12070 |
from US $16.11 |
||
|
84235
|
84235
84230-16020 Switch Assy, Courtesy Lamp (For Rear Door)[09.1990 - 08.1995] AE95 |
84230-16020 |
US $15.20 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[09.1990 - 08.1995] AE95 |
84340-32050 |
from US $19.19 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[09.1990 - 08.1995] AE95 |
84550-16060 |
from US $17.48 |
||
|
84656A
|
84656A
84656-12010-B1 Bezel, Switch[09.1990 - 08.1995] AE95..GEN SHADOW GRAY,TRIM1# |
84656-12010-B1 |
US $6.84 |
||
|
84656A
|
84656A
84656-12010-J0 Bezel, Switch[09.1990 - 08.1993] AE95..GEN DARK BLUE,TRIM8# |
84656-12010-J0 |
US $6.84 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12010-B1 Bezel, Switch[09.1990 - 08.1993] AE95..GEN DARK BLUE,TRIM8# |
84656-12010-B1 |
US $6.84 |
||
|
84725
|
84725
84725-13010 Switch, Center Differential LockCENTER DIFFERENTIAL LOCK [09.1990 - 08.1995] AE95..5F |
84725-13010 |
US $14.27 |
||
|
84810
|
84810
84810-12060-B1
Switch Assy, Power Window Regulator
[09.1990 - 08.1995] AE95..GEN SHADOW GRAY,TRIM1#,RR |
84810-12060-B1 |
— | ||
|
84810
|
84810
84810-12060-J0 Switch Assy, Power Window Regulator[09.1990 - 08.1993] AE95..GEN DARK BLUE,TRIM8#,RR |
84810-12060-J0 |
US $47.90 |
||
| replacement | |||||
|
84810
|
84810
84810-12060-B1
Switch Assy, Power Window Regulator
[09.1990 - 08.1993] AE95..GEN DARK BLUE,TRIM8#,RR |
84810-12060-B1 |
— | ||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[09.1990 - 08.1995] AE95..GEN;AE95..SR5 FR |
84810-32070 |
from US $35.72 |
||
|
84820
|
84820
84820-12240 Master Switch Assy, Power Window Regulator[09.1990 - 05.1993] AE95..LHD |
84820-12240 |
US $324.69 |
||
| replacement | |||||
|
84820
|
84820
84820-22290
Master Switch Assy, Power Window Regulator
[09.1990 - 05.1993] AE95..LHD |
84820-22290 |
— | ||
|
84820
|
84820
84820-12241 Master Switch Assy, Power Window Regulator[05.1993 - 08.1995] AE95..LHD |
84820-12241 |
US $324.69 |
||
| replacement | |||||
|
84820
|
84820
84820-12300 Master Switch Assy, Power Window Regulator[05.1993 - 08.1995] AE95..LHD |
84820-12300 |
US $320.32 |
||
|
84930
|
84930
84930-12070-03 Switch Assy, Door Control[09.1990 - 08.1995] AE95..LHD SHADOW GRAY,TRIM1# |
84930-12070-03 |
US $60.72 |
||
|
84930
|
84930
84930-12070-04 Switch Assy, Door ControlDOOR CONTROL [09.1990 - 08.1995] AE95..LHD DARK BLUE,TRIM8# |
84930-12070-04 |
US $60.72 |
||
|
84931B
|
84931B
84931-19015 Switch, Door Control[09.1990 - 08.1995] AE95..GEN |
84931-19015 |
US $51.54 |
||
|
85940B
|
85940B
85940-12030 Relay Assy, Rear Wiper[09.1990 - 01.1993] AE95 |
85940-12030 |
US $160.16 |
||
| replacement | |||||
|
85940B
|
85940B
85940-12031 Relay Assy, Rear Wiper[09.1990 - 01.1993] AE95 |
85940-12031 |
US $160.16 |
||
|
85940B
|
85940B
85940-12031 Relay Assy, Rear Wiper[01.1993 - 08.1995] AE95 |
85940-12031 |
US $160.16 |
||
|
9011906582
|
9011906582
90119-06582 New Genuine Part |
90119-06582 |
US $1.60 |
||
| replacement | |||||
|
9011906582
|
9011906582
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.64 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9048026015
|
9048026015
90480-26015 New Genuine Part |
90480-26015 |
US $4.95 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.80 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
