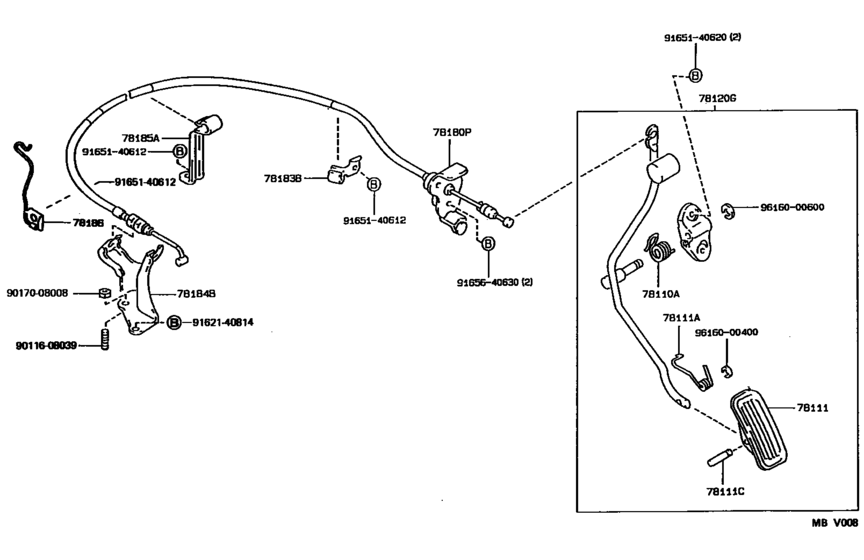

Accelerator Link ([09.1990 - ] (9009- )RHD) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-18025 Spring (For Accelerator Pedal Rod)[09.1990 - 08.1995] AE95 |
90508-18025 |
US $7.43 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[09.1990 - 08.1995] AE95 |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-20056 Spring (For Accelerator Pedal)[09.1990 - 08.1995] AE95 |
90508-20056 |
US $7.28 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1990 - 08.1995] AE95 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-12080
Rod Assy, Accelerator Pedal
[09.1990 - 08.1995] AE95..RHD |
78120-12080 |
— | ||
|
78180P
|
78180P
78180-12781 Cable Assy, Accelerator ControlACCELERATOR CONTROL [09.1990 - 08.1995] AE95..RHD..GEN |
78180-12781 |
US $46.74 |
||
|
78183B
|
78183B
78183-12100 Clamp, Accelerator Control Cable[09.1990 - 08.1995] AE95..RHD |
78183-12100 |
US $11.79 |
||
|
78184B
|
78184B
78184-12230
Bracket, Accelerator Control Cable
[09.1990 - 08.1995] AE95..GEN |
78184-12230 |
— | ||
|
78185A
|
78185A
78183-12140 Clamp, Accelerator Control Cable[09.1990 - 10.1992] AE95..RHD..GEN |
78183-12140 |
US $11.65 |
||
|
78185A
|
78185A
78183-12170 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [10.1992 - 08.1995] AE95..RHD..GEN |
78183-12170 |
US $3.93 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
