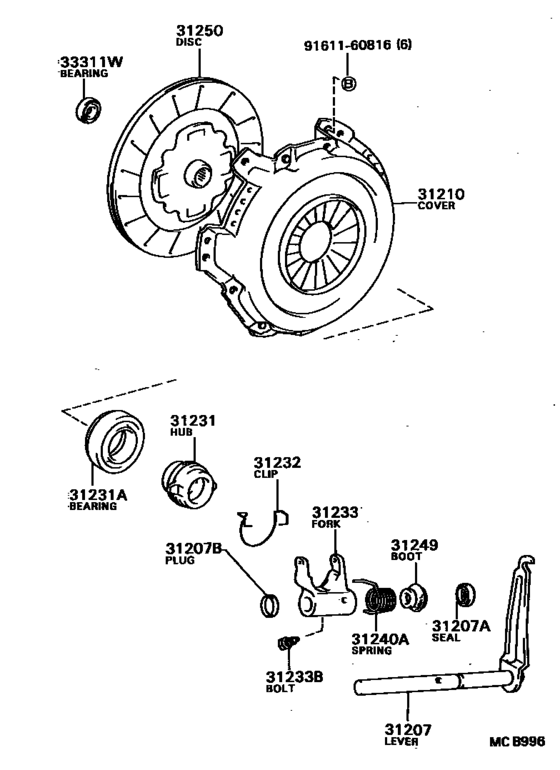

Clutch & Release Fork ([05.1982 - ] (8205- )MTM) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31207
|
31207
31207-16030 Lever Sub-Assy, Clutch Release Fork[05.1982 - 04.1986] AL2#..MTM |
31207-16030 |
US $40.91 |
||
|
31207A
|
31207A
90313-18001
Seal, Oil(For Clutch Release Fork Lever)
[05.1982 - 04.1986] AL2#..MTM |
90313-18001 |
— | ||
|
31207B
|
31207B
96411-12500
Plug, Tight, No.2
[05.1982 - 04.1986] AL2#..MTM |
96411-12500 |
— | ||
| replacement | |||||
|
31207B
|
31207B
96411-42500 Plug, Tight, No.1[05.1982 - 04.1986] AL2#..MTM |
96411-42500 |
from US $2.95 |
||
|
31210
|
31210
31210-16031 Cover Assy, Clutch[09.1983 - 04.1986] AL2#..MTM |
31210-16031 |
US $148.51 |
||
| replacement | |||||
|
31210
|
31210
31210-16112 Cover Assy, Clutch[09.1983 - 04.1986] AL2#..MTM |
31210-16112 |
US $186.37 |
||
|
31231
|
31231
31231-16030
Hub, Clutch Release Bearing
[05.1982 - 04.1986] AL2#..MTM |
31231-16030 |
— | ||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[05.1982 - 04.1986] AL2#..MTM |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-16020
Clip Or Spring, Release Bearing Hub
[05.1982 - 04.1986] AL2#..MTM |
31232-16020 |
— | ||
|
31233
|
31233
31233-16011
Fork, Clutch Release
[05.1982 - 04.1986] AL2#..MTM |
31233-16011 |
— | ||
|
31233B
|
31233B
90109-10079 Bolt(For Release Fork & Release Lever Setting)[04.1984 - 04.1986] AL2#..MTM |
90109-10079 |
US $3.35 |
||
|
31240A
|
31240A
90508-32004 Spring, Tension(For Clutch Release Fork Return)[05.1982 - 04.1986] AL2#..MTM |
90508-32004 |
US $3.35 |
||
|
31249
|
31249
31249-16010 Boot, Clutch Release Fork Shaft[05.1982 - 04.1986] AL2#..MTM |
31249-16010 |
US $5.97 |
||
|
31250
|
31250
31250-16012
Disc Assy, Clutch
[05.1982 - 10.1984] AL2#..MTM |
31250-16012 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12175 Disc Assy, Clutch[05.1982 - 10.1984] AL2#..MTM |
31250-12175 |
from US $122.30 |
||
|
31250
|
31250
31250-16013 Disc Assy, Clutch[10.1984 - 04.1986] AL2#..MTM |
31250-16013 |
US $125.22 |
||
| replacement | |||||
|
31250
|
31250
31250-12175 Disc Assy, Clutch[10.1984 - 04.1986] AL2#..MTM |
31250-12175 |
from US $122.30 |
||
|
33311W
|
33311W
90363-12003 Bearing, Radial Ball(For Crankshaft)[05.1982 - 04.1986] AL2#..MTM |
90363-12003 |
from US $10.56 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
