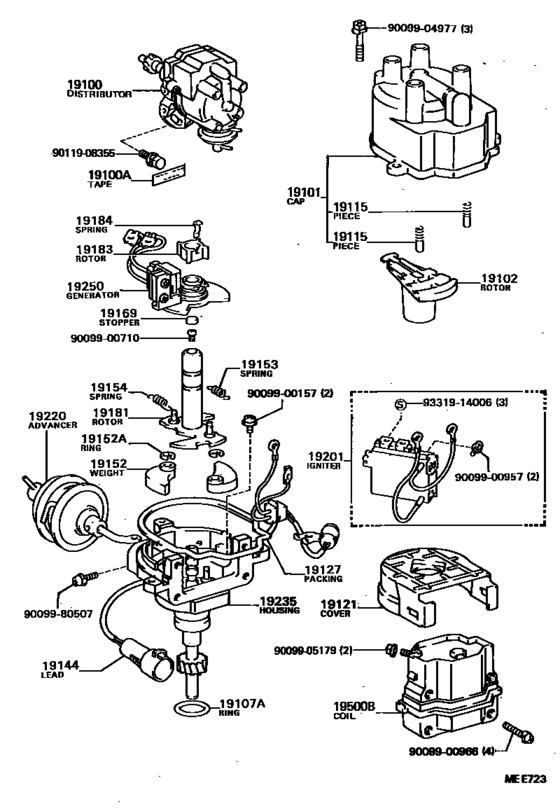

Distributor ([08.1984 - ] (8408- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19020-15070 Distributor Assy[08.1984 - 04.1986] 3ASU..AL21 |
19020-15070 |
US $1,790.88 |
||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[05.1982 - 04.1986] 2AU,3A#..AL2# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[05.1982 - 04.1986] 2AU,3A#..AL2# |
90919-24003 |
— | ||
|
19101
|
19101
19101-11010 Cap Sub-Assy, Distributor[08.1984 - 04.1986] 2AU,3A#..AL2# |
19101-11010 |
US $38.15 |
||
|
19101
|
19101
19101-15090 Cap Sub-Assy, Distributor[05.1982 - 08.1984] 2AU,3A#..AL2# |
19101-15090 |
US $145.60 |
||
|
19102
|
19102
19102-11010 Rotor Sub-Assy, Distributor[08.1984 - 04.1986] 2AU,3A#..AL2# |
19102-11010 |
from US $11.20 |
||
|
19102
|
19102
19102-63010
Rotor Sub-Assy, Distributor
[05.1982 - 08.1984] 2AU,3A#..AL2# |
19102-63010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-73021 Rotor Sub-Assy, Distributor[05.1982 - 08.1984] 2AU,3A#..AL2# |
19102-73021 |
from US $16.50 |
||
|
19107A
|
19107A
96710-04030
Ring, O, Distributor Housing
[05.1982 - 08.1984] 2AU,3A#..AL2# |
96710-04030 |
— | ||
| replacement | |||||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[05.1982 - 08.1984] 2AU,3A#..AL2# |
96711-35030 |
from US $4.48 |
||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[09.1984 - 04.1986] 2AU,3A#..AL2# |
96711-35030 |
from US $4.48 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[08.1983 - 04.1986] 2AU,3A#..AL2# |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11010
Cover, Dust Proof
[08.1984 - 03.1986] 2AU,3A#..AL2# |
19121-11010 |
— | ||
| replacement | |||||
|
19121
|
19121
19121-11080 Cover, Dust Proof[08.1984 - 03.1986] 2AU,3A#..AL2# |
19121-11080 |
from US $4.02 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[03.1986 - 04.1986] 2AU,3A#..AL2# |
19121-11080 |
from US $4.02 |
||
|
19127
|
19127
19127-11010
Packing, Dust Proof
[08.1984 - 04.1986] 2AU,3A#..AL2# |
19127-11010 |
— | ||
|
19127
|
19127
19127-15090
Packing, Dust Proof
[05.1982 - 08.1984] 2AU,3A#..AL2# NO.2 |
19127-15090 |
— | ||
|
19127
|
19127
19127-63020 Packing, Dust Proof[05.1982 - 08.1984] 2AU,3A#..AL2# NO.1 |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-15080
Lead, Distributor Breaker
[08.1985 - 04.1986] 2AU,3A#..AL2# |
19144-15080 |
— | ||
|
19144
|
19144
19144-15161
Lead, Distributor Breaker
[08.1983 - 08.1985] 2AU,3ASU,3AU..AL2# |
19144-15161 |
— | ||
|
19152
|
19152
19152-15160 Weight, Governor[05.1983 - 04.1986] 2AU,3A#..AL2# |
19152-15160 |
US $12.52 |
||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[05.1983 - 04.1986] 2AU,3A#..AL2# |
90099-07122 |
— | ||
|
19153
|
19153
19153-15070 Spring, Governor, A[08.1984 - 04.1986] 3ASU..AL21 |
19153-15070 |
US $5.53 |
||
|
19154
|
19154
19154-15070 Spring, Governor, B[08.1984 - 04.1986] 3ASU..AL21 |
19154-15070 |
US $5.53 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[02.1984 - 04.1986] 2AU,3A#..AL2# |
19169-63011 |
— | ||
|
19181
|
19181
19181-15070
Rotor, Distributor, Signal
[08.1984 - 04.1986] 3ASU..AL21 |
19181-15070 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-11190
Rotor, Distributor, Signal
[08.1984 - 04.1986] 3ASU..AL21 |
19181-11190 |
— | ||
|
19183
|
19183
19183-15010
Rotor, Signal
[05.1982 - 04.1986] 2AU,3ASU,3AU..AL2# |
19183-15010 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[05.1982 - 04.1986] 2AU,3A#..AL2# |
19184-63010 |
— | ||
|
19201
|
19201
89620-10120 Igniter[08.1984 - 04.1986] 2AU,3A#..AL2# |
89620-10120 |
US $342.45 |
||
|
19220
|
19220
19220-15230 Advancer Assy, Vacuum, Distributor[08.1984 - 04.1986] 3ASU..AL21 |
19220-15230 |
US $97.55 |
||
|
19235
|
19235
19235-14040 Housing, Distributor[08.1984 - 04.1986] 2AU,3A#..AL2# |
19235-14040 |
US $190.74 |
||
|
19250
|
19250
19251-15091 Generator Assy, Signal[08.1983 - 04.1986] 2AU,3ASU,3AU..AL2# |
19251-15091 |
US $168.90 |
||
| replacement | |||||
|
19250
|
19250
19251-16100 Generator Assy, Signal[08.1983 - 04.1986] 2AU,3ASU,3AU..AL2# |
19251-16100 |
US $171.23 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[08.1984 - 04.1986] 2AU,3A#..AL2# |
90919-02164 |
from US $117.08 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908355
|
9011908355
90119-08355 Bolt |
90119-08355 |
US $3.04 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
