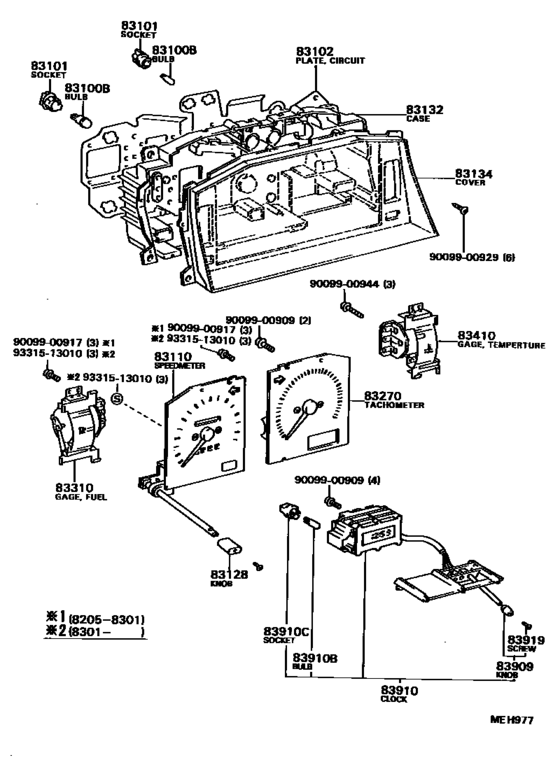

Meter ([05.1982 - ] (8205- )SE,SR) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-14030
Bulb, Combination Meter, No.1
[05.1982 - 04.1986] AL21..SR １２Ｖ ３．４Ｗ，アンバー キャップ,12V 3.4W,W/AMBER CAP |
83109-14030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1982 - 04.1986] AL2# １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1982 - 04.1986] AL2# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1982 - 04.1986] AL2# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1984 - 04.1986] AL2# 12V 3.4W,DENSO |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1982 - 04.1986] AL2# 12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83102
|
83102
83247-16550
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL21..3AHU; AL21..3FC..SE |
83247-16550 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-16570
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL21..3AHU; AL21..3FC..SE |
83247-16570 |
— | ||
|
83102
|
83102
83247-1G370
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1984 - 04.1986] AL21 |
83247-1G370 |
— | ||
|
83110
|
83110
83110-16520 Speedometer Assy[05.1982 - 08.1984] AL21..3AHU |
83110-16520 |
US $390.21 |
||
| replacement | |||||
|
83110
|
83110
83110-16550 Speedometer Assy[05.1982 - 08.1984] AL21..3AHU |
83110-16550 |
US $352.35 |
||
|
83110
|
83110
83110-16680 Speedometer Assy[08.1984 - 04.1986] AL21 |
83110-16680 |
US $368.37 |
||
|
83128
|
83128
83128-16090
Knob, Trip Counter
[05.1982 - 04.1986] AL21..SE,SR |
83128-16090 |
— | ||
|
83132
|
83132
83132-16470
Case, Combination Meter
[05.1982 - 04.1986] AL21..SE,SR |
83132-16470 |
— | ||
|
83134
|
83134
83133-16650
Cover, Combination Meter, No.1
[09.1983 - 08.1984] AL21..SE,SR |
83133-16650 |
— | ||
|
83134
|
83134
83133-16810
Cover, Combination Meter, No.1
[08.1984 - 04.1986] AL21 |
83133-16810 |
— | ||
|
83270
|
83270
83242-16190
Tachometer Assy, Engine
[05.1982 - 08.1984] AL21..3AHU |
83242-16190 |
— | ||
|
83270
|
83270
83242-16330 Tachometer Assy, Engine[08.1984 - 04.1986] AL21..3ASU |
83242-16330 |
US $487.76 |
||
|
83310
|
83310
83243-16430 Gage Assy, Fuel Receiver[05.1982 - 08.1984] AL21..3AHU |
83243-16430 |
US $58.53 |
||
|
83310
|
83310
83243-16490 Gage Assy, Fuel Receiver[08.1984 - 04.1986] AL21 |
83243-16490 |
US $74.26 |
||
|
83410
|
83410
83244-16410 Gage Assy, Water Temperature Receiver[05.1982 - 08.1984] AL21..3AHU |
83244-16410 |
US $58.53 |
||
|
83410
|
83410
83244-16470 Gage Assy, Water Temperature Receiver[08.1984 - 04.1986] AL21 |
83244-16470 |
US $58.53 |
||
|
83909
|
83909
83909-16050 Knob, Clock[05.1982 - 04.1986] AL21..SE,SR DIGITAL |
83909-16050 |
US $4.37 |
||
|
83910
|
83910
83910-16111 Clock Assy[01.1983 - 04.1986] AL21..SR DIGITAL |
83910-16111 |
US $430.98 |
||
|
83910B
|
83910B
84999-50030 Bulb, Clock Indicator[01.1983 - 04.1986] AL21..SE,SR １２Ｖ ３．８Ｗ,12V 3.8W |
84999-50030 |
US $5.97 |
||
|
83910C
|
83910C
84999-50110 Socket, Indicator Lamp[01.1983 - 04.1986] AL21..SE,SR |
84999-50110 |
US $7.57 |
||
|
83919
|
83919
83919-12230 Screw, Clock[05.1982 - 04.1986] AL21..SE,SR DIGITAL |
83919-12230 |
US $1.92 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900944
|
9009900944
90099-00944
New Genuine Part
|
90099-00944 |
— | ||
|
9331513010
|
9331513010
93315-13010 New Genuine Part |
93315-13010 |
US $1.44 |
||
