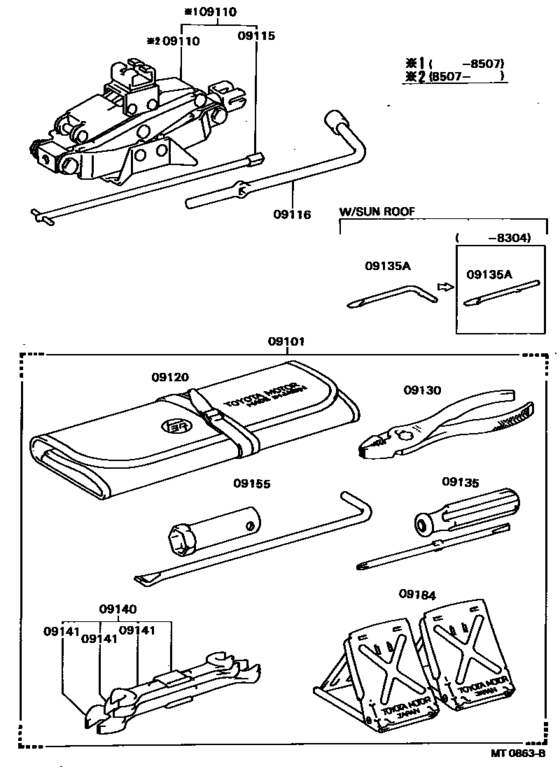

Standard Tool ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09101
|
09101
09102-12074
Tool Set, Standard W/o Jack
[05.1982 - 04.1986] AL2# |
09102-12074 |
— | ||
|
09110
|
09110
09111-12070
Jack Assy
[07.1985 - 04.1986] AL2# |
09111-12070 |
— | ||
| replacements | |||||
|
09110
|
09110
09111-20101 Jack Assy[07.1985 - 04.1986] AL2# |
09111-20101 |
US $52.42 |
||
|
09110
|
09110
09113-32010
Handle, Jack
[07.1985 - 04.1986] AL2# |
09113-32010 |
— | ||
|
09110
|
09110
09118-12021 Jack Assy[12.1982 - 07.1985] AL2# |
09118-12021 |
US $54.60 |
||
| replacements | |||||
|
09110
|
09110
09111-20101 Jack Assy[12.1982 - 07.1985] AL2# |
09111-20101 |
US $52.42 |
||
|
09110
|
09110
09113-32010
Handle, Jack
[12.1982 - 07.1985] AL2# |
09113-32010 |
— | ||
|
09115
|
09115
09115-32010
Rod Sub-Assy, Jack Handle
[12.1983 - 04.1986] AL2# |
09115-32010 |
— | ||
|
09116
|
09116
09116-16010
Lever, Jack Handle
[05.1982 - 04.1986] AL2# |
09116-16010 |
— | ||
|
09120
|
09120
09120-12011 Bag, Tool (Black)[05.1982 - 04.1986] AL2# |
09120-12011 |
from US $10.40 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [05.1982 - 04.1986] AL2# |
99913-11500 |
from US $6.40 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [05.1982 - 04.1986] AL2# |
99915-10700 |
US $7.36 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [05.1982 - 04.1986] AL2# |
90089-99009 |
from US $2.26 |
||
|
09135A
|
09135A
09135-00012 Bit, Screw Driver[04.1983 - 04.1986] AL21..SE,SR W/SUN ROOF |
09135-00012 |
US $3.14 |
||
|
09140
|
09140
09140-12011
Spanner Set
[05.1982 - 04.1986] AL2# |
09140-12011 |
— | ||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [05.1982 - 04.1986] AL2# ８ Ｘ １０,8X10 |
99914-10810 |
from US $3.84 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [05.1982 - 04.1986] AL2# ８ Ｘ １０,8X10 |
09141-0K030 |
from US $6.99 |
||
|
09141
|
09141
99914-11012 Spanner (No Toyota)(China) [05.1982 - 04.1986] AL2# １０ Ｘ １２,10X12 |
99914-11012 |
US $4.72 |
||
|
09141
|
09141
99914-11417 Spanner (No Toyota)(Made in China) [05.1982 - 04.1986] AL2# １４ Ｘ １７,14X17 |
99914-11417 |
US $6.12 |
||
|
09155
|
09155
09155-44020
Wrench, Spark Plug
[05.1982 - 04.1986] AL2# |
09155-44020 |
— | ||
|
09184
|
09184
09184-00010 Stopper, Wheel[05.1982 - 04.1986] AL2# |
09184-00010 |
US $12.32 |
||
