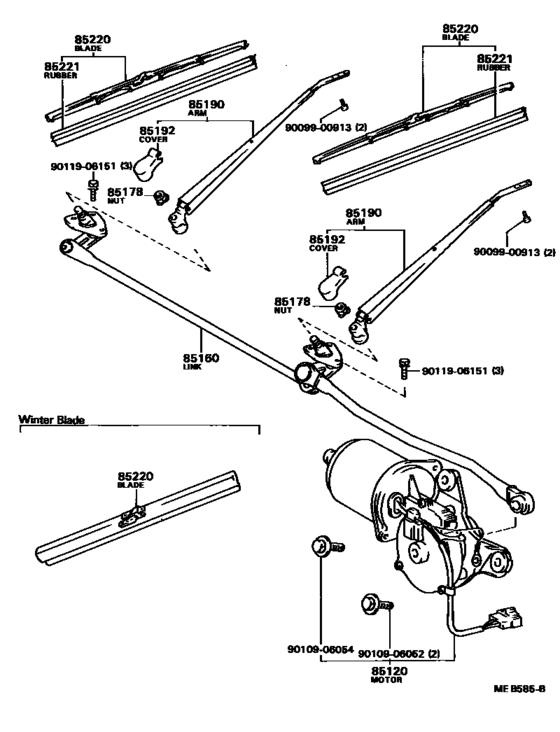

Windshield Wiper ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85120
|
85120
85120-16080 Motor And Bracket Assy, Windshield Wiper[05.1982 - 04.1986] AL21..SE,SR |
85120-16080 |
US $404.77 |
||
|
85160
|
85160
85160-16120 Link Assy, Windshield Wiper[05.1982 - 04.1986] AL2# |
85160-16120 |
US $149.97 |
||
|
85178
|
85178
90176-08016 Cap Nut (For Front Wiper Arm Setting)[05.1982 - 04.1986] AL2# |
90176-08016 |
from US $1.85 |
||
|
85190
|
85190
85190-16070
Arm Assy, Windshield Wiper
[05.1982 - 04.1986] AL2# RH |
85190-16070 |
— | ||
|
85190
|
85190
85210-16010
Arm Assy, Windshield Wiper
[05.1982 - 04.1986] AL2# LH |
85210-16010 |
— | ||
|
85192
|
85192
85192-16010
Cover, Windshield Wiper Arm
[05.1982 - 04.1986] AL2# |
85192-16010 |
— | ||
|
85220
|
85220
85220-16320
Blade Assy, Windshield Wiper
[08.1983 - 04.1986] AL2# LH |
85220-16320 |
— | ||
| replacement | |||||
|
85220
|
85220
85222-12700 Blade Assy, Windshield Wiper[08.1983 - 04.1986] AL2# LH |
85222-12700 |
US $24.98 |
||
|
85220
|
85220
85220-16350
Blade Assy, Windshield Wiper
[08.1983 - 04.1986] AL2# RH |
85220-16350 |
— | ||
|
85220
|
85220
85220-24040
Blade Assy, Windshield Wiper
[05.1982 - 04.1986] AL2# WINTER BLADE |
85220-24040 |
— | ||
| replacement | |||||
|
85220
|
85220
85291-24010 Blade Assy, Windshield Wiper[05.1982 - 04.1986] AL2# WINTER BLADE |
85291-24010 |
US $47.90 |
||
|
85221
|
85221
85221-30120
Blade, Windshield Wiper
[08.1983 - 04.1986] AL2# |
85221-30120 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[08.1983 - 04.1986] AL2# |
85214-24H90 |
from US $12.59 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
from US $2.48 |
||
|
9010906052
|
9010906052
90109-06052 New Genuine Part |
90109-06052 |
US $4.51 |
||
|
9010906054
|
9010906054
90109-06054 New Genuine Part |
90109-06054 |
US $4.51 |
||
|
9011906151
|
9011906151
90119-06151 New Genuine Part |
90119-06151 |
US $3.20 |
||
