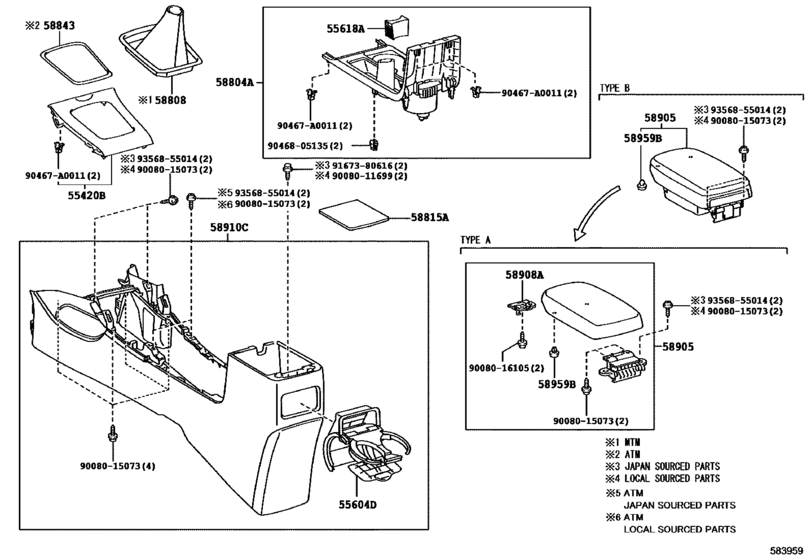

Console Box & Bracket ([12.2010 - ] (1012- )NAP) Diagram Toyota COROLLA
- Year
- 2008 - 2012
- Sales region
- U.S.A.
- Frame
- AZE141
- grade
- XRS
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA (NAP/SED/LB)
- From
- 01.2008
- To
- 08.2012
- Gear Shift Type
- 5FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55420B
|
55420B
55420-02400
Panel Assy, Instrument Cluster Finish, Center No.1
[01.2008 - 12.2010] AZE141..NAP |
55420-02400 |
— | ||
|
55420B
|
55420B
55420-02590
Panel Assy, Instrument Cluster Finish, Center No.1
[12.2010 -] AZE141..NAP;ZRE142..NAP..S..USA |
55420-02590 |
— | ||
|
55604D
|
55604D
55604-02050-B0
Holder Sub-Assy, Instrument Panel Cup
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
55604-02050-B0 |
— | ||
|
55618A
|
55618A
55618-02180-B0
Holder, Console Box Cup
[12.2010 - 08.2013] ZRE142..NAP..LE DK.GRAY,TRIM18; AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
55618-02180-B0 |
— | ||
|
58804A
|
58804A
58804-02040-B0
Panel Sub-Assy, Console, Upper
[12.2010 - 08.2013] ZRE142..NAP..LE DK.GRAY,TRIM18; AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
58804-02040-B0 |
— | ||
|
58804A
|
58804A
58804-02080-B0
Panel Sub-Assy, Console, Upper
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
58804-02080-B0 |
— | ||
|
58815A
|
58815A
58815-02130
Carpet, Console Box
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58815-02130 |
— | ||
|
58815A
|
58815A
58815-02260
Carpet, Console Box
[12.2010 -] AZE141,ZRE142..NAP |
58815-02260 |
— | ||
|
58843
|
58843
58843-02090
Bezel, Shifting Hole
[12.2010 -] ZRE142..NAP..4FC..S..USA;AZE141,ZRE142..NAP..ATM..(LE,XRS) |
58843-02090 |
— | ||
|
58843
|
58843
58843-02100
Bezel, Shifting Hole
[01.2008 - 12.2010] AZE141..NAP..5FC |
58843-02100 |
— | ||
|
58905
|
58905
58905-02460-B0
Door Sub-Assy, Console Compartment
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1#,TYPE A:REFER ILLUST. |
58905-02460-B0 |
— | ||
|
58905
|
58905
58905-02480-B2
Door Sub-Assy, Console Compartment
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) LEATHER PACKAGE,DARK GREY,TRIM1#,TYPE B:REFER ILLUST. |
58905-02480-B2 |
— | ||
|
58908A
|
58908A
58908-33030 Lock Sub-Assy, Console Compartment Door[01.2008 - 12.2010] AZE141,ZRE142..NAP..(CE,S,STD,XRS) |
58908-33030 |
from US $11.36 |
||
|
58910C
|
58910C
58910-02120-B0
Box Assy, Console, Rear
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
58910-02120-B0 |
— | ||
|
58910C
|
58910C
58910-02340-B0
Box Assy, Console, Rear
[12.2010 - 08.2013] ZRE142..NAP..LE DK.GRAY,TRIM18; AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
58910-02340-B0 |
— | ||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58959-60060 |
from US $1.44 |
||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9008016105
|
9008016105
90080-16105
SCREW PAN TAPPING
|
90080-16105 |
— | ||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
