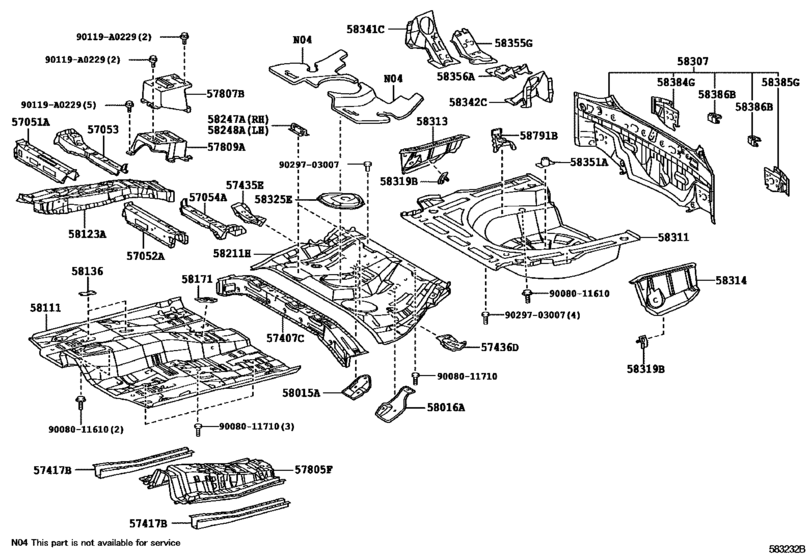

Floor Pan & Lower Back Panel ([01.2008 - ] (0801- )NAP) Diagram Toyota COROLLA
- Year
- 2008 - 2012
- Sales region
- U.S.A.
- Frame
- AZE141
- grade
- XRS
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA (NAP/SED/LB)
- From
- 01.2008
- To
- 08.2012
- Gear Shift Type
- 5FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-02020
Member Sub-Assy, Front Floor Cross, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57051-02020 |
— | ||
|
57052A
|
57052A
57052-02020
Member Sub-Assy, Front Floor Cross, Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57052-02020 |
— | ||
|
57053
|
57053
57053-02020
Reinforcement Sub-Assy, Front Floor Cross Member, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57053-02020 |
— | ||
|
57054A
|
57054A
57054-02020
Reinforcement Sub-Assy, Front Floor Cross Member, Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57054-02020 |
— | ||
|
57407C
|
57407C
57407-02120
Member Sub-Assy, Center Floor Cross, No.1
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57407-02120 |
— | ||
|
57417B
|
57417B
57417-02090
Reinforcement, Front Floor Under
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57417-02090 |
— | ||
| replacement | |||||
|
57417B
|
57417B
57417-12120 Reinforcement, Front Floor Under[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57417-12120 |
US $61.15 |
||
|
57417B
|
57417B
57417-12120 Reinforcement, Front Floor Under[05.2012 -] AZE141,ZRE142..NAP |
57417-12120 |
US $61.15 |
||
|
57435E
|
57435E
57435-02030
Member, Center Floor Side, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57435-02030 |
— | ||
|
57436D
|
57436D
57436-02030
Member, Center Floor Side, Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57436-02030 |
— | ||
|
57805F
|
57805F
57805-02040
Reinforcement Sub-Assy, Belt Anchor, No.1
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57805-02040 |
— | ||
|
57807B
|
57807B
57807-02020
Reinforcement Sub-Assy, Belt Anchor, No.2
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57807-02020 |
— | ||
|
57809A
|
57809A
57809-02010
Reinforcement Sub-Assy, Belt Anchor, No.3
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
57809-02010 |
— | ||
|
58015A
|
58015A
58015-02070
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58015-02070 |
— | ||
|
58016A
|
58016A
58016-02070
Reinforce Sub-Assy, Belt Anchor, No.3 Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58016-02070 |
— | ||
|
58111
|
58111
58111-02920
Pan, Front Floor
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58111-02920 |
— | ||
|
58123A
|
58123A
58013-02110
Support, Shift & Select Lever
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58013-02110 |
— | ||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58176-02020
Reinforcement, Parking Brake Base
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58176-02020 |
— | ||
|
58211H
|
58211H
58211-02270
Pan, Center Floor
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58211-02270 |
— | ||
|
58247A
|
58247A
58247-02060
Reinforcement, Rear Seat Cushion Hinge, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58247-02060 |
— | ||
|
58248A
|
58248A
58247-02060
Reinforcement, Rear Seat Cushion Hinge, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58247-02060 |
— | ||
|
58307
|
58307
58307-02190
Panel Sub-Assy, Body Lower Back
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58307-02190 |
— | ||
|
58307
|
58307
58307-02290
Panel Sub-Assy, Body Lower Back
[12.2010 -] AZE141,ZRE142..NAP |
58307-02290 |
— | ||
|
58311
|
58311
58311-02904
Pan, Rear Floor
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58311-02904 |
— | ||
|
58313
|
58313
58313-02040
Panel, Rear Floor Side, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58313-02040 |
— | ||
|
58314
|
58314
58314-02040
Panel, Rear Floor Side, Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58314-02040 |
— | ||
|
58319B
|
58319B
58319-02010
Bracket, Rear Floor Side Panel
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58319-02010 |
— | ||
|
58325E
|
58325E
58325-02110
Cover, Rear Floor Service Hole
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58325-02110 |
— | ||
|
58341C
|
58341C
58341-02030
Bracket, Rear Absorber Mounting, No.1 Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58341-02030 |
— | ||
|
58342C
|
58342C
58342-02030
Bracket, Rear Absorber Mounting, No.1 Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58342-02030 |
— | ||
|
58351A
|
58351A
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58351-33010 |
US $6.56 |
||
|
58355G
|
58355G
58355-02010
Reinforcement, Floor Side Plate, Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58355-02010 |
— | ||
|
58356A
|
58356A
58356-02010
Reinforcement, Floor Side Plate, Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58356-02010 |
— | ||
|
58384G
|
58384G
58384-02100
Gusset, Lower Back, Upper Rh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58384-02100 |
— | ||
|
58385G
|
58385G
58385-02090
Gusset, Lower Back, Upper Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58385-02090 |
— | ||
|
58386B
|
58386B
58386-02030
Bracket, Rear Bumper Cover, No.2
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58386-02030 |
— | ||
|
58791B
|
58791B
58791-02010
Carrier, Jack
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
58791-02010 |
— | ||
|
90119A0229
|
90119A0229
90119-A0229
New Genuine Part
|
90119-A0229 |
— | ||
|
9008011610
|
9008011610
90080-11610
Bolt, Weld(For Front Floor Pan)
|
90080-11610 |
— | ||
|
9008011710
|
9008011710
90080-11710
New Genuine Part
|
90080-11710 |
— | ||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
