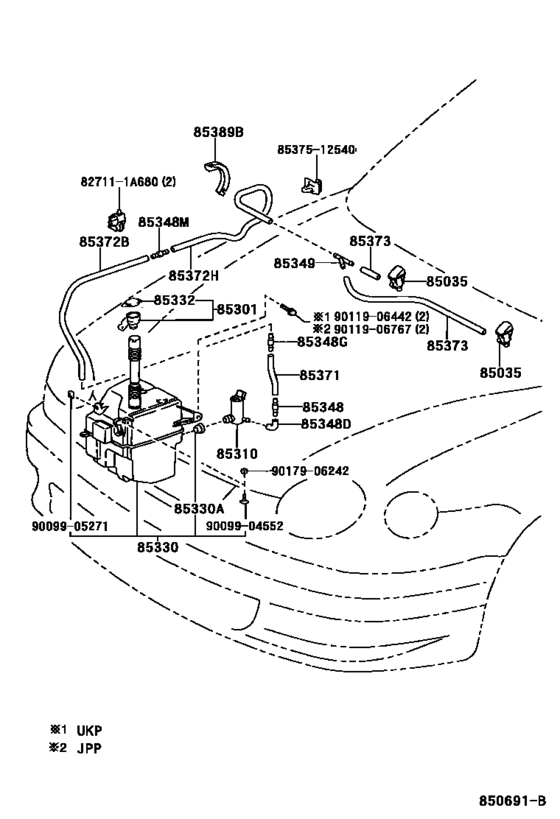

Windshield Washer ([10.1999 - ] W(HEADLAMP CLEANER) (9910- )JPP..LHD ; (9911- )UKP..LHD) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[01.2000 - 09.2001] CDE110,WZE110..JPP;ZZE112..RHD..HB..4FC |
85381-12050 |
from US $17.20 |
||
| replacement | |||||
|
85035
|
85035
85381200201
Nozzle Fr Washer Rh
[01.2000 - 09.2001] CDE110,WZE110..JPP;ZZE112..RHD..HB..4FC |
85381200201 |
— | ||
|
85301
|
85301
85301-12010
Inlet Sub-Assy, Washer
[10.1999 - 11.2001] CDE110,WZE110,ZZE11#..LHD |
85301-12010 |
— | ||
|
85310
|
85310
85330-44010
Motor And Pump Assy, Windshield Washer
[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP |
85330-44010 |
— | ||
|
85330
|
85330
85315-12221 Jar Assy, Windshield Washer[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP |
85315-12221 |
from US $28.51 |
||
|
85330
|
85330
85315-12430
Jar Assy, Windshield Washer
[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP..LHD W(HEADLAMP CLEANER) |
85315-12430 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-12221
Cap, Windshield Washer Jar
[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP |
85316-12221 |
— | ||
|
85332
|
85332
85316-42011 Cap, Washer, Inlet[10.1999 - 11.2001] CDE110,WZE110,ZZE11#..LHD W(HEADLAMP CLEANER) |
85316-42011 |
from US $2.10 |
||
|
85348
|
85348
85334-22480 Joint, Windshield Washer Hose, No.1[10.1999 - 09.2001] ZZE11#..JPP..RHD;CDE110,WZE110..JPP |
85334-22480 |
from US $1.40 |
||
|
85348D
|
85348D
85336-12410
Joint, Windshield Washer Elbow, No.1
[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP |
85336-12410 |
— | ||
|
85348D
|
85348D
85355-32110 Joint, Windshield Washer Elbow, No.1[10.1999 - 11.2001] CDE110,WZE110,ZZE11#..LHD W(HEADLAMP CLEANER) |
85355-32110 |
from US $1.40 |
||
|
85348G
|
85348G
85319-12410
Joint, Windshield Washer Hose, No.2
[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
85319-12410 |
— | ||
|
85348M
|
85348M
85334-22470 Joint, Windshield Washer Hose, No.1[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
85334-22470 |
US $0.84 |
||
|
85349
|
85349
85348-14390 Joint, Windshield Washer Hose, No.1[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
85348-14390 |
from US $1.40 |
||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..JPP *H,L=95; ZZE11#..JPP..LHD *H,L=105,W(HEADLAMP CLEANER) |
90099-33075 |
from US $6.57 |
||
|
85372B
|
85372B
90099-33712
Hose, Windshield Washer (From Motor To Joint)
[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP *H,L=1120 |
90099-33712 |
— | ||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP *H,L=650 |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP *H,L=540 |
90099-33080 |
from US $6.16 |
||
|
85389B
|
85389B
85389-12700
Protector, Windshield Washer
[10.1999 - 11.2001] WZE110,ZZE11#..UKP..LHD;CDE110,WZE110,ZZE11#..JPP |
85389-12700 |
— | ||
|
827111A680
|
827111A680
82711-1A680 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A680 |
US $2.77 |
||
|
8537512540
|
8537512540
85375-12540
Clamp
|
85375-12540 |
— | ||
|
9009904552
|
9009904552
90099-04552
New Genuine Part
|
90099-04552 |
— | ||
|
9009905271
|
9009905271
90099-05271
New Genuine Part
|
90099-05271 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.66 |
||
|
9017906242
|
9017906242
90179-06242
Direct
|
90179-06242 |
— | ||
| replacement | |||||
|
9017906242
|
9017906242
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
