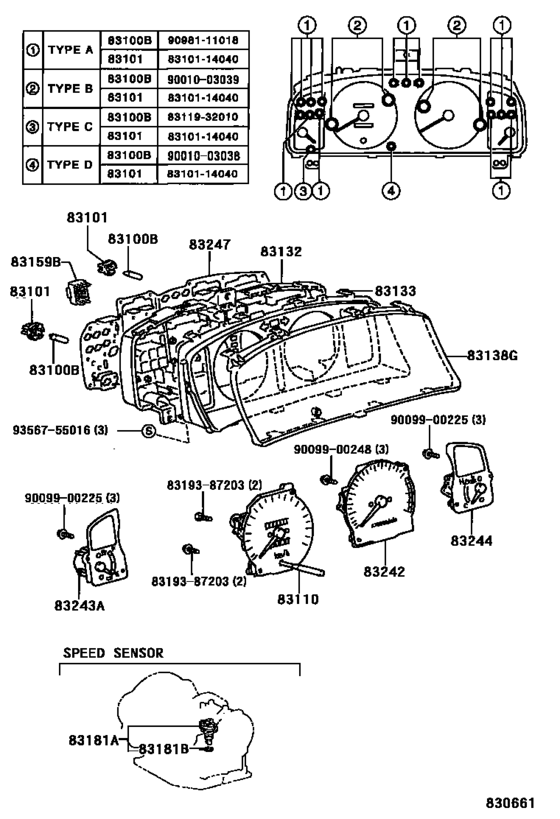

Meter ([08.2000 - ] (0008- )CDE110) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[08.2000 - 09.2001] CDE110 14V 3.0W,TYPE C:REFER TO ILLUSTRATION |
83119-32010 |
from US $2.24 |
||
|
83100B
|
83100B
90010-03038
Bulb, Combination Meter, No.1
[08.2000 - 09.2001] CDE110 14V 1.4W,TYPE D:REFER TO ILLUSTRATION |
90010-03038 |
— | ||
|
83100B
|
83100B
90010-03039
Bulb, Combination Meter, No.1
[08.2000 - 09.2001] CDE110 14V 3.4W,TYPE B:REFER TO ILLUSTRATION |
90010-03039 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.2000 - 09.2001] CDE110 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.2000 - 09.2001] CDE110 |
83101-14040 |
US $2.93 |
||
|
83110
|
83110
83220-12660
Speedometer Assy
[08.2000 - 07.2001] CDE110..RHD KM/H |
83220-12660 |
— | ||
|
83110
|
83110
83220-12690
Speedometer Assy
[08.2000 - 07.2001] CDE110..RHD |
83220-12690 |
— | ||
|
83132
|
83132
83841-12640
Case, Combination Meter
[08.2000 - 09.2001] CDE110 |
83841-12640 |
— | ||
|
83133
|
83133
83811-12610
Plate, Combination Meter, No.1
[08.2000 - 09.2001] CDE110..TERRA |
83811-12610 |
— | ||
|
83138G
|
83138G
83852-12700
Glass, Combination Meter
[04.1997 - 09.2001] AE115..SOL;CDE110,EE110,WZE110,ZZE11# |
83852-12700 |
— | ||
|
83159B
|
83159B
83159-22370
Relay Assy, Meter
[08.2000 - 09.2001] CDE110 |
83159-22370 |
— | ||
|
83181A
|
83181A
83181-12030 Sensor, Speedometer[08.2000 - 09.2001] CDE110 |
83181-12030 |
from US $160.74 |
||
|
83181B
|
83181B
96711-24018 Ring, O[08.2000 - 09.2001] CDE110 |
96711-24018 |
from US $2.26 |
||
|
83242
|
83242
83881-1H190
Tachometer Assy, Engine
[08.2000 - 09.2001] CDE110..TERRA |
83881-1H190 |
— | ||
|
83243A
|
83243A
83882-1E280 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.2000 - 09.2001] CDE110..TERRA |
83882-1E280 |
US $70.76 |
||
|
83244
|
83244
83883-1E160
Gauge Sub-Assy, Water Temperature Receiver
[10.1999 - 09.2001] CDE110,EE110,ZZE11#..TERRA |
83883-1E160 |
— | ||
|
83247
|
83247
83861-1H190
Plate, Meter Circuit
[08.2000 - 09.2001] CDE110 |
83861-1H190 |
— | ||
|
8319387203
|
8319387203
83193-87203
New Genuine Part
|
83193-87203 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900248
|
9009900248
90099-00248
New Genuine Part
|
90099-00248 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
