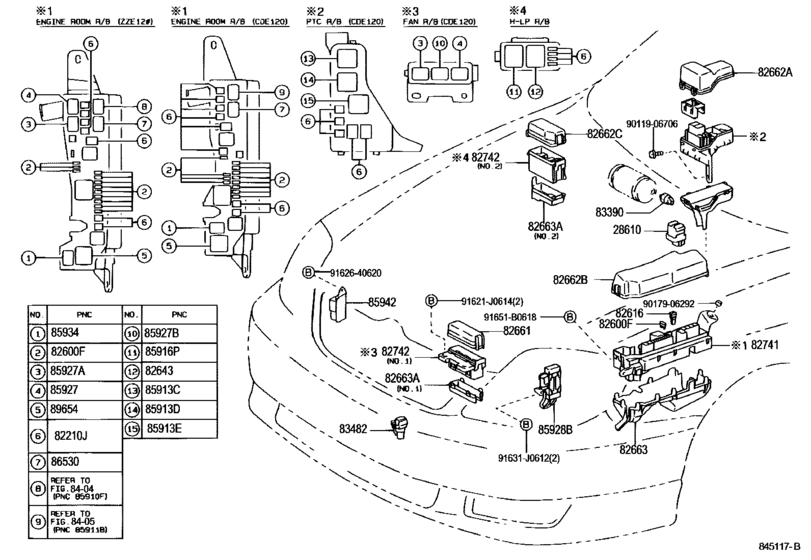

Switch & Relay & Computer ([09.2002 - 05.2004] ENGINE ROOM (0209-0405)JPP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.2002
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28610-67010 Relay Assy, Glow Plug[09.2002 - 05.2004] 1CDFTV..CDE120..JPP |
28610-67010 |
from US $42.71 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[09.2002 - 05.2004] CDE120..JPP 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[09.2002 - 05.2004] CDE120,ZZE12#..JPP 30A,TERMINAL:FEMALE,FOR INSTRUMENT PANEL J/B |
90982-08280 |
from US $3.92 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[09.2002 - 05.2004] CDE120,ZZE12#..JPP 40A,TERMINAL:FEMALE,FOR INSTRUMENT PANEL J/B |
90982-08281 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[09.2002 - 05.2004] CDE120,ZZE12#..JPP 30A,TERMINAL:FEMALE,FOR ENGINE ROOM R/B |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD 40A,TERMINAL:FEMALE,FOR ENGINE ROOM R/B |
90982-08284 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[09.2002 - 05.2004] CDE120,ZZE12#..JPP 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.04 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[09.2002 - 05.2004] CDE120,ZZE12#..JPP 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[09.2002 - 05.2004] CDE120,ZZE12#..JPP 15A,MINI FUSE,SUMITOMO |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[09.2002 - 05.2004] CDE120,ZZE12#..JPP 30A,MINI FUSE,SUMITOMO |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[09.2002 - 05.2004] CDE120,ZZE12#..JPP 5A,MINI FUSE,SUMITOMO |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD 25A,MINI FUSE |
90080-82033 |
— | ||
|
82616
|
82616
82616-20010 Puller, Fuse[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
82616-20010 |
from US $2.36 |
||
|
82643
|
82643
90987-04006 Relay Assy (For Heater Blower Motor)[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
82643
|
82643
90987-04010 Relay Assy (For Heater Blower Motor)[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
90987-04010 |
from US $42.71 |
||
|
82661
|
82661
82662-12040 Cover, Relay Block, No.1[09.2002 - 05.2004] CDE120..JPP |
82662-12040 |
US $15.14 |
||
|
82662A
|
82662A
82662-12100 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [09.2002 - 05.2004] CDE120..JPP |
82662-12100 |
US $24.90 |
||
|
82662B
|
82662B
82662-12180 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [09.2002 - 05.2004] CDE120..JPP |
82662-12180 |
US $30.14 |
||
|
82662C
|
82662C
82662-12020 Cover, Relay Block, Upper, No.2[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
82662-12020 |
US $11.21 |
||
|
82663
|
82663
82663-02030
Cover, Relay Block, Lower
[09.2002 - 05.2004] CDE120..JPP |
82663-02030 |
— | ||
|
82663A
|
82663A
82663-12030 Cover, Relay Block, Lower, No.2[09.2002 - 05.2004] CDE120..JPP NO.1 |
82663-12030 |
US $15.29 |
||
|
82663A
|
82663A
82663-12040 Cover, Relay Block, Lower, No.2[09.2002 - 05.2004] CDE120..JPP NO.2; ZZE12#..JPP..LHD NO.2 |
82663-12040 |
US $10.48 |
||
|
82741
|
82741
82741-12030 Block, Engine Room Relay[09.2002 - 05.2004] CDE120..JPP |
82741-12030 |
US $94.64 |
||
|
82742
|
82742
82741-12040 Block, Engine Room Relay, No.2[09.2002 - 05.2004] CDE120..JPP NO.1 |
82741-12040 |
US $28.54 |
||
|
82742
|
82742
82741-12050 Block, Engine Room Relay, No.2[09.2002 - 05.2004] CDE120..JPP NO.2; ZZE12#..JPP..LHD NO.2 |
82741-12050 |
US $19.80 |
||
|
83390
|
83390
83390-12350 Switch Assy, Vacuum WarningVACUUM WARNING [09.2002 - 05.2004] CDE120..JPP |
83390-12350 |
US $66.10 |
||
|
83482
|
83482
88790-22131 Thermistor, Cooler[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
88790-22131 |
US $33.55 |
||
|
85913C
|
85913C
90987-02016
Relay Assy, Starter
[09.2002 - 05.2004] CDE120..JPP |
90987-02016 |
— | ||
| replacement | |||||
|
85913C
|
85913C
90987-02025 Relay[09.2002 - 05.2004] CDE120..JPP |
90987-02025 |
from US $44.54 |
||
|
85913D
|
85913D
90987-02016
Relay Assy, Starter
[09.2002 - 05.2004] CDE120..JPP |
90987-02016 |
— | ||
| replacement | |||||
|
85913D
|
85913D
90987-02025 Relay[09.2002 - 05.2004] CDE120..JPP |
90987-02025 |
from US $44.54 |
||
|
85913E
|
85913E
90987-02016
Relay Assy, Starter
[09.2002 - 04.2003] CDE120..JPP |
90987-02016 |
— | ||
| replacement | |||||
|
85913E
|
85913E
90987-02025 Relay[09.2002 - 04.2003] CDE120..JPP |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02016
Relay Assy, Starter
[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
90987-02016 |
— | ||
| replacement | |||||
|
85916P
|
85916P
90987-02025 Relay[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
90987-02012 |
from US $26.99 |
||
|
85927A
|
85927A
90080-87012
Relay, Cooling Fan, No.2
[09.2002 - 05.2004] CDE120..JPP BOSCH |
90080-87012 |
— | ||
| replacement | |||||
|
85927A
|
85927A
90080-87020
Relay, Cooling Fan
[09.2002 - 05.2004] CDE120..JPP BOSCH |
90080-87020 |
— | ||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[09.2002 - 05.2004] CDE120,ZZE12#..JPP DENSO |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90080-87013
Relay, Fog Lamp
[09.2002 - 05.2004] CDE120..JPP BOSCH |
90080-87013 |
— | ||
| replacement | |||||
|
85927B
|
85927B
90080-87021
Relay, Lamp Cut
[09.2002 - 05.2004] CDE120..JPP BOSCH |
90080-87021 |
— | ||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[09.2002 - 05.2004] CDE120..JPP DENSO |
90987-02012 |
from US $26.99 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[09.2002 - 03.2004] CDE120..JPP |
90987-02022 |
from US $52.26 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[03.2004 - 05.2004] CDE120,ZZE12#..JPP |
90987-02028 |
from US $44.54 |
||
|
85942
|
85942
85942-02020
Relay, Headlamp Cleaner Control
[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
85942-02020 |
— | ||
|
86530
|
86530
90987-02020 Relay, Ignition, No.1[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
90987-02020 |
from US $50.84 |
||
|
89654
|
89654
90987-02016
Relay Assy, Starter
[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
90987-02016 |
— | ||
| replacement | |||||
|
89654
|
89654
90987-02025 Relay[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
90987-02025 |
from US $44.54 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
US $1.76 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9011906706
|
9011906706
90119-06706 New Genuine Part |
90119-06706 |
US $1.28 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9162640620
|
9162640620
91626-40620 New Genuine Part |
91626-40620 |
US $2.48 |
||
| replacement | |||||
|
9162640620
|
9162640620
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
