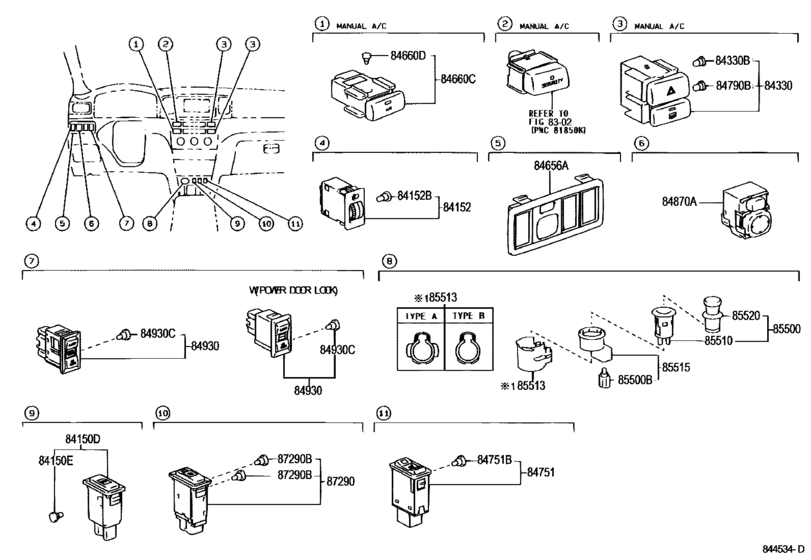

Switch & Relay & Computer ([10.2001 - 05.2004] INSTRUMENT PANEL (0110-0405)JPP..LHD) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-12030 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG |
84150-12030 |
US $57.51 |
||
| replacement | |||||
|
84150D
|
84150D
84150-26010
Switch Assy, Headlamp Cleaner
[10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG |
84150-26010 |
— | ||
|
84150E
|
84150E
84999-10320 Bulb, Satellite Switch[10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84152
|
84152
84152-12050 Switch, Headlamp Leveling[10.2001 - 09.2002] CDE120,ZZE12#..JPP |
84152-12050 |
US $77.17 |
||
|
84152
|
84152
84152-12051 Switch, Headlamp Leveling[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
84152-12051 |
US $77.17 |
||
|
84152B
|
84152B
90010-08103 Bulb (For Headlamp Leveling Switch)[10.2001 - 05.2004] CDE120,ZZE12#..JPP 14V 0.56W |
90010-08103 |
US $5.53 |
||
|
84330
|
84330
84332-12480 Switch Assy, Hazard Warning Signal[10.2001 - 05.2004] CDE120,ZZE12#..JPP..WG |
84332-12480 |
US $77.17 |
||
| replacement | |||||
|
84330
|
84330
84332-12440 Switch Assy, Hazard Warning Signal[10.2001 - 05.2004] CDE120,ZZE12#..JPP..WG |
84332-12440 |
US $82.12 |
||
|
84330
|
84330
84332-12490 Switch Assy, Hazard Warning Signal[10.2001 - 05.2004] ZZE12#..JPP..SED; CDE120,ZZE12#..JPP..WG COLD SPEC |
84332-12490 |
US $155.79 |
||
| replacement | |||||
|
84330
|
84330
84332-12460
Switch Assy, Hazard Warning Signal
[10.2001 - 05.2004] ZZE12#..JPP..SED; CDE120,ZZE12#..JPP..WG COLD SPEC |
84332-12460 |
— | ||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[10.2001 - 05.2004] CDE120,ZZE12#..JPP 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84656A
|
84656A
84656-12120-B0 Bezel, SwitchSWITCH [10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG..TERRA W/O(OUTER MIRROR SWITCH),DK.GRAY,TRIM1# |
84656-12120-B0 |
US $16.31 |
||
|
84656A
|
84656A
84656-12130-B0
Bezel, Switch
[10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
84656-12130-B0 |
— | ||
|
84660C
|
84660C
84660-12210 Switch, Cooler[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
84660-12210 |
US $77.17 |
||
|
84660D
|
84660D
90010-03059
Bulb(For Cooler Switch)
[10.2001 - 05.2004] CDE120,ZZE12#..JPP 14V 1.12W |
90010-03059 |
— | ||
|
84751
|
84751
84751-12060 Switch, Seat HeaterSEAT HEATER [10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG |
84751-12060 |
US $59.75 |
||
|
84751B
|
84751B
84999-10330
Bulb, Seat Heater Switch
[10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG 14.5V 0.87W |
84999-10330 |
— | ||
| replacement | |||||
|
84751B
|
84751B
84999-10190 Bulb, Hazard Warning Signal Switch[10.2001 - 05.2004] CDE120,ZZE12#..JPP..LHD..WG 14.5V 0.87W |
84999-10190 |
from US $5.42 |
||
|
84790B
|
84790B
90010-01079 Bulb(For Rear Window Defogger Switch)[10.2001 - 05.2004] CDE120,ZZE12#..JPP 14V 0.06W |
90010-01079 |
US $6.99 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
84872-52030 |
US $53.29 |
||
|
84930
|
84930
84930-12180 Switch Assy, Door ControlDOOR CONTROL [10.2001 - 05.2004] CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK) |
84930-12180 |
US $61.44 |
||
| replacement | |||||
|
84930
|
84930
84930-52010 Switch Assy, Door Control[10.2001 - 05.2004] CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK) |
84930-52010 |
US $69.01 |
||
|
84930
|
84930
84930-13040 Switch Assy, Door ControlBACK DOOR CONTROL [10.2001 - 05.2004] CDE120,ZZE12#..JPP..WG..TERRA |
84930-13040 |
US $61.44 |
||
| replacement | |||||
|
84930
|
84930
84930-13030 Switch Assy, Door ControlDOOR CONTROL [10.2001 - 05.2004] CDE120,ZZE12#..JPP..WG..TERRA |
84930-13030 |
US $61.44 |
||
|
84930C
|
84930C
84999-10310 Bulb, Air Conditioner Control[10.2001 - 05.2004] CDE120,ZZE12#..JPP..TERRA 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
85500-12240 |
from US $27.83 |
||
|
85500B
|
85500B
90010-01065 Bulb, Cigarette Lighter[10.2001 - 05.2004] CDE120,ZZE12#..JPP 14V 1.4W,W(GREEN CAP) |
90010-01065 |
US $5.13 |
||
| replacement | |||||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[10.2001 - 05.2004] CDE120,ZZE12#..JPP 14V 1.4W,W(GREEN CAP) |
84999-10250 |
from US $4.62 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
85510-16040 |
from US $16.81 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[10.2001 - 05.2004] CDE120,ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
85513-12020 |
from US $5.05 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[04.2002 - 05.2004] CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
85513-28010 |
from US $2.57 |
||
|
85515
|
85515
85515-12110 Stay, Cigarette Lighter Bezel[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
85515-12110 |
US $20.09 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
85520-28010 |
from US $17.90 |
||
|
87290
|
87290
87290-12010 Switch Assy, HeaterHETER [10.2001 - 05.2004] CDE120..JPP..LHD |
87290-12010 |
US $85.90 |
||
| replacement | |||||
|
87290
|
87290
87290-20020 Switch Assy, HeaterHETER [10.2001 - 05.2004] CDE120..JPP..LHD |
87290-20020 |
US $85.90 |
||
|
87290B
|
87290B
84999-10310 Bulb, Air Conditioner Control[10.2001 - 05.2004] CDE120..JPP..LHD 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
87290B
|
87290B
90010-01049 Bulb, Main Switch Assy[10.2001 - 05.2004] CDE120..JPP..LHD 14V0.91W,YELLOW CAP |
90010-01049 |
US $5.42 |
||
