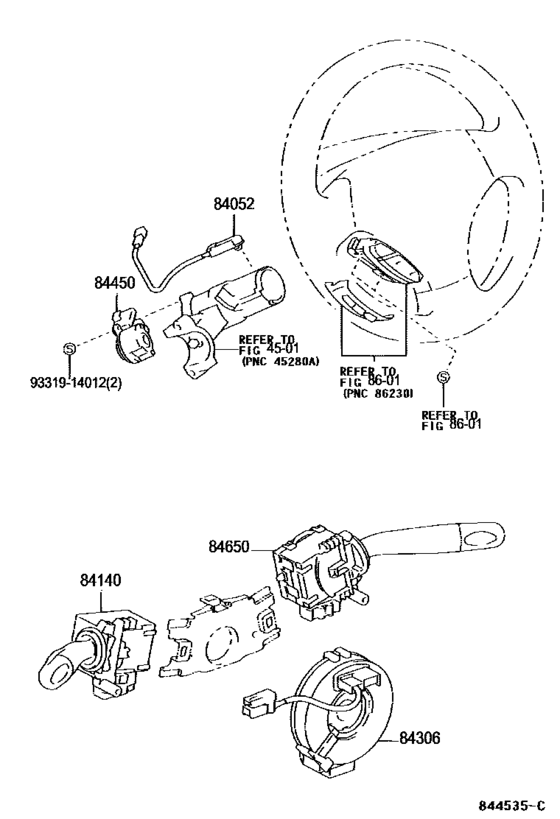

Switch & Relay & Computer ([10.2001 - 05.2004] IGNITION & COMBINATION SWITCH (0110-0405)JPP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60010 Switch Assy, Un-Lock Warning[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
84052-60010 |
US $18.70 |
||
|
84140
|
84140
84140-13010
Switch Assy, Headlamp Dimmer
[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
84140-13010 |
— | ||
|
84140
|
84140
84140-13020 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [10.2001 - 05.2004] CDE120,ZZE12#..JPP W(FRONT FOG LAMP SW) |
84140-13020 |
from US $118.17 |
||
|
84306
|
84306
84306-32030 Cable Sub-Assy, Spiral[10.2001 - 05.2004] CDE120,ZZE12#..JPP W(AUDIO SWITCH) |
84306-32030 |
from US $235.31 |
||
|
84306
|
84306
84306-52020 Cable Sub-Assy, Spiral[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
84306-52020 |
from US $227.37 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[10.2001 - 05.2004] CDE120,ZZE12#..JPP |
84450-52010 |
from US $72.50 |
||
|
84650
|
84650
84652-1A830 Switch Assy, Windshield WiperWINDSHIELD WIPER [10.2001 - 05.2004] CDE120,ZZE12#..JPP..WG |
84652-1A830 |
US $157.25 |
||
| replacement | |||||
|
84650
|
84650
84652-42120 Switch Assy, Windshield WiperWINDSHIELD WIPER [10.2001 - 05.2004] CDE120,ZZE12#..JPP..WG |
84652-42120 |
US $157.25 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
