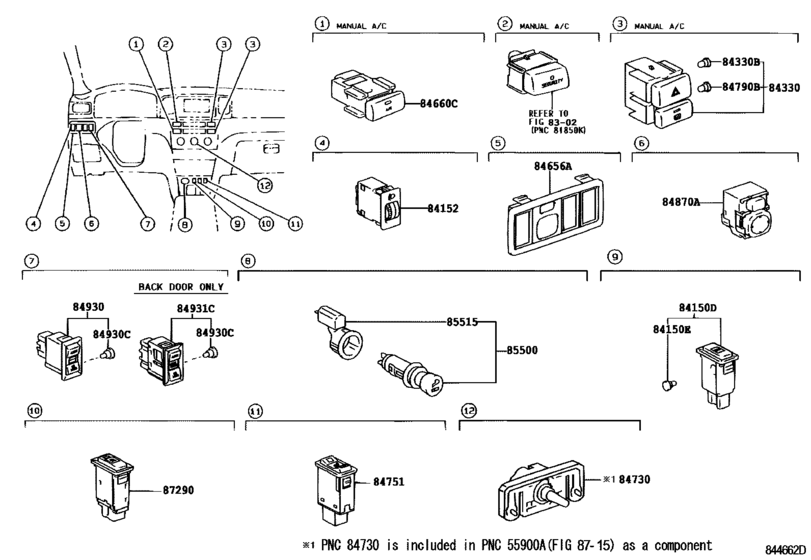

Switch & Relay & Computer ([01.2002 - 06.2004] INSTRUMENT PANEL (0201-0406)UKP..LHD) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-02020
Switch Assy, Headlamp Cleaner
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..LHD |
84150-02020 |
— | ||
| replacement | |||||
|
84150D
|
84150D
84150-02021
Switch Assy, Headlamp Cleaner
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..LHD |
84150-02021 |
— | ||
|
84150D
|
84150D
84150-02021
Switch Assy, Headlamp Cleaner
[05.2004 - 06.2004] CDE120,ZZE12#..UKP..LHD |
84150-02021 |
— | ||
|
84150E
|
84150E
90011-11014
Bulb, Headlamp Cleaner Switch
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..LHD |
90011-11014 |
— | ||
|
84150E
|
84150E
90011-11042
Bulb, Headlamp Cleaner Switch
[05.2004 - 06.2004] CDE120,ZZE12#..UKP..LHD |
90011-11042 |
— | ||
|
84152
|
84152
84152-02020
Switch, Headlamp Leveling
[01.2002 - 04.2004] CDE120,ZZE12#..UKP |
84152-02020 |
— | ||
| replacement | |||||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[01.2002 - 04.2004] CDE120,ZZE12#..UKP |
84152-02021 |
— | ||
|
84152
|
84152
84152-02021
Switch, Headlamp Leveling
[05.2004 - 06.2004] CDE120,ZZE12#..UKP |
84152-02021 |
— | ||
|
84330
|
84330
84332-02080
Switch Assy, Hazard Warning Signal
[01.2002 - 04.2004] CDE120,ZZE12#..UKP |
84332-02080 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02081
Switch Assy, Hazard Warning Signal
[01.2002 - 04.2004] CDE120,ZZE12#..UKP |
84332-02081 |
— | ||
|
84330
|
84330
84332-02081
Switch Assy, Hazard Warning Signal
[05.2004 - 06.2004] CDE120,ZZE12#..UKP |
84332-02081 |
— | ||
|
84330
|
84330
84332-02090
Switch Assy, Hazard Warning Signal
[01.2002 - 04.2004] CDE120,ZZE12#..UKP COLD SPEC |
84332-02090 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02092
Switch Assy, Hazard Warning Signal
[01.2002 - 04.2004] CDE120,ZZE12#..UKP COLD SPEC |
84332-02092 |
— | ||
|
84330
|
84330
84332-02091
Switch Assy, Hazard Warning Signal
[05.2004 - 06.2004] CDE120,ZZE12#..UKP COLD SPEC |
84332-02091 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-02092
Switch Assy, Hazard Warning Signal
[05.2004 - 06.2004] CDE120,ZZE12#..UKP COLD SPEC |
84332-02092 |
— | ||
|
84330B
|
84330B
90011-11023
Bulb, Hazard Warning Signal Switch
[01.2002 - 04.2004] CDE120,ZZE12#..UKP 14V 0.84W |
90011-11023 |
— | ||
| replacement | |||||
|
84330B
|
84330B
90011-11044 Bulb, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [01.2002 - 04.2004] CDE120,ZZE12#..UKP 14V 0.84W |
90011-11044 |
US $6.06 |
||
|
84330B
|
84330B
90011-11044 Bulb, Hazard Warning Signal SwitchHAZARD WARNING SIGNAL SWITCH [05.2004 - 06.2004] CDE120,ZZE12#..UKP 14V 0.84W |
90011-11044 |
US $6.06 |
||
|
84656A
|
84656A
84656-02090-B0
Bezel, Switch
[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD W(ELECTRIC REMOTE CONTROL DOOR MIRROR),DK.GRAY,TRIM1# |
84656-02090-B0 |
— | ||
|
84656A
|
84656A
84656-02110-B0
Bezel, Switch
[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD..TERRA DK.GRAY,TRIM1# |
84656-02110-B0 |
— | ||
|
84660C
|
84660C
84660-02040
Switch, Cooler
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
84660-02040 |
— | ||
|
84730
|
84730
84732-02040 Switch Assy, Heater BlowerHEATER BLOWER [01.2002 - 04.2004] CDE120,ZZE12#..UKP |
84732-02040 |
US $104.83 |
||
|
84751
|
84751
84751-02010
Switch, Seat Heater
[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD |
84751-02010 |
— | ||
|
84790B
|
84790B
90011-11024
Bulb(For Rear Window Defogger Switch)
[01.2002 - 04.2004] CDE120,ZZE12#..UKP 14V 0.56W |
90011-11024 |
— | ||
| replacement | |||||
|
84790B
|
84790B
90011-11045
Bulb(For Rear Window Defogger Switch)
[01.2002 - 04.2004] CDE120,ZZE12#..UKP 14V 0.56W |
90011-11045 |
— | ||
|
84790B
|
84790B
90011-11045
Bulb(For Rear Window Defogger Switch)
[05.2004 - 06.2004] CDE120,ZZE12#..UKP 14V 0.56W |
90011-11045 |
— | ||
|
84870A
|
84870A
84872-02050
Switch Assy, Outer Mirror, No.2
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
84872-02050 |
— | ||
|
84930
|
84930
84930-02030
Switch Assy, Door Control
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..TERRA |
84930-02030 |
— | ||
| replacement | |||||
|
84930
|
84930
84930-02031
Switch Assy, Door Control
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..TERRA |
84930-02031 |
— | ||
|
84930
|
84930
84930-02031
Switch Assy, Door Control
[05.2004 - 06.2004] CDE120,ZZE12#..UKP..TERRA |
84930-02031 |
— | ||
|
84930C
|
84930C
84999-10310 Bulb, Air Conditioner Control[08.2002 - 06.2004] CDE120,ZZE12#..UKP..WG..TERRA 14V 0.91W,W(DOOR LOCK CONTROL = BACK DOOR ONLY) |
84999-10310 |
from US $2.96 |
||
|
84930C
|
84930C
90011-11017
Bulb(For Door Control Switch)
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..TERRA |
90011-11017 |
— | ||
| replacement | |||||
|
84930C
|
84930C
90011-11046
Bulb(For Door Control Switch)
[01.2002 - 04.2004] CDE120,ZZE12#..UKP..TERRA |
90011-11046 |
— | ||
|
84930C
|
84930C
90011-11046
Bulb(For Door Control Switch)
[05.2004 - 06.2004] CDE120,ZZE12#..UKP..TERRA |
90011-11046 |
— | ||
|
84931C
|
84931C
84930-13040 Switch Assy, Door ControlBACK DOOR CONTROL [08.2002 - 06.2004] CDE120,ZZE12#..UKP..WG..TERRA |
84930-13040 |
US $61.44 |
||
| replacement | |||||
|
84931C
|
84931C
84930-13030 Switch Assy, Door ControlDOOR CONTROL [08.2002 - 06.2004] CDE120,ZZE12#..UKP..WG..TERRA |
84930-13030 |
US $61.44 |
||
|
85500
|
85500
85500-09010
Lighter Assy, Cigarette
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85500-09010 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85500-09040 |
— | ||
|
85515
|
85515
85515-05010
Stay, Cigarette Lighter Bezel
[01.2002 - 04.2004] CDE120,ZZE12#..UKP |
85515-05010 |
— | ||
| replacement | |||||
|
85515
|
85515
85515-05011
Stay, Cigarette Lighter Bezel
[01.2002 - 04.2004] CDE120,ZZE12#..UKP |
85515-05011 |
— | ||
|
85515
|
85515
85515-05011
Stay, Cigarette Lighter Bezel
[05.2004 - 06.2004] CDE120,ZZE12#..UKP |
85515-05011 |
— | ||
|
87290
|
87290
87290-02010
Switch Assy, Heater
[01.2002 - 06.2004] CDE120..UKP..LHD |
87290-02010 |
— | ||
