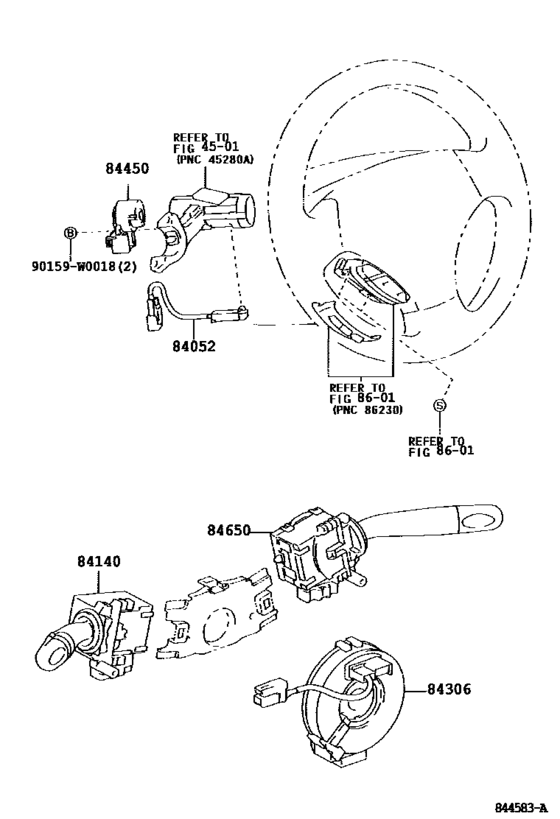

Switch & Relay & Computer ([01.2002 - 06.2004] IGNITION & COMBINATION SWITCH (0201-0406)UKP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-05020 Switch Assy, Un-Lock Warning[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
84052-05020 |
US $34.51 |
||
|
84140
|
84140
84140-02180
Switch Assy, Headlamp Dimmer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
84140-02180 |
— | ||
|
84140
|
84140
84140-02190
Switch Assy, Headlamp Dimmer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP W(FRONT FOG LAMP SW) |
84140-02190 |
— | ||
|
84306
|
84306
84306-02060
Cable Sub-Assy, Spiral
[01.2002 - 01.2003] CDE120,ZZE12#..UKP |
84306-02060 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-02180
Cable Sub-Assy, Spiral
[01.2002 - 01.2003] CDE120,ZZE12#..UKP |
84306-02180 |
— | ||
|
84306
|
84306
84306-02061
Cable Sub-Assy, Spiral
[01.2003 - 10.2003] CDE120,ZZE12#..UKP |
84306-02061 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-0D012
Cable Sub-Assy, Spiral
[01.2003 - 10.2003] CDE120,ZZE12#..UKP |
84306-0D012 |
— | ||
|
84306
|
84306
84306-02070
Cable Sub-Assy, Spiral
[01.2002 - 01.2003] CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
84306-02070 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-02180
Cable Sub-Assy, Spiral
[01.2002 - 01.2003] CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
84306-02180 |
— | ||
|
84306
|
84306
84306-0D012
Cable Sub-Assy, Spiral
[10.2003 - 06.2004] CDE120,ZZE12#..UKP |
84306-0D012 |
— | ||
|
84306
|
84306
84306-0D050
Cable Sub-Assy, Spiral
[01.2003 - 06.2004] CDE120,ZZE12#..UKP W(AUDIO SWITCH) |
84306-0D050 |
— | ||
|
84450
|
84450
84450-0D010
Switch Assy, Ignition Or Starter
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
84450-0D010 |
— | ||
|
84650
|
84650
84652-02290
Switch Assy, Windshield Wiper
[08.2002 - 06.2004] CDE120,ZZE12#..UKP..WG |
84652-02290 |
— | ||
|
90159W0018
|
90159W0018
90159-W0018
New Genuine Part
|
90159-W0018 |
— | ||
