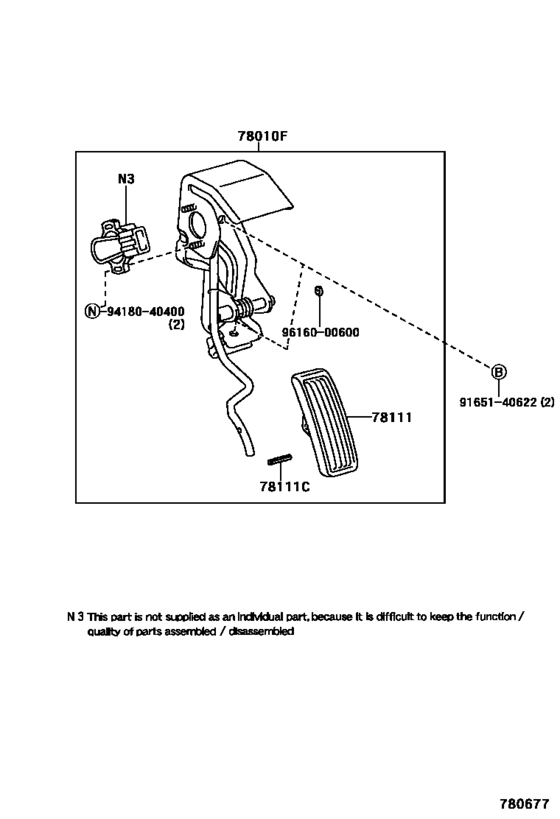

Accelerator Link ([05.2002 - ] (0205- )CDE120) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CDE120
- grade
- XEI
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 05.2002
- To
- 03.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010F
|
78010F
78010-12170 Pedal Assy, AcceleratorACCELERATOR [05.2002 - 08.2003] CDE120 |
78010-12170 |
US $388.75 |
||
| replacement | |||||
|
78010F
|
78010F
78010-12182
Pedal Assy, Accelerator
[05.2002 - 08.2003] CDE120 |
78010-12182 |
— | ||
|
78010F
|
78010F
78010-12171 Pedal Assy, AcceleratorACCELERATOR [11.2003 - 06.2004] CDE120 PLANT NO. M21,M22 |
78010-12171 |
US $388.75 |
||
| replacement | |||||
|
78010F
|
78010F
78010-12182
Pedal Assy, Accelerator
[11.2003 - 06.2004] CDE120 PLANT NO. M21,M22 |
78010-12182 |
— | ||
|
78010F
|
78010F
78010-12181
Pedal Assy, Accelerator
[07.2004 - 08.2004] CDE120 PLANT NO. M21,M22 |
78010-12181 |
— | ||
| replacement | |||||
|
78010F
|
78010F
78010-12182
Pedal Assy, Accelerator
[07.2004 - 08.2004] CDE120 PLANT NO. M21,M22 |
78010-12182 |
— | ||
|
78010F
|
78010F
78010-12190 Pedal Assy, AcceleratorACCELERATOR [08.2003 - 11.2003] CDE120 PLANT NO.A31-A32 |
78010-12190 |
US $388.75 |
||
| replacement | |||||
|
78010F
|
78010F
78010-12182
Pedal Assy, Accelerator
[08.2003 - 11.2003] CDE120 PLANT NO.A31-A32 |
78010-12182 |
— | ||
|
78010F
|
78010F
78010-12191 Pedal Assy, AcceleratorACCELERATOR [11.2003 - 08.2004] CDE120 PLANT NO.A31-A32 |
78010-12191 |
US $388.75 |
||
| replacement | |||||
|
78010F
|
78010F
78010-12182
Pedal Assy, Accelerator
[11.2003 - 08.2004] CDE120 PLANT NO.A31-A32 |
78010-12182 |
— | ||
|
78111
|
78111
78111-35030 Pedal, AcceleratorACCELERATOR [11.2003 - 08.2004] CDE120 |
78111-35030 |
US $11.88 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[11.2003 - 08.2004] CDE120 |
90254-04019 |
US $1.12 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9418040400
|
9418040400
94180-40400 New Genuine Part |
94180-40400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
