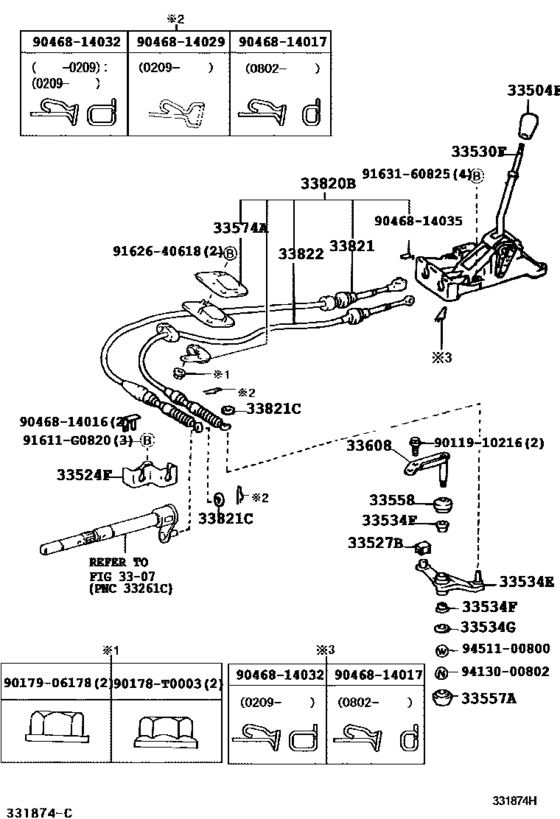

Shift Lever & Retainer ([05.2002 - ] (0205- )CDE120) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CDE120
- grade
- XEI
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 05.2002
- To
- 03.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[05.2002 - 05.2007] CDE120,ZZE12#..MTM..(SEG,XEI,XLI) DK.GRAY,TRIM1# |
33504-12180-B7 |
from US $36.33 |
||
|
33524F
|
33524F
33524-28020
Bracket, Control Lever Housing Support (For Floor Shift)
[05.2002 - 08.2004] CDE120 |
33524-28020 |
— | ||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[05.2002 - 08.2004] CDE120,ZZE12#..MTM..BZ..SED |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-02120
Lever Assy, Shift (For Floor Shift)
[03.2003 - 08.2004] CDE120,ZZE12#..MTM..BZ..SED..(DCR,HTWC) |
33530-02120 |
— | ||
|
33530F
|
33530F
33530-12770 Lever Assy, Shift (For Floor Shift)[05.2002 - 03.2003] CDE120,ZZE12#..MTM..BZ |
33530-12770 |
US $82.99 |
||
|
33534E
|
33534E
33534-28090
Crank, Selecting Bell, No.2
[05.2002 - 08.2004] CDE120 |
33534-28090 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[05.2002 - 08.2004] CDE120,ZZE12#..MTM..BZ..SED |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[05.2002 - 08.2004] CDE120,ZZE12#..MTM..BZ..SED |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[05.2002 - 08.2004] CDE120,ZZE12#..MTM..BZ..SED |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[05.2002 - 08.2004] CDE120,ZZE12#..MTM..BZ..SED |
33558-10030 |
US $3.68 |
||
|
33574A
|
33574A
33574-12100 Retainer, Shift Cable Grommet, No.1[05.2002 - 07.2003] CDE120 |
33574-12100 |
US $11.07 |
||
|
33608
|
33608
33608-12031 Support Sub-Assy, Selecting Bellcrank[05.2002 - 08.2004] CDE120 |
33608-12031 |
US $12.38 |
||
|
33820B
|
33820B
33820-1A160 Cable Assy, Transmission ControlTRANSMISSION CONTROL [05.2002 - 07.2003] CDE120 |
33820-1A160 |
US $398.94 |
||
| replacement | |||||
|
33820B
|
33820B
33820-1A162 Cable Assy, Transmission Control[05.2002 - 07.2003] CDE120 |
33820-1A162 |
US $401.86 |
||
|
33820B
|
33820B
33820-1A161 Cable Assy, Transmission ControlTRANSMISSION CONTROL [07.2003 - 05.2004] CDE120 |
33820-1A161 |
US $398.94 |
||
| replacement | |||||
|
33820B
|
33820B
33820-1A162 Cable Assy, Transmission Control[07.2003 - 05.2004] CDE120 |
33820-1A162 |
US $401.86 |
||
|
33820B
|
33820B
33820-1A162 Cable Assy, Transmission Control[05.2004 - 08.2004] CDE120 |
33820-1A162 |
US $401.86 |
||
|
33821
|
33821
33821-1A150 Cable Transmission Control Shift (For Floor Shift)[05.2002 - 07.2003] CDE120 |
33821-1A150 |
US $235.87 |
||
| replacement | |||||
|
33821
|
33821
33821-1A152 Cable Transmission Control Shift (For Floor Shift)[05.2002 - 07.2003] CDE120 |
33821-1A152 |
US $231.50 |
||
|
33821
|
33821
33821-1A151 Cable Transmission Control Shift (For Floor Shift)[07.2003 - 05.2004] CDE120 |
33821-1A151 |
US $235.87 |
||
| replacement | |||||
|
33821
|
33821
33821-1A152 Cable Transmission Control Shift (For Floor Shift)[07.2003 - 05.2004] CDE120 |
33821-1A152 |
US $231.50 |
||
|
33821
|
33821
33821-1A152 Cable Transmission Control Shift (For Floor Shift)[08.2004 - 03.2008] CDE120 |
33821-1A152 |
US $231.50 |
||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[11.2002 - 05.2007] CDE120 OD=30 |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[11.2002 - 05.2007] CDE120,ZZE12#..MTM OD=28 |
90201-08267 |
from US $0.92 |
||
|
33822
|
33822
33822-12490 Cable Transmission Control Select (For Floor Shift)[05.2002 - 07.2003] CDE120 |
33822-12490 |
US $200.93 |
||
| replacement | |||||
|
33822
|
33822
33822-12491 Cable Transmission Control Select (For Floor Shift)[05.2002 - 07.2003] CDE120 |
33822-12491 |
US $203.84 |
||
|
33822
|
33822
33822-12491 Cable Transmission Control Select (For Floor Shift)[07.2003 - 08.2004] CDE120 |
33822-12491 |
US $203.84 |
||
|
90178T0003
|
90178T0003
90178-T0003
New Genuine Part
|
90178-T0003 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9011910216
|
9011910216
90119-10216 Bolt (For Control Shaft Cover) |
90119-10216 |
US $2.72 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.90 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
