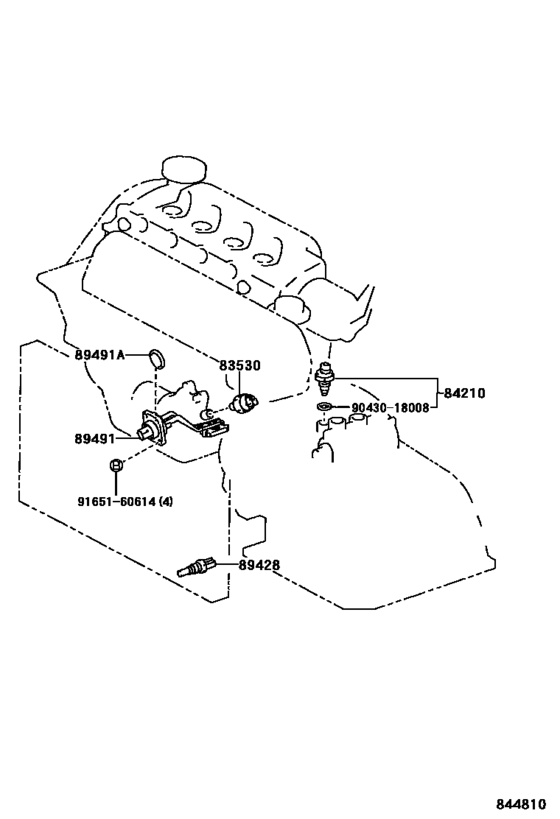

Switch & Relay & Computer ([05.2002 - ] ENGINE & TRANSMISSION (0205- )CDE120) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CDE120
- grade
- XEI
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 05.2002
- To
- 03.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[05.2002 - 08.2004] CDE120 DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[05.2002 - 08.2004] CDE120 DENSO |
83530-60010 |
from US $27.12 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[05.2002 - 08.2004] CDE120 YAZAKI |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[05.2002 - 05.2007] CDE120,ZZE12#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2002 - 05.2007] CDE120,ZZE12#..MTM |
84210-52050 |
from US $20.67 |
||
|
89428
|
89428
89428-20110 Switch, Temperature Detect, No.2[05.2002 - 08.2004] CDE120 |
89428-20110 |
from US $76.95 |
||
|
89491
|
89491
89491-44020 Sensor, Engine Oil LevelENGINE OIL LEVEL [05.2002 - 08.2004] CDE120 |
89491-44020 |
US $329.06 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[05.2002 - 08.2004] CDE120 |
89493-60010 |
from US $2.24 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
