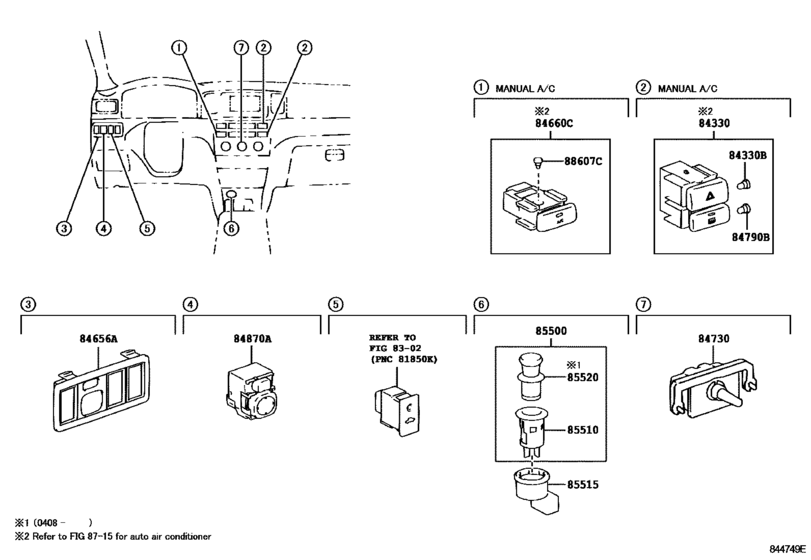

Switch & Relay & Computer ([05.2002 - ] INSTRUMENT PANEL SWITCH (0205- )) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CDE120
- grade
- XEI
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 05.2002
- To
- 03.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-02110
Switch Assy, Hazard Warning Signal
[05.2002 - 08.2004] CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC) |
84332-02110 |
— | ||
|
84330B
|
84330B
90010-01081
Bulb, Hazard Warning Signal Switch
[05.2002 - 05.2007] CDE120,ZZE12#..(XEI,XLI)..BZ 14V 1.4W |
90010-01081 |
— | ||
|
84656A
|
84656A
84656-02140
Bezel, Switch
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED |
84656-02140 |
— | ||
|
84660C
|
84660C
84660-12210 Switch, Cooler[05.2002 - 08.2004] CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC) |
84660-12210 |
US $77.17 |
||
|
84730
|
84730
84732-02050
Switch Assy, Heater Blower
[05.2002 - 08.2004] CDE120,ZZE12#..(XEI,XLI)..BZ..SED |
84732-02050 |
— | ||
|
84790B
|
84790B
90010-01079 Bulb(For Rear Window Defogger Switch)[05.2002 - 05.2007] CDE120,ZZE12#..(XEI,XLI)..BZ 14V 0.06W |
90010-01079 |
US $6.99 |
||
|
84870A
|
84870A
84872-02070
Switch Assy, Outer Mirror
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED |
84872-02070 |
— | ||
|
85500
|
85500
85500-02020
Lighter Assy, Cigarette
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
85500-02020 |
— | ||
|
85510
|
85510
85510-02010
Socket & Retainer Assy, Cigarlighter
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
85510-02010 |
— | ||
|
85515
|
85515
85515-02031
Stay, Cigarette Lighter Bezel
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
85515-02031 |
— | ||
|
85520
|
85520
85520-02010
Knob And Element Assy, Cigarette Lighter
[08.2004 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) |
85520-02010 |
— | ||
|
88607C
|
88607C
90010-03059
Bulb(For Cooler Switch)
[05.2002 - 08.2004] CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC) 14V 1.12W |
90010-03059 |
— |
