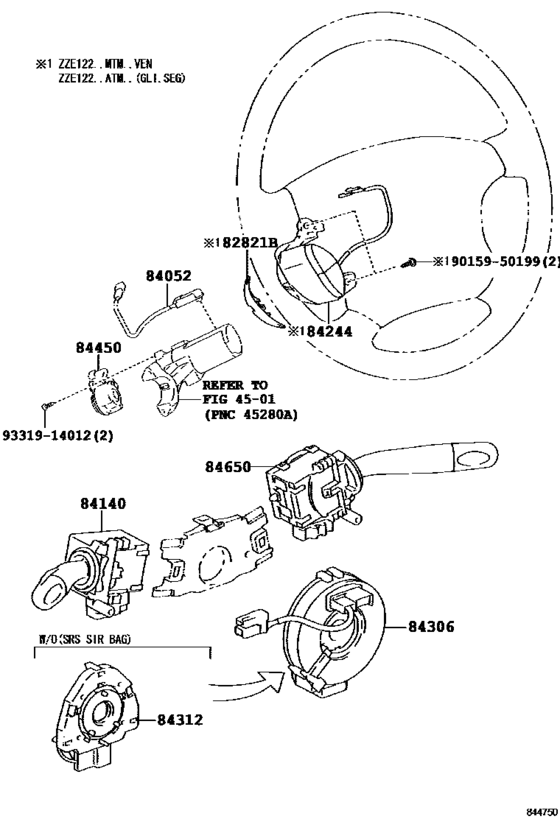

Switch & Relay & Computer ([05.2002 - ] IGNITION & COMBINATION SWITCH (0205- )) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CDE120
- grade
- XEI
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 05.2002
- To
- 03.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-02010
Switch Assy, Un-Lock Warning
[05.2002 - 05.2007] CDE120,ZZE12# |
84052-02010 |
— | ||
|
84140
|
84140
84140-02240
Switch Assy, Headlamp Dimmer
[08.2004 -] ZZE122..WGN..HTWC;CDE120,ZZE122..DCR,HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE122..(GL I,XEI)..SED..HTWC W(FRONT FOG LAMP) |
84140-02240 |
— | ||
|
84140
|
84140
84140-02260
Switch Assy, Headlamp Dimmer
[05.2002 - 08.2004] CDE120; ZZE122..BZ..SED..HTWC W(FRONT FOG LAMP & REAR FOG LAMP) |
84140-02260 |
— | ||
|
84306
|
84306
84306-02100
Cable Sub-Assy, Spiral
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
84306-02100 |
— | ||
|
84306
|
84306
84306-02170
Cable Sub-Assy, Spiral
[08.2004 - 03.2008] CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC) W(SRS AIR BAG) |
84306-02170 |
— | ||
|
84450
|
84450
84450-02020
Switch Assy, Ignition Or Starter
[05.2002 - 05.2007] CDE120,ZZE12# |
84450-02020 |
— | ||
|
84650
|
84650
84652-02320
Switch Assy, Windshield Wiper
[05.2002 - 08.2004] CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC) |
84652-02320 |
— | ||
|
84650
|
84650
84652-02330
Switch Assy, Windshield Wiper
[05.2002 - 08.2004] CDE120,ZZE122..BZ..SED..(DCR,HTWC) W(VARIABLE INTERMITTENT WIPER) |
84652-02330 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
