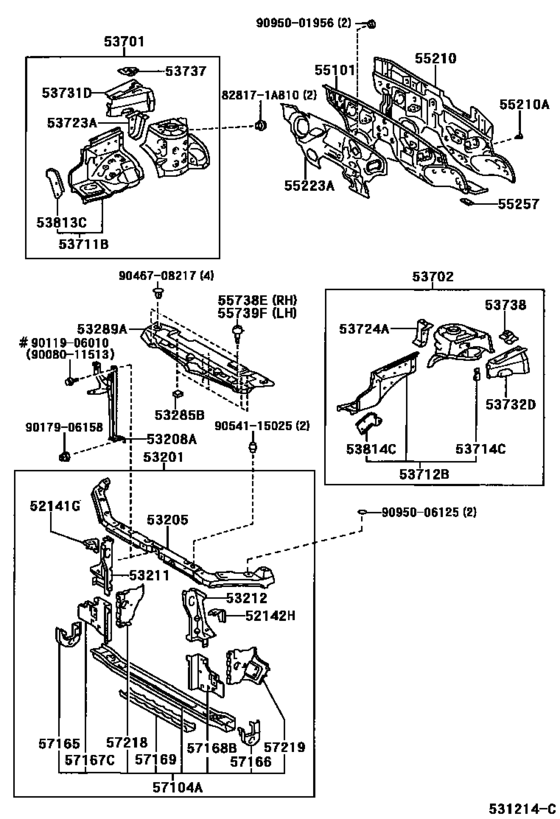

Front Fender Apron & Dash Panel ([11.2001 - 01.2003] (0111-0301)UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-13050 Stay, Front Bumper, Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
52141-13050 |
US $20.68 |
||
|
52142H
|
52142H
52142-13050 Stay, Front Bumper, Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
52142-13050 |
US $20.68 |
||
|
53201
|
53201
53201-02080
Support Sub-Assy, Radiator
[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
53201-02080 |
— | ||
|
53201
|
53201
53201-02130
Support Sub-Assy, Radiator
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
53201-02130 |
— | ||
| replacement | |||||
|
53201
|
53201
53201-02131
Support Sub-Assy, Radiator
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
53201-02131 |
— | ||
|
53205
|
53205
53216-02902
Support Sub-Assy, Radiator, Upper
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53216-02902 |
— | ||
|
53208A
|
53208A
53208-13060 Support Sub-Assy, Hood LockHOOD LOCK [11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
53208-13060 |
US $55.34 |
||
|
53211
|
53211
53211-02050
Support, Radiator, Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
53211-02050 |
— | ||
|
53211
|
53211
53211-02060
Support, Radiator, Rh
[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
53211-02060 |
— | ||
|
53212
|
53212
53212-02050
Support, Radiator, Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
53212-02050 |
— | ||
|
53212
|
53212
53212-02060
Support, Radiator, Lh
[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
53212-02060 |
— | ||
|
53285B
|
53285B
53155-02020 Seal, Radiator Side Air, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53155-02020 |
US $7.43 |
||
|
53289A
|
53289A
53141-02010
Cover, Radiator Support Opening
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53141-02010 |
— | ||
|
53701
|
53701
53701-02090
Apron Sub-Assy, Front Fender, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
53701-02090 |
— | ||
|
53702
|
53702
53702-02040
Apron Sub-Assy, Front Fender, Lh
[11.2001 - 03.2002] CDE120,ZZE12#..UKP |
53702-02040 |
— | ||
| replacements | |||||
|
53702
|
53702
53702-02041
Apron Sub-Assy, Front Fender, Lh
[11.2001 - 03.2002] CDE120,ZZE12#..UKP |
53702-02041 |
— | ||
|
53702
|
53702
90179-06214 NUT[11.2001 - 03.2002] CDE120,ZZE12#..UKP |
90179-06214 |
from US $1.60 |
||
|
53702
|
53702
53702-02041
Apron Sub-Assy, Front Fender, Lh
[03.2002 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
53702-02041 |
— | ||
|
53711B
|
53711B
53711-02902
Apron, Front Fender, Front Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53711-02902 |
— | ||
|
53712B
|
53712B
53712-02902
Apron, Front Fender, Front Lh
[11.2001 - 03.2002] CDE120,ZZE12#..UKP |
53712-02902 |
— | ||
|
53712B
|
53712B
53712-02908
Apron, Front Fender, Front Lh
[03.2002 - 05.2004] CDE120,ZZE12#..UKP |
53712-02908 |
— | ||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[11.2001 - 03.2002] CDE120,ZZE12#..UKP |
53714-13020 |
US $4.80 |
||
|
53714C
|
53714C
53714-20100 Extension, Front Fender Apron, Front Lh[03.2002 - 05.2004] CDE120,ZZE12#..UKP |
53714-20100 |
US $5.24 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-02090
Member, Front Apron To Cowl Side, Upper Rh
[01.2003 - 09.2003] CDE120,ZZE12#..UKP (L) |
53731-02090 |
— | ||
| replacement | |||||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[01.2003 - 09.2003] CDE120,ZZE12#..UKP (L) |
53731-12160 |
from US $20.09 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
53731-12160 |
from US $20.09 |
||
|
53732D
|
53732D
53732-02070
Member, Front Apron To Cowl Side, Upper Lh
[01.2003 - 07.2003] CDE120,ZZE12#..UKP (L) |
53732-02070 |
— | ||
| replacement | |||||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[01.2003 - 07.2003] CDE120,ZZE12#..UKP (L) |
53732-12140 |
US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-02040
Plate, Front Apron To Cowl Side Member, Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
53737-02040 |
— | ||
|
53737
|
53737
53737-12060 Plate, Front Apron To Cowl Side Member, Rh[11.2001 - 07.2003] CDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC) |
53737-12060 |
US $6.70 |
||
|
53738
|
53738
53738-02030
Plate, Front Apron To Cowl Side Member, Lh
[01.2003 - 07.2003] CDE120,ZZE12#..UKP (L) |
53738-02030 |
— | ||
|
53738
|
53738
53738-12030 Plate, Front Apron To Cowl Side Member, Lh[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
53738-12030 |
US $6.70 |
||
|
53813C
|
53813C
53813-12080 Extension, Front Fender, RhFRONT FENDER, RH [11.2001 - 05.2004] CDE120,ZZE12#..UKP |
53813-12080 |
US $8.30 |
||
|
53814C
|
53814C
53814-12020 Extension, Front Fender, Lh[03.2002 - 05.2004] CDE120,ZZE12#..UKP |
53814-12020 |
US $5.97 |
||
|
55101
|
55101
55101-02260
Panel Sub-Assy, Dash
[11.2001 - 05.2004] CDE120..UKP..RHD..(DCR,DCRL) |
55101-02260 |
— | ||
|
55210
|
55210
55210-02070
Insulator Assy, Dash Panel
[11.2001 - 01.2004] CDE120,ZZE12#..UKP..RHD |
55210-02070 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-02071
Insulator Assy, Dash Panel
[11.2001 - 01.2004] CDE120,ZZE12#..UKP..RHD |
55210-02071 |
— | ||
|
55210
|
55210
55210-02071
Insulator Assy, Dash Panel
[01.2004 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55210-02071 |
— | ||
|
55210A
|
55210A
90467-11021-01 Piece, Front Bumper[11.2001 - 05.2004] ZZE123..UKP BLACK,TRIM1#; CDE120,ZZE120,121..UKP..TERRA BLACK,TRIM1#,8#; CDE120,ZZE120,121..UKP..SOL BLACK,TRIM0#,1# |
90467-11021-01 |
US $4.80 |
||
|
55223A
|
55223A
55223-02060
Insulator, Dash Panel, Outer
[11.2001 - 06.2002] CDE120,ZZE12#..UKP..RHD |
55223-02060 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-05072 Insulator, Dash Panel, Outer[11.2001 - 06.2002] CDE120,ZZE12#..UKP..RHD |
55223-05072 |
US $144.14 |
||
|
55223A
|
55223A
55223-05070
Insulator, Dash Panel, Outer
[06.2002 - 08.2003] CDE120,ZZE12#..UKP..RHD |
55223-05070 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-05072 Insulator, Dash Panel, Outer[06.2002 - 08.2003] CDE120,ZZE12#..UKP..RHD |
55223-05072 |
US $144.14 |
||
|
55223A
|
55223A
55223-05071 Insulator, Dash Panel, Outer[08.2003 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55223-05071 |
US $119.39 |
||
| replacement | |||||
|
55223A
|
55223A
55223-05072 Insulator, Dash Panel, Outer[08.2003 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55223-05072 |
US $144.14 |
||
|
55257
|
55257
55257-13010 Cover, Dash Panel Opening[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
55257-13010 |
US $2.91 |
||
|
55738E
|
55738E
55739-02010
Stopper, Hood, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
55739-02010 |
— | ||
|
55739F
|
55739F
55739-02010
Stopper, Hood, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
55739-02010 |
— | ||
|
57104A
|
57104A
57104-02050
Member Sub-Assy, Front Cross
[11.2001 - 02.2002] CDE120,ZZE12#..UKP |
57104-02050 |
— | ||
| replacement | |||||
|
57104A
|
57104A
57104-02051
Member Sub-Assy, Front Cross
[11.2001 - 02.2002] CDE120,ZZE12#..UKP |
57104-02051 |
— | ||
|
57104A
|
57104A
57104-02051
Member Sub-Assy, Front Cross
[02.2002 - 01.2003] CDE120,ZZE12#..UKP |
57104-02051 |
— | ||
|
57104A
|
57104A
57104-02090
Member Sub-Assy, Front Cross
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
57104-02090 |
— | ||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[11.2001 - 01.2003] CDE120,ZZE12# |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[11.2001 - 01.2003] CDE120,ZZE12# |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12110 Gusset, Front Crossmember Side, Rh[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
57167-12110 |
US $26.21 |
||
|
57168B
|
57168B
57168-12110 Gusset, Front Crossmember Side, Lh[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
57168-12110 |
from US $23.59 |
||
|
57169
|
57169
57169-02040
Member, Front Floor, Front Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
57169-02040 |
— | ||
|
57169
|
57169
57169-12020 Member, Front Floor, Front Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP (J) |
57169-12020 |
US $39.89 |
||
|
57218
|
57218
57218-05010 Gusset, Front Side Member, No.1[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
57218-05010 |
US $30.43 |
||
|
57218
|
57218
57218-13010 Gusset, Front Side Member, No.1FRONT SIDE MEMBER, NO.1 [11.2001 - 01.2003] CDE120,ZZE12#..UKP |
57218-13010 |
US $17.91 |
||
|
57219
|
57219
57219-05010 Gusset, Front Side Member, No.2[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
57219-05010 |
US $32.03 |
||
|
57219
|
57219
57219-13010
Gusset, Front Side Member, No.2
[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
57219-13010 |
— | ||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9008011513
|
9008011513
90080-11513
New Genuine Part
|
90080-11513 |
— | ||
| replacement | |||||
|
9008011513
|
9008011513
90105-W0010 New Genuine Part |
90105-W0010 |
US $1.16 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.92 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.87 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
|
9095006125
|
9095006125
90950-06125 TAPE SEAL |
90950-06125 |
from US $1.99 |
||
