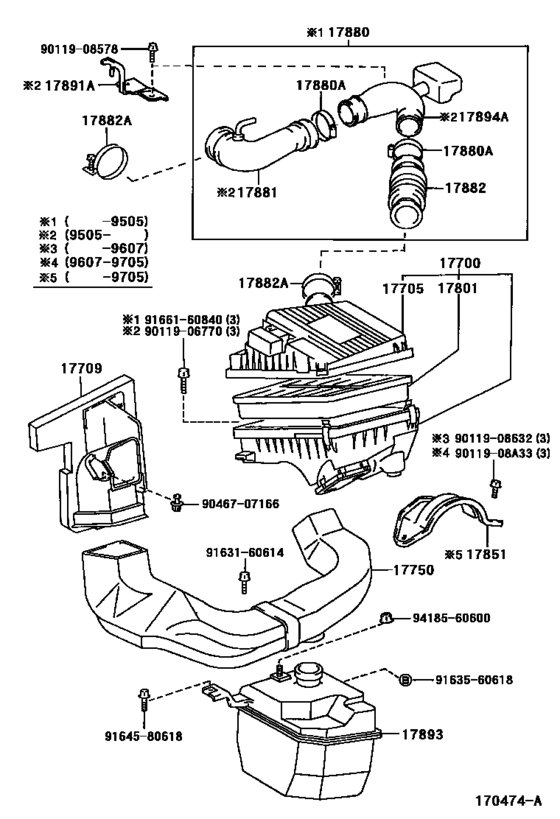

Air Cleaner ([06.1991 - 04.1998] (9106-9804)2C) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- CE100
- grade
- DX
- body
- 4DS
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64270 Cleaner Assy, Air[06.1991 - 05.1995] 2C..CE10# |
17700-64270 |
US $422.24 |
||
|
17705
|
17705
17705-64160
Cap Sub-Assy, Air Cleaner
[06.1991 - 04.1997] 2C..CE10# |
17705-64160 |
— | ||
|
17709
|
17709
17709-64010 Inlet Sub-Assy, Air Cleaner[06.1991 - 05.1993] 2C..CE10# |
17709-64010 |
US $88.82 |
||
| replacement | |||||
|
17709
|
17709
17709-64011 Inlet Sub-Assy, Air Cleaner[06.1991 - 05.1993] 2C..CE10# |
17709-64011 |
US $90.27 |
||
|
17709
|
17709
17709-64011 Inlet Sub-Assy, Air Cleaner[05.1993 -] 2C,3CE..CE10# |
17709-64011 |
US $90.27 |
||
|
17750
|
17750
17750-64010 Cover Assy, Air Cleaner Inlet, Seal[06.1991 - 05.1995] 2C..CE10# |
17750-64010 |
US $74.26 |
||
|
17801
|
17801
17801-64070 Element Sub-Assy, Air Cleaner Filter[06.1991 -] 2C,3CE..CE10# |
17801-64070 |
from US $26.73 |
||
|
17851
|
17851
17851-64030 Bracket, Air Cleaner Support[06.1991 - 05.1995] 2C..CE10# |
17851-64030 |
US $29.99 |
||
|
17880
|
17880
17880-64190 Hose Assy, Air Cleaner[06.1991 - 05.1992] 2C..CE10# |
17880-64190 |
US $84.45 |
||
|
17880
|
17880
17880-64191 Hose Assy, Air Cleaner[05.1992 - 05.1995] 2C..CE10# |
17880-64191 |
US $84.45 |
||
|
17880A
|
17880A
90460-65007 Clamp, Hose(For Air Hose, No.3)[06.1991 - 02.1997] 2C..CE10# |
90460-65007 |
US $5.39 |
||
| replacement | |||||
|
17880A
|
17880A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[06.1991 - 02.1997] 2C..CE10# |
90460-65002 |
from US $4.10 |
||
|
17882
|
17882
17882-64070
Hose, Air Cleaner, No.2
[06.1991 - 04.1998] 2C..CE10# |
17882-64070 |
— | ||
|
17882A
|
17882A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[06.1991 - 04.1998] 2C..CE10# |
96111-10650 |
from US $2.77 |
||
|
17893
|
17893
17893-15040 Resonator, Intake Air[06.1991 - 05.1995] 2C..CE10#; 4EFE,5EFE..EE101,102,103,104 （Ｊ）; 4A#,5AFE..AE10# （Ｊ） |
17893-15040 |
US $106.29 |
||
|
9011908A33
|
9011908A33
90119-08A33 BOLT |
90119-08A33 |
from US $0.80 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.05 |
||
|
9011908578
|
9011908578
90119-08578 New Genuine Part |
90119-08578 |
US $1.89 |
||
| replacement | |||||
|
9011908578
|
9011908578
90119-08B80 New Genuine Part |
90119-08B80 |
US $1.75 |
||
|
9011908632
|
9011908632
90119-08632 New Genuine Part |
90119-08632 |
US $2.04 |
||
| replacement | |||||
|
9011908632
|
9011908632
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.01 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.72 |
||
|
9163560618
|
9163560618
91635-60618 New Genuine Part |
91635-60618 |
US $2.62 |
||
| replacement | |||||
|
9163560618
|
9163560618
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.94 |
||
|
9164580618
|
9164580618
91645-80618
Direct
|
91645-80618 |
— | ||
| replacement | |||||
|
9164580618
|
9164580618
91641-C0614 Bolt |
91641-C0614 |
from US $0.74 |
||
|
9166160840
|
9166160840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
||
