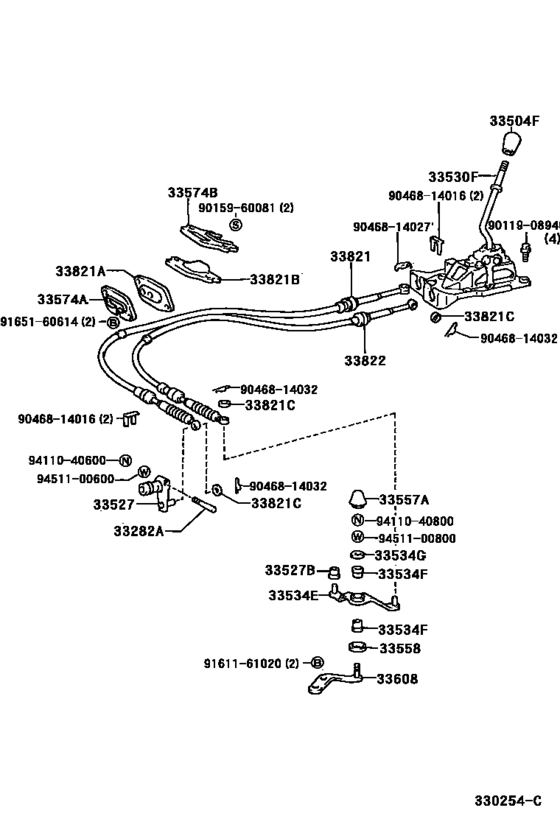

Shift Lever & Retainer ([05.1992 - 05.1995] (9205-9505)CE100) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33282A
|
33282A
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[05.1992 - 11.2001] CE100 |
33282-35010 |
from US $2.56 |
||
|
33504F
|
33504F
33504-12180-J0 Knob Sub-Assy, Shift Lever[08.1991 - 05.1993] AE10#,CE100,EE100,101,105..5F..(GL,GLI,LX,SEG,XL,XLI) DARK BLUE,TRIM8# |
33504-12180-J0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[08.1991 - 05.1993] AE10#,CE100,EE100,101,105..5F..(GL,GLI,LX,SEG,XL,XLI) DARK BLUE,TRIM8# |
33504-12180-B7 |
from US $36.33 |
||
|
33504F
|
33504F
33504-12180-K0 Knob Sub-Assy, Shift Lever[08.1991 - 05.1995] AE100,101,CE100,EE100,101..SED..5F..(GL,GLI,LX,SEG,XL,XLI) TAUPE,TRIM9# |
33504-12180-K0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[08.1991 - 05.1995] AE100,101,CE100,EE100,101..SED..5F..(GL,GLI,LX,SEG,XL,XLI) TAUPE,TRIM9# |
33504-12180-B7 |
from US $36.33 |
||
|
33504F
|
33504F
33504-12180-P0
Knob Sub-Assy, Shift Lever
[08.1991 - 05.1996] AE100,101,CE100,EE100,101,105..5F..(GL,GLI,LX,SEG,XL,XLI) SHADOW GRAY,TRIM1# |
33504-12180-P0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[08.1991 - 05.1996] AE100,101,CE100,EE100,101,105..5F..(GL,GLI,LX,SEG,XL,XLI) SHADOW GRAY,TRIM1# |
33504-12180-B7 |
from US $36.33 |
||
|
33527
|
33527
33527-32010 Lever, Control Shift (For Floor Shift)[05.1992 - 11.2001] CE100 |
33527-32010 |
US $56.06 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[05.1992 - 11.2001] CE100 |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-12620
Lever Assy, Shift (For Floor Shift)
[05.1992 - 05.1995] AE101,CE100,EE100,105..LHD..MTM |
33530-12620 |
— | ||
|
33530F
|
33530F
33530-12680 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [05.1995 - 05.1996] AE101,CE100,EE100,105..LHD..MTM |
33530-12680 |
US $202.38 |
||
| replacement | |||||
|
33530F
|
33530F
33530-12681 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [05.1995 - 05.1996] AE101,CE100,EE100,105..LHD..MTM |
33530-12681 |
US $203.84 |
||
|
33530F
|
33530F
33530-12681 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [03.1997 - 10.1999] EE100..5F..(GCC,TUR);EE100..LHD..(GL,STD);AE10#,CE100,EE105..LHD..MTM |
33530-12681 |
US $203.84 |
||
|
33534E
|
33534E
33534-33010
Crank, Selecting Bell, No.2
[05.1992 - 11.2001] CE100 |
33534-33010 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
90386-12022 |
US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-32010
Cover, Selecting Bellcrank Dust, No.2
[05.1992 - 11.2001] CE100 |
33558-32010 |
— | ||
|
33574A
|
33574A
33574-12080 Retainer, Dust Seal (For Column Shift Control Shaft)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
33574-12080 |
US $7.16 |
||
|
33574B
|
33574B
33574-12060
Retainer, Shift Cable Grommet, No.2
[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
33574-12060 |
— | ||
|
33608
|
33608
33608-33010 Support Sub-Assy, Selecting Bellcrank[05.1992 - 11.2001] CE100 |
33608-33010 |
US $18.08 |
||
|
33821
|
33821
33821-12490 Cable Transmission Control Shift (For Floor Shift)[05.1992 - 05.1995] CE100 |
33821-12490 |
US $263.54 |
||
|
33821
|
33821
33821-12740
Cable Transmission Control Shift (For Floor Shift)
[05.1995 -] CE100 |
33821-12740 |
— | ||
|
33821A
|
33821A
90480-01400 Grommet, No.1 (For Transmission Control Cable)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
90480-01400 |
US $4.54 |
||
|
33821B
|
33821B
90480-01398
Grommet, No.2 (For Transmission Control Cable)
[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM |
90480-01398 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM OD=30,TRANSAXLE SIDE |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[08.1991 - 09.1994] AE100,101,CE100,EE10#..MTM SHIFT LEVER SIDE |
90201-10042 |
from US $1.44 |
||
|
33822
|
33822
33822-12220 Cable Transmission Control Select (For Floor Shift)[05.1992 - 05.1995] CE100 |
33822-12220 |
US $234.42 |
||
|
33822
|
33822
33822-12310
Cable Transmission Control Select (For Floor Shift)
[05.1995 -] CE100 |
33822-12310 |
— | ||
|
9011908946
|
9011908946
90119-08946
New Genuine Part
|
90119-08946 |
— | ||
| replacement | |||||
|
9011908946
|
9011908946
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814027
|
9046814027
90468-14027 CLIP |
90468-14027 |
US $1.49 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
