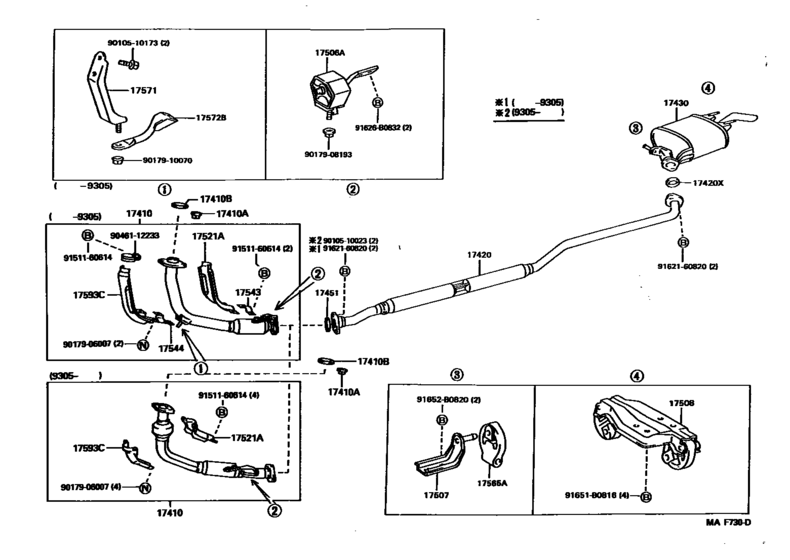

Exhaust Pipe ([05.1992 - ] W/O(CONVERTER) (9205- )2C) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- CE100
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-64532 Pipe Assy, Exhaust, Front[05.1992 - 05.1993] 2C..CE100 |
17410-64532 |
from US $190.77 |
||
|
17410
|
17410
17410-64600 Pipe Assy, Exhaust, Front[05.1993 - 05.1995] 2C..CE100 |
17410-64600 |
US $289.74 |
||
| replacement | |||||
|
17410
|
17410
17410-64601 Pipe Assy, Exhaust, Front[05.1993 - 05.1995] 2C..CE100 |
17410-64601 |
US $289.74 |
||
|
17410
|
17410
17410-64601 Pipe Assy, Exhaust, Front[05.1995 -] 2C..CE100 |
17410-64601 |
US $289.74 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1992 - 05.1996] 7AFE,2C..AE103,CE100 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1992 - 05.1996] 7AFE,2C..AE103,CE100 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[05.1992 - 05.1993] 2C..CE100 |
90917-06061 |
from US $5.56 |
||
|
17410B
|
17410B
90917-06077 Gasket, Exhaust Pipe[05.1993 -] 2C..CE100 |
90917-06077 |
from US $7.43 |
||
|
17420
|
17420
17420-64131 Pipe Assy, Exhaust, Center[05.1992 - 05.1993] 2C..CE100 |
17420-64131 |
US $476.11 |
||
|
17420
|
17420
17420-64200 Pipe Assy, Exhaust, Center[05.1993 - 05.1996] 2C..CE100 W/O(CONVERTER) |
17420-64200 |
US $521.25 |
||
|
17420
|
17420
17420-64210 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1993 - 05.1996] 2C..CE100..LHD W(CONVERTER) |
17420-64210 |
US $521.25 |
||
|
17420X
|
17420X
90917-06074 Gasket, Exhaust Pipe, Center[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
90917-06074 |
from US $6.94 |
||
|
17430
|
17430
17430-64680 Pipe Assy, Exhaust, Tail[05.1992 -] 2C..CE100 |
17430-64680 |
US $401.86 |
||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1993 - 05.1996] 2C..CE100 W/O(CONVERTER) |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17451
|
17451
90080-43028 Gasket, Exhaust Pipe[05.1993 - 05.1996] 2C..CE100 W/O(CONVERTER) |
90080-43028 |
US $19.44 |
||
|
17451
|
17451
90917-06074 Gasket, Exhaust Pipe, Center[05.1992 - 05.1993] 2C,2E..CE100,EE100 |
90917-06074 |
from US $6.94 |
||
|
17506A
|
17506A
17506-16090 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16090 |
US $37.42 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [05.1992 - 02.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17506A
|
17506A
17506-16140 Bracket Sub-Assy, Exhaust Pipe No.1 SupportEXHAUST PIPE NO.1 SUPPORT [02.1995 - 05.1995] 4AFE,2C,4EFE..AE101,CE100,EE101 |
17506-16140 |
US $37.56 |
||
|
17507
|
17507
17507-15040
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17507-15040 |
— | ||
|
17508
|
17508
17508-15050
Support Sub-Assy, Exhaust Pipe, No.3
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17508-15050 |
— | ||
|
17521A
|
17521A
17521-64040 Protector, Exhaust Pipe, Upper No.1[05.1992 - 05.1993] 2C..CE100 |
17521-64040 |
US $27.23 |
||
|
17521A
|
17521A
17521-64100 Protector, Exhaust Pipe, Upper No.1[05.1993 -] 2C..CE100 |
17521-64100 |
US $52.85 |
||
|
17543
|
17543
17543-64010 Stay, Exhaust Pipe Protector, No.3[05.1992 - 05.1993] 2C..CE100 |
17543-64010 |
US $12.67 |
||
|
17544
|
17544
17544-64010 Stay, Exhaust Pipe Protector, No.4[05.1992 - 05.1993] 2C..CE100 |
17544-64010 |
US $11.65 |
||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[05.1992 -] 4AFE,2C,2E,4EFE..AE101,CE100,EE10# |
17565-28020 |
US $7.04 |
||
|
17571
|
17571
17571-64130 Bracket, Exhaust Pipe Support, No.1[05.1992 - 05.1993] 2C..CE100 |
17571-64130 |
US $18.93 |
||
|
17572B
|
17572B
17572-64120 Bracket, Exhaust Pipe Support, No.2[05.1992 - 05.1993] 2C..CE100 |
17572-64120 |
US $14.56 |
||
|
17593C
|
17593C
17593-64040 Protector, Exhaust Pipe, Lower No.1[05.1992 - 05.1993] 2C..CE100 |
17593-64040 |
US $27.23 |
||
|
17593C
|
17593C
17593-64090 Protector, Exhaust Pipe, Lower No.1[05.1993 -] 2C..CE100 |
17593-64090 |
US $52.85 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91652B0820
|
91652B0820
91652-B0820
Bolt, Radiator Side Support Plate
|
91652-B0820 |
— | ||
| replacement | |||||
|
91652B0820
|
91652B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.98 |
||
|
9010510173
|
9010510173
90105-10173
New Genuine Part
|
90105-10173 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9046112233
|
9046112233
90461-12233 Clamp |
90461-12233 |
US $5.78 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.94 |
||
