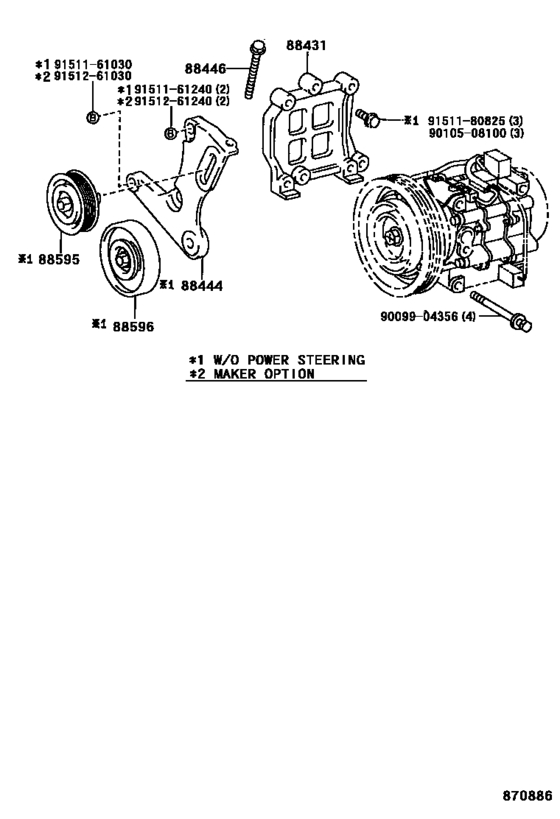

Heating & Air Conditioning - Compressor ([05.1992 - ] (9205- )CE100) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- CE100
- grade
- XL
- body
- HB
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-12510
Bracket, Compressor Mounting, No.1
[05.1992 - 04.1997] CE100 |
88431-12510 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-12511
Bracket, Compressor Mounting, No.1
[05.1992 - 04.1997] CE100 |
88431-12511 |
— | ||
|
88444
|
88444
88444-12050
Bracket, Idle Pulley
[05.1992 - 05.1995] CE100 |
88444-12050 |
— | ||
|
88446
|
88446
88446-12020
Bolt, Idle Pulley
[05.1992 - 05.1995] CE100 |
88446-12020 |
— | ||
|
88595
|
88595
88440-12100 Pulley, Cooler Compressor Idle[05.1992 - 05.1993] CE100 |
88440-12100 |
US $103.38 |
||
|
88595
|
88595
88440-12170 Pulley Assy, Power Steering Idle[05.1993 - 02.1994] CE100,EE10# |
88440-12170 |
from US $85.90 |
||
|
88596
|
88596
88440-12190
Pulley Assy, Idle
[05.1992 - 04.1997] CE100 |
88440-12190 |
— | ||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151161240
|
9151161240
91511-61240
New Genuine Part
|
91511-61240 |
— | ||
| replacement | |||||
|
9151161240
|
9151161240
90091-41202
New Genuine Part
|
90091-41202 |
— | ||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151261240
|
9151261240
91512-61240 New Genuine Part |
91512-61240 |
US $3.49 |
||
