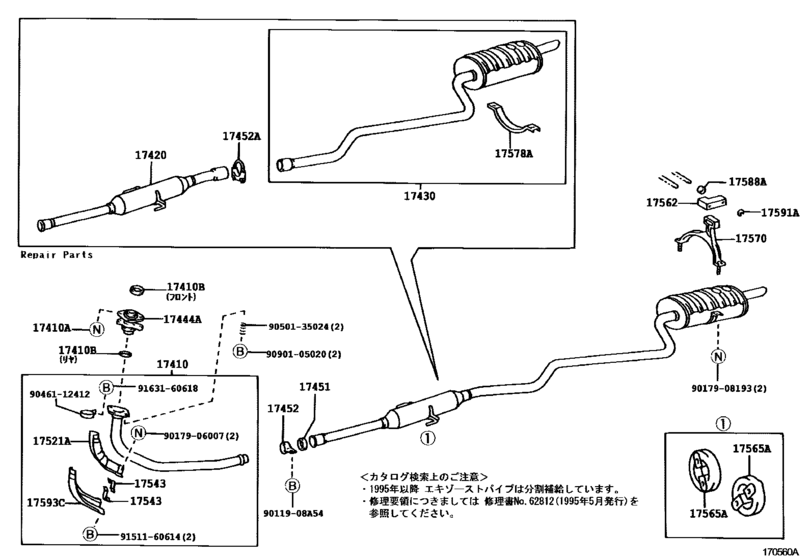

Exhaust Pipe ([04.1997 - 04.1998] (9704-9804)2C..CE110) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-64691 Pipe Assy, Exhaust, Front[05.1995 - 04.1997] 2C..CE110 |
17410-64691 |
US $259.17 |
||
|
17410
|
17410
17410-64780 Pipe Assy, Exhaust, Front[04.1997 - 04.1998] 2C..CE110 |
17410-64780 |
US $168.90 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1995 - 04.1997] 2C..CE11# |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1995 - 04.1997] 2C..CE11# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[04.1997 - 04.1998] 2C..CE110 フロント; 2C..CE114 |
90917-06061 |
from US $5.56 |
||
|
17410B
|
17410B
90917-06077 Gasket, Exhaust Pipe[05.1995 - 04.1997] 2C..CE110 |
90917-06077 |
from US $7.43 |
||
|
17410B
|
17410B
90917-06080 Gasket, Exhaust Pipe[04.1997 - 04.1998] 2C..CE110 リヤ |
90917-06080 |
from US $16.03 |
||
|
17420
|
17420
17420-64270 Pipe Assy, Exhaust, Center[05.1995 - 04.1997] 2C..CE110 |
17420-64270 |
US $276.64 |
||
|
17420
|
17420
17420-64290 Pipe Assy, Exhaust, Center[04.1997 - 04.1998] 2C..CE110 |
17420-64290 |
US $429.52 |
||
| replacement | |||||
|
17420
|
17420
17420-64291 Pipe Assy, Exhaust, Center[04.1997 - 04.1998] 2C..CE110 |
17420-64291 |
US $429.52 |
||
|
17430
|
17430
17430-6A120 Pipe Assy, Exhaust, Tail[05.1995 - 04.1997] 2C..CE110 |
17430-6A120 |
US $505.23 |
||
| replacement | |||||
|
17430
|
17430
17430-6A121 Pipe Assy, Exhaust, Tail[05.1995 - 04.1997] 2C..CE110 |
17430-6A121 |
US $505.23 |
||
|
17430
|
17430
17430-6A230 Pipe Assy, Exhaust, Tail[04.1997 - 04.1998] 2C..CE110 |
17430-6A230 |
US $505.23 |
||
| replacement | |||||
|
17430
|
17430
17430-6A231 Pipe Assy, Exhaust, Tail[04.1997 - 04.1998] 2C..CE110 |
17430-6A231 |
US $471.74 |
||
|
17444A
|
17444A
17444-64030 Spacer, Exhaust Front Pipe[04.1997 - 08.2000] 2C,3CE..CE110,113 |
17444-64030 |
US $90.27 |
||
|
17451
|
17451
90917-06082 Gasket, Exhaust Pipe, Center[05.1995 - 04.1997] 5AFE,2C,4EFE..AE110,CE110,EE111 |
90917-06082 |
from US $7.04 |
||
|
17452
|
17452
90461-15013 Clamp, Exhaust Pipe[05.1995 - 04.1997] 2C..CE110 |
90461-15013 |
from US $13.32 |
||
|
17452A
|
17452A
17452-15020 Clamp, Exhaust Pipe[05.1995 - 04.1997] 2C..CE110; 5AFE,4EFE..AE110,EE111 リヤ |
17452-15020 |
US $18.78 |
||
|
17521A
|
17521A
17521-64120 Protector, Exhaust Pipe, Upper No.1[05.1995 - 04.1997] 2C..CE110 |
17521-64120 |
US $35.82 |
||
|
17521A
|
17521A
17521-64170 Protector, Exhaust Pipe, Upper No.1[04.1997 - 08.2000] 2C,3CE..CE110,113 |
17521-64170 |
US $27.23 |
||
|
17543
|
17543
17543-26010 Stay, Exhaust Pipe Protector, No.3[04.1997 - 08.2000] 2C,3CE..CE110,113 |
17543-26010 |
US $7.43 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[05.1995 - 04.1997] 4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111 |
17562-16240 |
from US $17.92 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[04.1997 - 08.2000] 2C,3CE..CE110,113 |
17565-11160 |
from US $9.17 |
||
|
17570
|
17570
17570-16010 Bracket Assy, Exhaust Pipe Support[05.1995 - 04.1997] 4AFE,5AFE,2C,4EFE..AE110,111,CE11#,EE111 |
17570-16010 |
US $19.76 |
||
|
17578A
|
17578A
17578-64010
Clamp, Muffler
[05.1995 - 04.1997] 5AFE,2C,4EFE..AE110,CE110,EE111 |
17578-64010 |
— | ||
| replacement | |||||
|
17578A
|
17578A
17578-11020 Clamp, Muffler[05.1995 - 04.1997] 5AFE,2C,4EFE..AE110,CE110,EE111 |
17578-11020 |
from US $23.58 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[05.1995 - 04.1997] 4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111 |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[05.1995 - 04.1997] 4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111 |
17591-16020 |
from US $0.78 |
||
|
17593C
|
17593C
17593-64110 Protector, Exhaust Pipe, Lower No.1[05.1995 - 04.1997] 2C..CE110 |
17593-64110 |
US $53 |
||
|
17593C
|
17593C
17593-64140 Protector, Exhaust Pipe, Lower No.1[04.1997 - 08.2000] 2C,3CE..CE110,113 |
17593-64140 |
US $27.23 |
||
|
9011908A54
|
9011908A54
90119-08A54 BOLT WWASHER |
90119-08A54 |
US $2.08 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9046112412
|
9046112412
90461-12412 New Genuine Part |
90461-12412 |
US $5.78 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
US $14.24 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.82 |
||
