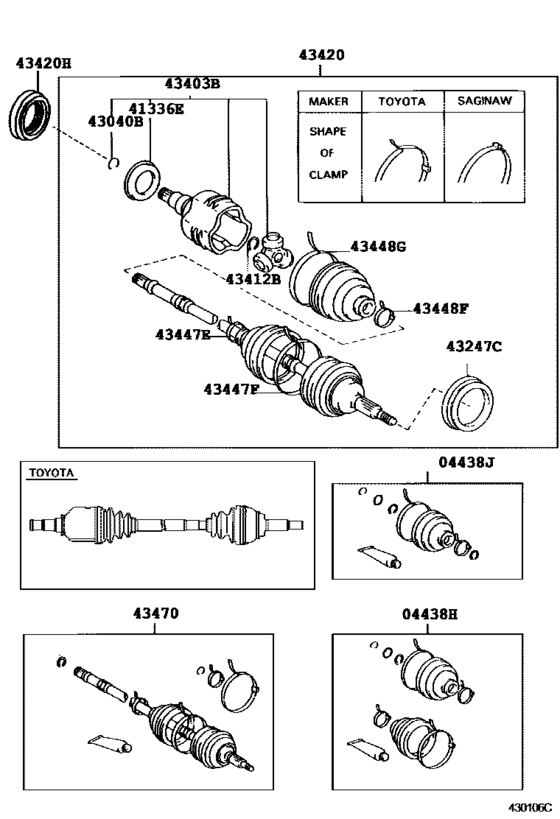

Front Drive Shaft ([05.1995 - ] TOYOTA,LH (9505- )AE11#,CE11#) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-12290
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.1995 - 04.1997] CE110 |
04438-12290 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.1995 - 04.1997] CE110 |
04438-20134 |
— | ||
|
04438J
|
04438J
04438-12260 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.1995 - 11.1995] CE110 |
04438-12260 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[05.1995 - 11.1995] CE110 |
04438-42201 |
from US $66.73 |
||
|
04438J
|
04438J
04438-12420 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1995 - 04.1997] CE110 |
04438-12420 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1995 - 04.1997] CE110 |
04438-42201 |
from US $66.73 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[05.1995 - 04.1997] CE110 |
41336-32020 |
US $4.89 |
||
|
43040B
|
43040B
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[05.1995 - 04.1997] CE110 |
90521-27005 |
US $1.76 |
||
|
43247C
|
43247C
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[05.1995 - 04.1997] AE114,CE11#,EE111 ｱﾘ(ABS) |
43247-12010 |
from US $10.37 |
||
|
43247C
|
43247C
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[05.1995 - 05.1996] AE110,111 ＴＯＹＯＴＡ; AE114,CE11#,EE111 |
43247-33010 |
US $36.48 |
||
|
43403B
|
43403B
43040-20010
Joint Assy, Front Drive Inboard, Rh
[05.1995 - 04.1997] CE110 |
43040-20010 |
— | ||
| replacement | |||||
|
43403B
|
43403B
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[05.1995 - 04.1997] CE110 |
43040-32040 |
from US $227.14 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[05.1995 - 04.1997] AE110,111 ＴＯＹＯＴＡ; AE114,CE11# |
90520-22005 |
from US $1.24 |
||
|
43420
|
43420
43420-12320 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] CE110 |
43420-12320 |
US $963.87 |
||
| replacements | |||||
|
43420
|
43420
43420-12323 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] CE110 |
43420-12323 |
US $963.87 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] CE110 |
90178-22001 |
from US $3.84 |
||
|
43420
|
43420
43420-12321 Shaft Assy, Front Drive, Lh[09.1997 - 01.1999] CE110,113..DX |
43420-12321 |
US $963.87 |
||
| replacement | |||||
|
43420
|
43420
43420-12323 Shaft Assy, Front Drive, Lh[09.1997 - 01.1999] CE110,113..DX |
43420-12323 |
US $963.87 |
||
|
43420
|
43420
43420-12340 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] CE110 ｱﾘ(ABS) |
43420-12340 |
US $963.87 |
||
| replacements | |||||
|
43420
|
43420
43420-12343 Shaft Assy, Front Drive, Lh[05.1995 - 05.1996] CE110 ｱﾘ(ABS) |
43420-12343 |
from US $706.45 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] CE110 ｱﾘ(ABS) |
90178-22001 |
from US $3.84 |
||
|
43420
|
43420
43420-12341 Shaft Assy, Front Drive, Lh[09.1997 - 01.1999] CE110,113 ｱﾘ(ABS) |
43420-12341 |
US $963.87 |
||
| replacement | |||||
|
43420
|
43420
43420-12343 Shaft Assy, Front Drive, Lh[09.1997 - 01.1999] CE110,113 ｱﾘ(ABS) |
43420-12343 |
from US $706.45 |
||
|
43420H
|
43420H
90311-35019 Seal, Oil, No.2(For Transaxle Case)[05.1995 - 07.1995] CE110..5F |
90311-35019 |
from US $6.40 |
||
|
43420H
|
43420H
90311-35033 Seal, Oil, No.2(For Transaxle Case)[07.1995 - 04.1997] CE110..5F |
90311-35033 |
from US $6.40 |
||
|
43420H
|
43420H
90311-35048 Oil Seal, Front Drive Shaft, Lh[02.2000 - 08.2000] CE113..5F |
90311-35048 |
from US $4.64 |
||
|
43447E
|
43447E
42345-16030 Clamp, Rear Drive Shaft Boot[05.1995 - 04.1997] AE114,CE11# |
42345-16030 |
US $8.56 |
||
|
43447F
|
43447F
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[05.1995 - 04.1997] AE114,CE11# |
42345-16040 |
— | ||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[05.1995 - 01.1996] AE114,CE11# |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[05.1995 - 04.1997] AE114,CE11# |
42345-16040 |
— | ||
|
43470
|
43470
43470-29345 Shaft Assy, Front Drive Outboard Joint, Rh[05.1995 - 05.1996] CE110 |
43470-29345 |
US $559.10 |
||
| replacements | |||||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[05.1995 - 05.1996] CE110 |
43470-29349 |
from US $422.16 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[05.1995 - 05.1996] CE110 |
90178-22001 |
from US $3.84 |
||
|
43470
|
43470
43470-29346 Shaft Assy, Front Drive Outboard Joint, Lh[09.1997 - 04.1998] CE110..DX |
43470-29346 |
US $560.56 |
||
| replacement | |||||
|
43470
|
43470
43470-29349 Shaft Assy, Front Drive Outboard Joint, Rh[09.1997 - 04.1998] CE110..DX |
43470-29349 |
from US $422.16 |
||
|
43470
|
43470
43470-29355 Shaft Assy, Front Drive Outboard Joint, Rh[05.1995 - 04.1997] CE110 ｱﾘ(ABS) |
43470-29355 |
US $559.10 |
||
| replacements | |||||
|
43470
|
43470
43470-29359 Shaft Assy, Front Drive Outboard Joint, Rh[05.1995 - 04.1997] CE110 ｱﾘ(ABS) |
43470-29359 |
US $560.56 |
||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[05.1995 - 04.1997] CE110 ｱﾘ(ABS) |
90178-22001 |
from US $3.84 |
||
