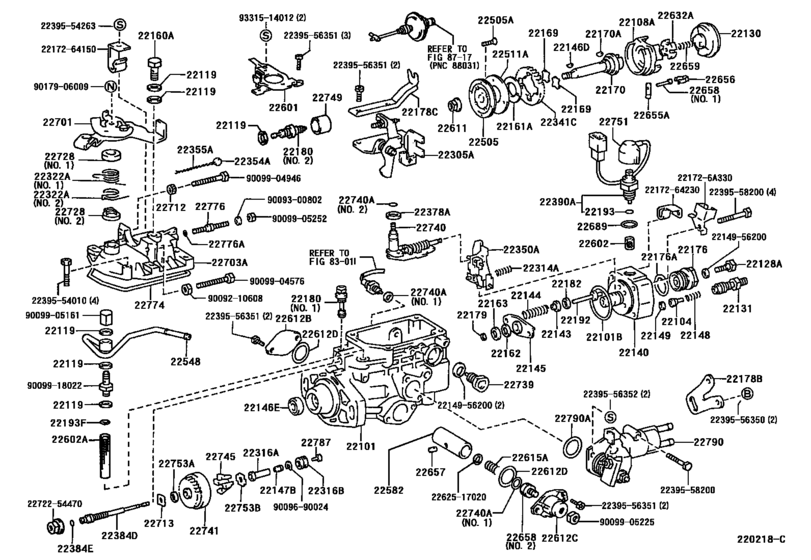

Injection Pump Body ([05.1995 - 04.1998] (9505-9804)2C) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-64020
Housing Sub-Assy, Injection Pump
[05.1995 - 04.1997] 2C..CE11# |
22101-64020 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[05.1995 - 04.1997] 2C..CE11# |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-6A290 Valve Sub-Assy, Injection Pump Delivery[05.1995 - 04.1997] 2C..CE11# |
22104-6A290 |
from US $20.82 |
||
|
22108A
|
22108A
22108-54180
Ring Sub-Assy, Roller
[05.1995 - 04.1997] 2C..CE11# |
22108-54180 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1995 - 04.1997] 2C..CE110;2C..CE114..LX,XESAL |
90201-12109 |
from US $1.33 |
||
|
22128A
|
22128A
22128-54010 Bolt, Distributive Head[05.1995 - 04.1997] 2C..CE11# |
22128-54010 |
US $6.44 |
||
|
22130
|
22130
22130-6A770
Camplate Sub-Assy, Face
[05.1995 - 04.1997] 2C..CE11# |
22130-6A770 |
— | ||
|
22131
|
22131
22190-6A680 Holder, Delivery Valve[05.1995 - 04.1997] 2C..CE11# |
22190-6A680 |
US $19.92 |
||
|
22140
|
22140
22140-6D500 Head Sub-Assy, Distributive Pump[05.1995 - 04.1997] 2C..CE11# |
22140-6D500 |
US $352.62 |
||
|
22143
|
22143
22143-54010 Seat, Spring Upper[05.1995 - 04.1997] 2C..CE11# |
22143-54010 |
US $4.11 |
||
|
22144
|
22144
22144-54190 Spring, Pump Plunger[05.1995 - 04.1997] 2C..CE11# |
22144-54190 |
US $6.53 |
||
|
22145
|
22145
22145-54010 Seat, Spring, Lower[05.1995 - 04.1997] 2C..CE11# |
22145-54010 |
US $18.12 |
||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[05.1995 - 04.1997] 2C..CE11# |
90099-13018 |
from US $6.36 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[05.1995 - 04.1997] 2C..CE11# |
22544-64740 |
US $4.31 |
||
|
22147B
|
22147B
22147-54290 Ring, Governor Sleeve[05.1995 - 04.1997] 2C..CE11# |
22147-54290 |
US $3.71 |
||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[05.1995 - 04.1997] 2C..CE11# |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[05.1995 - 04.1997] 2C..CE11# |
22149-56351 |
from US $0.70 |
||
|
22160A
|
22160A
22160-64010
Screw Sub-Assy, Overflow
[05.1995 - 04.1997] 2C..CE11# |
22160-64010 |
— | ||
|
22161A
|
22161A
22161-54010 Washer, Drive Shaft[05.1995 - 04.1997] 2C..CE11# |
22161-54010 |
US $6.99 |
||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[05.1995 - 04.1997] 2C..CE11# |
22162-54010 |
from US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[05.1995 - 04.1997] 2C..CE11# |
22163-54010 |
from US $3.84 |
||
|
22169
|
22169
22169-54180 Joint, Rubber[05.1995 - 04.1997] 2C..CE11# |
22169-54180 |
US $17.06 |
||
|
22170
|
22170
22170-6A510
Shaft Sub-Assy, Drive
[05.1995 - 04.1997] 2C..CE11# |
22170-6A510 |
— | ||
|
22170A
|
22170A
90099-13017
Key(For Drive Gear)
[05.1995 - 04.1997] 2C..CE11# |
90099-13017 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[05.1995 - 04.1997] 2C..CE11# |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[08.1996 - 04.1997] 2C..CE11# |
22193-54772 |
from US $2.97 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[05.1995 - 08.1996] 2C..CE11# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[05.1995 - 08.1996] 2C..CE11# |
22193-54772 |
from US $2.97 |
||
|
22178B
|
22178B
22178-64010
Bracket(For Injection Pump Assy)
[05.1995 - 04.1997] 2C..CE11# |
22178-64010 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．９ |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．０ |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．１ |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．２ |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．３ |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．４ |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．５ |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．６ |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．７ |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．８ |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．９ |
22179-54020 |
— | ||
|
22180
|
22180
22180-54010
Valve Sub-Assy, Regulator
[05.1995 - 04.1997] 2C..CE110; 2C..CE114 ＮＯ．１ |
22180-54010 |
— | ||
|
22182
|
22182
22182-54010 Plate, Tappet Adjusting Shim[05.1995 - 04.1997] 2C..CE11# 厚さ＝０．５ |
22182-54010 |
US $4.60 |
||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[05.1995 - 04.1997] 2C..CE11# 厚さ＝０．８ |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．０ |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．２ |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．５ |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．８ |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[05.1995 - 04.1997] 2C..CE11# 厚さ＝２．０ |
22188-54010 |
US $4.31 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[05.1995 - 04.1997] 2C..CE11# |
22192-54010 |
US $11.70 |
||
|
22193F
|
22193F
22193-5B320 Ring, O(For Fuel Injection Pump Filter)[09.1996 - 04.1997] 2C..CE11# |
22193-5B320 |
from US $1.42 |
||
|
22305A
|
22305A
22305-6A770
Idle-Up Sub-Assy
[05.1995 - 04.1997] 2C..CE11#..5F |
22305-6A770 |
— | ||
|
22314A
|
22314A
22314-54010 Spring, Lever Support[05.1995 - 04.1997] 2C..CE11# |
22314-54010 |
US $6.03 |
||
|
22316A
|
22316A
22316-6D390
Sleeve, Governor
[05.1995 - 04.1997] 2C..CE11#..5F 内径＝０．９５ |
22316-6D390 |
— | ||
|
22316B
|
22316B
90099-10148 Bearing, Ball(For Governor Sleeve)[05.1995 - 04.1997] 2C..CE11# |
90099-10148 |
US $14.43 |
||
|
22322A
|
22322A
22322-6D090
Spring, Return
[05.1995 - 04.1997] 2C..CE11# ＮＯ．１ |
22322-6D090 |
— | ||
|
22322A
|
22322A
22322-6D110
Spring, Return
[05.1995 - 04.1997] 2C..CE11#..5F ＮＯ．２ |
22322-6D110 |
— | ||
|
22341C
|
22341C
22341-54010 Gear, Governor Drive[05.1995 - 04.1997] 2C..CE11# |
22341-54010 |
US $22.68 |
||
|
22350A
|
22350A
22350-6D560
Governor Assy, Torque Control
[05.1995 - 04.1997] 2C..CE110..5F |
22350-6D560 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[05.1995 - 04.1997] 2C..CE11# |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[05.1995 - 04.1997] 2C..CE11# |
22355-78030 |
from US $1.25 |
||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[05.1995 - 04.1997] 2C..CE11# |
22378-64010 |
US $0.42 |
||
|
22384D
|
22384D
22380-54020 Shaft, Governor[05.1995 - 04.1997] 2C..CE11# |
22380-54020 |
from US $32.32 |
||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[05.1995 - 04.1997] 2C..CE11# |
90099-14049 |
US $2.22 |
||
|
22390A
|
22390A
22390-6A510
Solenoid Assy, Fuel Cut
[05.1995 - 04.1997] 2C..CE110..5F..(DX,LX,XESAL) |
22390-6A510 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-6A511 Solenoid Assy, Fuel Cut[05.1995 - 04.1997] 2C..CE110..5F..(DX,LX,XESAL) |
22390-6A511 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[05.1995 - 04.1997] 2C..CE11# |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723 Screw(For Fuel Feed Pump)[05.1995 - 04.1997] 2C..CE11# |
90099-00723 |
US $0.78 |
||
|
22511A
|
22511A
22511-54020
Cover, Feed Pump
[05.1995 - 04.1997] 2C..CE11# |
22511-54020 |
— | ||
|
22548
|
22548
22548-64150
Nipple, Swivel(For Injection Pump Inlet)
[05.1995 - 04.1997] 2C..CE11# |
22548-64150 |
— | ||
|
22582
|
22582
22582-5B321
Piston Assy, Timer
[05.1995 - 12.1995] 2C..CE11#..5F |
22582-5B321 |
— | ||
|
22601
|
22601
22601-6D580
Bracket Sub-Assy, Idle Up
[05.1995 - 04.1997] 2C..CE11# |
22601-6D580 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[05.1995 - 04.1997] 2C..CE11# |
22602-56350 |
from US $10.31 |
||
|
22602A
|
22602A
22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2[09.1996 - 04.1997] 2C..CE11# |
22602-5B320 |
from US $15.78 |
||
|
22611
|
22611
90099-05166 Nut, Timer Round[05.1995 - 04.1997] 2C..CE11# |
90099-05166 |
US $2.10 |
||
|
22612B
|
22612B
22612-56350
Cover, Timer
[05.1995 - 04.1997] 2C..CE11# |
22612-56350 |
— | ||
|
22612C
|
22612C
22612-17020 Cover, Timer[05.1995 - 12.1995] 2C..CE11#..5F |
22612-17020 |
US $39.49 |
||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[10.1995 - 04.1997] 2C..CE11# |
22193-17840 |
from US $2.73 |
||
|
22612D
|
22612D
90099-14105
Ring, O(For Timer Cover)
[05.1995 - 10.1995] 2C..CE11# |
90099-14105 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[05.1995 - 10.1995] 2C..CE11# |
22193-17840 |
from US $2.73 |
||
|
22615A
|
22615A
22615-17030 Spring, Timer Outer[05.1995 - 12.1995] 2C..CE11#..5F バネ定数＝１．７０，長さ＝２７．９ |
22615-17030 |
US $1.56 |
||
|
22615A
|
22615A
22615-18020
Spring, Timer Outer
[05.1995 - 12.1995] 2C..CE11#..5F バネ定数＝０．１５，長さ＝３２．５ |
22615-18020 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[05.1995 - 04.1997] 2C..CE11# |
22632-54010 |
from US $49.10 |
||
|
22655A
|
22655A
22655-54010 Pin, Timer Slide[05.1995 - 04.1997] 2C..CE11# |
22655-54010 |
US $35.96 |
||
|
22656
|
22656
22656-17840 Clip, Timer[10.1995 - 04.1997] 2C..CE11# |
22656-17840 |
US $0.92 |
||
|
22656
|
22656
22656-54010
Clip, Timer
[05.1995 - 10.1995] 2C..CE11# |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840 Clip, Timer[05.1995 - 10.1995] 2C..CE11# |
22656-17840 |
US $0.92 |
||
|
22657
|
22657
22657-54010 Clip, Timer[05.1995 - 04.1997] 2C..CE11# |
22657-54010 |
US $28.86 |
||
|
22658
|
22658
22658-17020 Stopper, Timer[05.1995 - 12.1995] 2C..CE11#..5F ＮＯ．２ |
22658-17020 |
US $6.47 |
||
|
22658
|
22658
22658-17840 Stopper, Timer[10.1995 - 04.1997] 2C..CE11# ＮＯ．１ |
22658-17840 |
US $1.01 |
||
|
22658
|
22658
22658-54010
Stopper, Timer
[05.1995 - 10.1995] 2C..CE11# ＮＯ．１ |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840 Stopper, Timer[05.1995 - 10.1995] 2C..CE11# ＮＯ．１ |
22658-17840 |
US $1.01 |
||
|
22659
|
22659
22659-64150
Spring, Coupling
[05.1995 - 04.1997] 2C..CE11# |
22659-64150 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[05.1995 - 04.1997] 2C..CE11# |
22689-56350 |
from US $0.70 |
||
|
22701
|
22701
22701-6D090
Lever Sub-Assy, Adjusting
[05.1995 - 04.1997] 2C..CE11#..5F MARK 417 |
22701-6D090 |
— | ||
|
22701
|
22701
22701-6D091
Lever Sub-Assy, Adjusting
[05.1995 - 04.1997] 2C..CE11#..5F MARK 418 |
22701-6D091 |
— | ||
|
22703A
|
22703A
22703-6D090
Cover Sub-Assy, Governor
[05.1995 - 04.1997] 2C..CE110 |
22703-6D090 |
— | ||
|
22712
|
22712
22775-77121 Nut, Rock[05.1995 - 04.1997] 2C..CE11# |
22775-77121 |
US $3.26 |
||
|
22713
|
22713
22713-54010 Washer, Governor Gear Adjusting[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．０５ |
22713-54010 |
US $6.84 |
||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．２５ |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．４５ |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．６５ |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[05.1995 - 04.1997] 2C..CE11# 厚さ＝１．８５ |
22717-54010 |
US $6.84 |
||
|
22728
|
22728
22728-6D090
Guide, Return Spring
[05.1995 - 04.1997] 2C..CE11# ＮＯ．１ |
22728-6D090 |
— | ||
|
22728
|
22728
22728-6D091
Guide, Return Spring
[05.1995 - 04.1997] 2C..CE11# ＮＯ．２ |
22728-6D091 |
— | ||
|
22739
|
22739
22739-54020 Bolt, Governor Link Support[05.1995 - 04.1997] 2C..CE11# |
22739-54020 |
US $12.11 |
||
|
22740
|
22740
22302-6D860
Shaft Sub-Assy, Governor Adjusting
[05.1995 - 04.1997] 2C..CE11#..5F |
22302-6D860 |
— | ||
|
22740A
|
22740A
22193-17020 Ring, O(For Lever Connecting Pin)[05.1995 - 12.1995] 2C..CE11#..5F ＮＯ．３ |
22193-17020 |
from US $1.42 |
||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[05.1995 - 04.1997] 2C..CE11#..5F ＮＯ．２ |
22193-54770 |
from US $2.16 |
||
|
22740A
|
22740A
22193-64750 Ring, O(For Lever Connecting Pin)[05.1995 - 12.1995] 2C..CE11#..5F ＮＯ．１ |
22193-64750 |
from US $0.84 |
||
|
22741
|
22741
22741-54020 Holder Sub-Assy, Flyweight[05.1995 - 04.1997] 2C..CE11# |
22741-54020 |
US $79.46 |
||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[05.1995 - 04.1997] 2C..CE11# |
22745-54010 |
US $36.19 |
||
|
22751
|
22751
22751-6A041
Wire Sub-Assy, Fuel Cut Solenoid
[05.1995 - 04.1997] 2C..CE11# |
22751-6A041 |
— | ||
|
22753A
|
22753A
22753-54010 Washer, Flyweight, No.1[05.1995 - 04.1997] 2C..CE11# |
22753-54010 |
US $1.56 |
||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[05.1995 - 04.1997] 2C..CE11# |
22753-54020 |
US $1.60 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[05.1995 - 04.1997] 2C..CE11# |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[05.1995 - 04.1997] 2C..CE11# |
22776-54110 |
from US $4.72 |
||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[05.1995 - 08.1996] 2C..CE11#..5F |
22193-54771 |
US $1.33 |
||
|
22787
|
22787
22787-54026 Plug, Governor Sleeve[05.1995 - 04.1997] 2C..CE11# 長さ＝３．３ |
22787-54026 |
US $9.38 |
||
|
22787
|
22787
22787-54027 Plug, Governor Sleeve[05.1995 - 04.1997] 2C..CE11# 長さ＝３．４ |
22787-54027 |
US $19.27 |
||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝３．０ |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝３．１ |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝３．２ |
22787-64643 |
— | ||
|
22787
|
22787
22787-64660
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．２ |
22787-64660 |
— | ||
|
22787
|
22787
22787-64661
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．３ |
22787-64661 |
— | ||
|
22787
|
22787
22787-64662
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．４ |
22787-64662 |
— | ||
|
22787
|
22787
22787-64663
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．５ |
22787-64663 |
— | ||
|
22787
|
22787
22787-64664
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．６ |
22787-64664 |
— | ||
|
22787
|
22787
22787-64665
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．７ |
22787-64665 |
— | ||
|
22787
|
22787
22787-64666
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．８ |
22787-64666 |
— | ||
|
22787
|
22787
22787-64667
Plug, Governor Sleeve
[05.1995 - 04.1997] 2C..CE11# 長さ＝２．９ |
22787-64667 |
— | ||
|
22790
|
22790
22790-6D860
Cover Sub-Assy, Timer
[05.1995 - 04.1997] 2C..CE11#..5F |
22790-6D860 |
— | ||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[10.1995 - 04.1997] 2C..CE11# |
22193-17840 |
from US $2.73 |
||
|
22790A
|
22790A
90099-14105
Ring, O(For Timer Cover)
[05.1995 - 10.1995] 2C..CE11# |
90099-14105 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[05.1995 - 10.1995] 2C..CE11# |
22193-17840 |
from US $2.73 |
||
|
221726A330
|
221726A330
22172-6A330 Clip, Connector Support, Solenoid |
22172-6A330 |
US $5.40 |
||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
from US $0.90 |
||
|
2217264150
|
2217264150
22172-64150
Clip, Connector Support, Solenoid
|
22172-64150 |
— | ||
|
2217264230
|
2217264230
22172-64230
Clip, Connector Support, Solenoid
|
22172-64230 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554263
|
2239554263
22395-54263 Bolt, Socket(for Injection Pump Governor Cover) |
22395-54263 |
US $1.48 |
||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239556351
|
2239556351
22395-56351 Bolt, Socket(for Injection Pump Governor Cover) |
22395-56351 |
US $1.48 |
||
|
2239556352
|
2239556352
22395-56352 Bolt, Socket(for Injection Pump Governor Cover) |
22395-56352 |
US $1.48 |
||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2262517020
|
2262517020
22625-17020
Washer, Timer Adjusting
|
22625-17020 |
— | ||
|
2272254470
|
2272254470
22722-54470 Nut, Governor Shaft Rock |
22722-54470 |
US $11.10 |
||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009690024
|
9009690024
90096-90024 Ring, O(For Stopper Lever) |
90096-90024 |
US $1.70 |
||
|
9009904576
|
9009904576
90099-04576 BOLT |
90099-04576 |
US $1.56 |
||
|
9009904946
|
9009904946
90099-04946 Ring, O(For Bellows Cover) |
90099-04946 |
US $4.50 |
||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225 NUT |
90099-05225 |
US $0.92 |
||
|
9009905252
|
9009905252
90099-05252 NUT HEXAGON |
90099-05252 |
US $0.84 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.90 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
