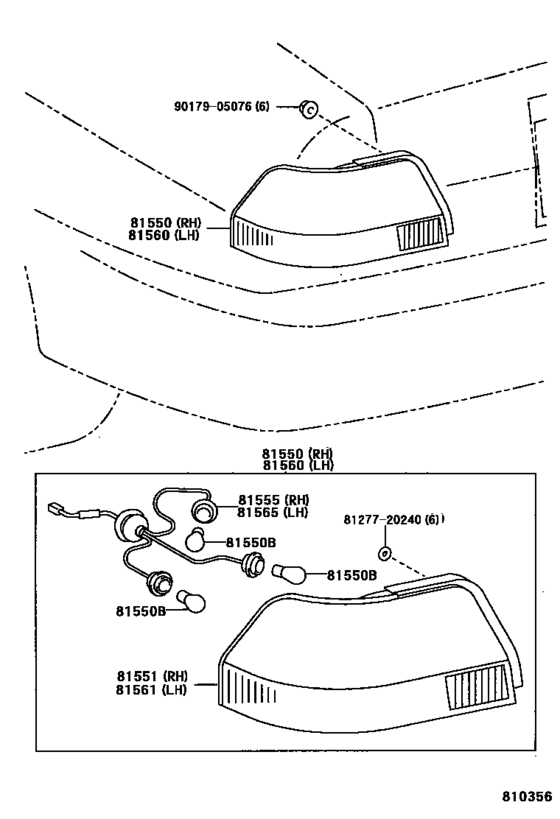

Rear Combination Lamp ([05.1995 - 04.1997] (9505-9704)) Diagram Toyota COROLLA
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CE110
- grade
- DX
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1995
- To
- 04.1998
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-1A660 Lamp Assy, Rear Combination, Rh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81550-1A660 |
US $288.29 |
||
| replacement | |||||
|
81550
|
81550
81550-1A661
Lamp Assy, Rear Combination, Rh
[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81550-1A661 |
— | ||
|
81550
|
81550
81550-1A661
Lamp Assy, Rear Combination, Rh
[05.1996 - 04.1997] AE11#,CE11#,EE111 |
81550-1A661 |
— | ||
|
81550
|
81550
81550-1E080 Lamp Assy, Rear Combination, Rh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81550-1E080 |
US $227.14 |
||
| replacement | |||||
|
81550
|
81550
81550-1E180 Lamp Assy, Rear Combination, Rh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81550-1E180 |
US $225.68 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[04.1997 - 08.2000] AE11#,CE11#,EE111 １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[04.1997 - 08.2000] AE11#,CE11#,EE111 １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[05.1995 - 04.1997] AE11#,CE11#,EE111 １２Ｖ ２１Ｗ |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1995 - 04.1997] AE11#,CE11#,EE111 １２Ｖ ２１／５Ｗ |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-1A660 Lens, Rear Combination Lamp, Rh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81551-1A660 |
US $199.47 |
||
| replacement | |||||
|
81551
|
81551
81551-1A661 Lens, Rear Combination Lamp, Rh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81551-1A661 |
from US $184.63 |
||
|
81551
|
81551
81551-1A661 Lens, Rear Combination Lamp, Rh[05.1996 - 04.1997] AE11#,CE11#,EE111 |
81551-1A661 |
from US $184.63 |
||
|
81551
|
81551
81551-1E080 Lens, Rear Combination Lamp, Rh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81551-1E080 |
US $189.28 |
||
| replacement | |||||
|
81551
|
81551
81551-1E180 Lens, Rear Combination Lamp, Rh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81551-1E180 |
US $201.02 |
||
|
81555
|
81555
81555-1A660 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1995 - 04.1997] AE11#,CE11#,EE111 |
81555-1A660 |
US $33.05 |
||
|
81555
|
81555
81555-1E080 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
81555-1E080 |
US $27.37 |
||
|
81560
|
81560
81560-1A660 Lamp Assy, Rear Combination, Lh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81560-1A660 |
US $288.29 |
||
| replacement | |||||
|
81560
|
81560
81560-1A661 Lamp Assy, Rear Combination, Lh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81560-1A661 |
US $288.29 |
||
|
81560
|
81560
81560-1A661 Lamp Assy, Rear Combination, Lh[05.1996 - 04.1997] AE11#,CE11#,EE111 |
81560-1A661 |
US $288.29 |
||
|
81560
|
81560
81560-1E040 Lamp Assy, Rear Combination, Lh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81560-1E040 |
US $227.14 |
||
| replacement | |||||
|
81560
|
81560
81560-1E140 Lamp Assy, Rear Combination, Lh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81560-1E140 |
US $225.68 |
||
|
81561
|
81561
81561-1A660 Lens, Rear Combination Lamp, Lh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81561-1A660 |
US $199.47 |
||
| replacement | |||||
|
81561
|
81561
81561-1A661 Lens, Rear Combination Lamp, Lh[05.1995 - 05.1996] AE11#,CE11#,EE111 |
81561-1A661 |
US $199.47 |
||
|
81561
|
81561
81561-1A661 Lens, Rear Combination Lamp, Lh[05.1996 - 04.1997] AE11#,CE11#,EE111 |
81561-1A661 |
US $199.47 |
||
|
81561
|
81561
81561-1E040 Lens, Rear Combination Lamp, Lh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81561-1E040 |
US $189.28 |
||
| replacement | |||||
|
81561
|
81561
81561-1E140 Lens, Rear Combination Lamp, Lh[04.1997 - 04.1999] AE11#,CE11#,EE111 |
81561-1E140 |
US $201.02 |
||
|
81565
|
81565
81555-1A660 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1995 - 04.1997] AE11#,CE11#,EE111 |
81555-1A660 |
US $33.05 |
||
|
81565
|
81565
81555-1E080 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[04.1997 - 08.2000] AE11#,CE11#,EE111 |
81555-1E080 |
US $27.37 |
||
|
8127720240
|
8127720240
81277-20240 Shade, License Plate Lamp, Rh |
81277-20240 |
US $1.60 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
