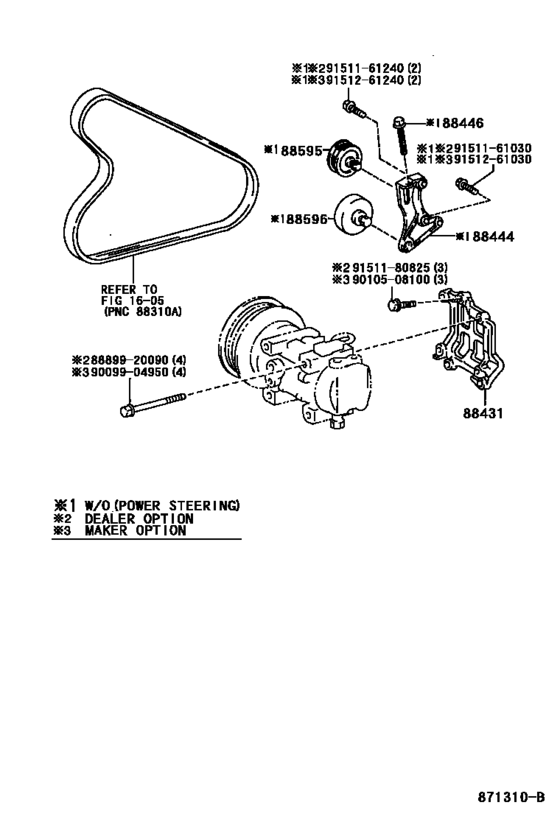

Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )CE110) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- CE110
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-12510
Bracket, Compressor Mounting, No.1
[04.1997 - 12.1998] CE110..GEN; CE110 |
88431-12510 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-12511
Bracket, Compressor Mounting, No.1
[04.1997 - 12.1998] CE110..GEN; CE110 |
88431-12511 |
— | ||
|
88431
|
88431
88431-12511
Bracket, Compressor Mounting, No.1
[12.1998 - 10.1999] CE110 |
88431-12511 |
— | ||
|
88444
|
88444
88444-12050
Bracket, Idle Pulley
[04.1997 - 10.1999] CE110..GEN |
88444-12050 |
— | ||
|
88446
|
88446
88446-12020
Bolt, Idle Pulley
[04.1997 - 10.1999] CE110..GEN |
88446-12020 |
— | ||
|
88595
|
88595
88440-12100 Pulley, Cooler Compressor Idle[04.1997 - 10.1999] CE110..GEN MAKER OPTION |
88440-12100 |
US $103.38 |
||
|
88595
|
88595
88440-12170 Pulley Assy, Power Steering Idle[04.1997 - 10.1999] CE110..LHD DEALER OPTION |
88440-12170 |
from US $85.90 |
||
|
88596
|
88596
88440-12190
Pulley Assy, Idle
[04.1997 - 10.1999] CE110..GEN |
88440-12190 |
— | ||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151161240
|
9151161240
91511-61240
New Genuine Part
|
91511-61240 |
— | ||
| replacement | |||||
|
9151161240
|
9151161240
90091-41202
New Genuine Part
|
90091-41202 |
— | ||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151261240
|
9151261240
91512-61240 New Genuine Part |
91512-61240 |
US $3.49 |
||
