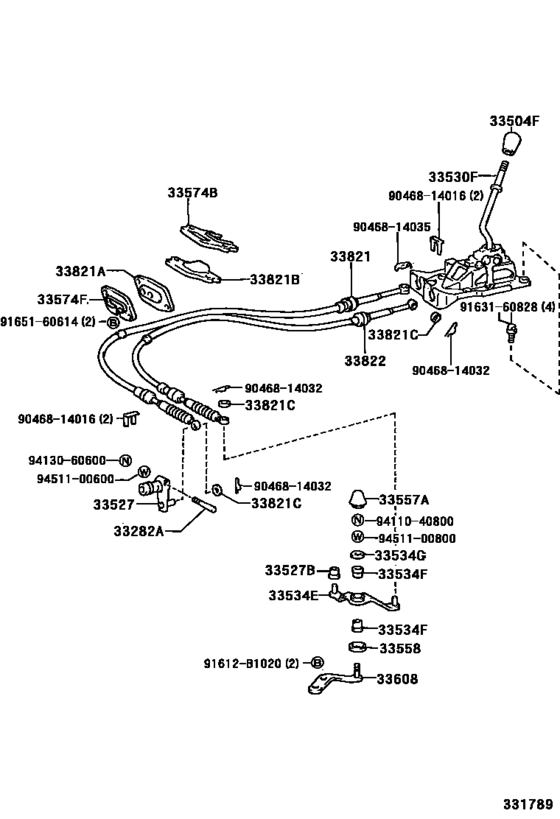

Shift Lever & Retainer ([04.1997 - ] (9704- )CE110) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- CE110
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33282A
|
33282A
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[04.1997 - 10.1999] CE110 |
33282-35010 |
from US $2.56 |
||
|
33504F
|
33504F
33504-12180-B4
Knob Sub-Assy, Shift Lever
[04.1997 - 10.1999] EE110..GCC;EE111..VEN;AE111..RHD..WG;AE111..5F..(GCC,TUR,VEN);AE112..5F..(ARL,GCC, GEN,VEN) DK.CHARCOAL,TRIM1#; AE111,CE110,EE110..SED..5F..(GL,GLI,XL,XLI)..GEN DK.CHARCOAL,TRIM10 |
33504-12180-B4 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[04.1997 - 10.1999] EE110..GCC;EE111..VEN;AE111..RHD..WG;AE111..5F..(GCC,TUR,VEN);AE112..5F..(ARL,GCC, GEN,VEN) DK.CHARCOAL,TRIM1#; AE111,CE110,EE110..SED..5F..(GL,GLI,XL,XLI)..GEN DK.CHARCOAL,TRIM10 |
33504-12180-B7 |
from US $36.33 |
||
|
33504F
|
33504F
33504-12180-B5
Knob Sub-Assy, Shift Lever
[04.1997 - 10.1999] AE110..5F..GLI;EE111..5F..GEN MD.CHARCOAL,TRIM1#; AE111,CE110,EE110..SED..5F..(GL,GLI,XL,XLI)..GEN MD.CHARCOAL,TRIM14 |
33504-12180-B5 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[04.1997 - 10.1999] AE110..5F..GLI;EE111..5F..GEN MD.CHARCOAL,TRIM1#; AE111,CE110,EE110..SED..5F..(GL,GLI,XL,XLI)..GEN MD.CHARCOAL,TRIM14 |
33504-12180-B7 |
from US $36.33 |
||
|
33527
|
33527
33527-32010 Lever, Control Shift (For Floor Shift)[04.1997 - 10.1999] CE110 |
33527-32010 |
US $56.06 |
||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[04.1997 - 10.1999] CE110 |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-02040
Lever Assy, Shift (For Floor Shift)
[07.1999 - 10.1999] EE110..LHD..MTM..(GCC,GEN);AE111..LHD..5F..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LH D..5F..(GCC,GEN,VEN) (L); AE111,112,CE110,EE11#..LHD..MTM (L) |
33530-02040 |
— | ||
|
33530F
|
33530F
33530-12681 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [04.1997 - 07.1999] AE112..5F..(GCC,GEN,VEN);EE110..LHD..MTM..(GCC,GEN);AE111,CE110..LHD..SED..5F..(GC C,GEN,TUR,VEN); AE111,112,CE110,EE11#..LHD..MTM |
33530-12681 |
US $203.84 |
||
|
33534E
|
33534E
33534-33010
Crank, Selecting Bell, No.2
[04.1997 - 10.1999] CE110 |
33534-33010 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[05.1995 - 08.1998] AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE11 0..SED..5F..(GCC,GEN,TUR,VEN) |
90386-12022 |
US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[05.1995 - 08.1998] AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE11 0..SED..5F..(GCC,GEN,TUR,VEN) |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[05.1995 - 08.1998] AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE11 0..SED..5F..(GCC,GEN,TUR,VEN) |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-32010
Cover, Selecting Bellcrank Dust, No.2
[04.1997 - 10.1999] CE110 |
33558-32010 |
— | ||
|
33574B
|
33574B
33574-12060
Retainer, Shift Cable Grommet, No.2
[05.1995 - 08.2002] AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110, 111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) |
33574-12060 |
— | ||
|
33574F
|
33574F
33574-12080 Retainer, Dust Seal (For Column Shift Control Shaft)[04.1997 - 11.1997] AE111..RHD..WG;EE110..LHD..3FC;AE111..GL,SEG,XL;AE111..LHD..SED..5F..(GLI,XLI)..(G CC,GEN);AE111,EE111..SED..ATM..(GLI,XLI)..(GCC,GEN);AE110,112,CE110,EE110..(4F,4FC ,5F)..(GCC,GEN); AE112;AE111..GL,XL;AE111..WG..5F;AE111..5F..(GCC,GEN |
33574-12080 |
US $7.16 |
||
|
33608
|
33608
33608-33010 Support Sub-Assy, Selecting Bellcrank[04.1997 - 10.1999] CE110 |
33608-33010 |
US $18.08 |
||
|
33821
|
33821
33821-12740
Cable Transmission Control Shift (For Floor Shift)
[04.1997 - 10.1999] CE110 |
33821-12740 |
— | ||
|
33821A
|
33821A
90480-01400 Grommet, No.1 (For Transmission Control Cable)[05.1995 - 08.2002] AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110, 111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) |
90480-01400 |
US $4.54 |
||
|
33821B
|
33821B
90480-01398
Grommet, No.2 (For Transmission Control Cable)
[05.1995 - 08.2002] AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110, 111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) |
90480-01398 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[05.1995 - 08.2002] AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..( GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) OD=30,TRANSAXLLE SIDE |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[05.1995 - 08.2002] AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..( GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) SHIFT LEVER SIDE |
90201-10042 |
from US $1.44 |
||
|
33822
|
33822
33822-12310
Cable Transmission Control Select (For Floor Shift)
[04.1997 - 10.1999] CE110 |
33822-12310 |
— | ||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.84 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
