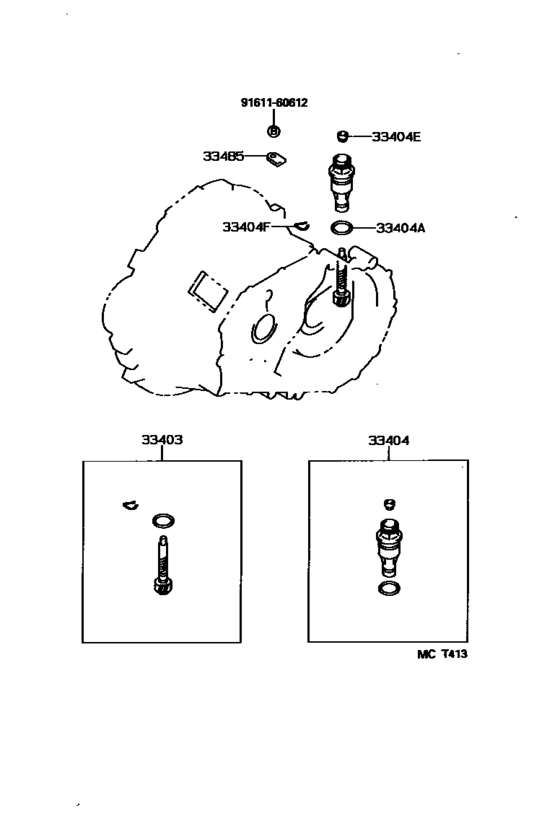

Speedometer Driven Gear (Mtm) ([04.1997 - ] S50 (9704- )CE110) Diagram Toyota COROLLA
- Year
- 1997 - 2001
- Sales region
- General
- Frame
- CE110
- grade
- XL
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 09.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-39115
Gear Sub-Assy, Speedometer Driven
[04.1997 - 10.1999] CE110 N=22,MARK 22:25 |
33403-39115 |
— | ||
|
33404
|
33404
33404-16010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[04.1997 - 10.1999] CE110 |
33404-16010 |
US $23.71 |
||
|
33404A
|
33404A
96711-24018 Ring, O[04.1997 - 10.1999] CE110 |
96711-24018 |
from US $2.34 |
||
|
33404E
|
33404E
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[05.1995 - 08.2002] EE111..5F..(GEN,VEN);AE111..RHD..5F..(GLI,XLI)..GEN;AE111,EE110..MTM..(GL,SEG,STD, XL)..(GCC,GEN);AE110,112,CE110,ZZE11#..SED..5F..(ARL,GEN,TUR) |
90310-09001 |
from US $2.56 |
||
|
33404F
|
33404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[05.1995 - 10.1999] AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111, CE110..SED..5F..(GCC,GEN,TUR,VEN) |
90468-12005 |
US $1.44 |
||
|
33485
|
33485
33485-14010 Plate, Speedometer Sleeve Lock (Mtm)[04.1997 - 10.1999] CE110 |
33485-14010 |
US $2.24 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
