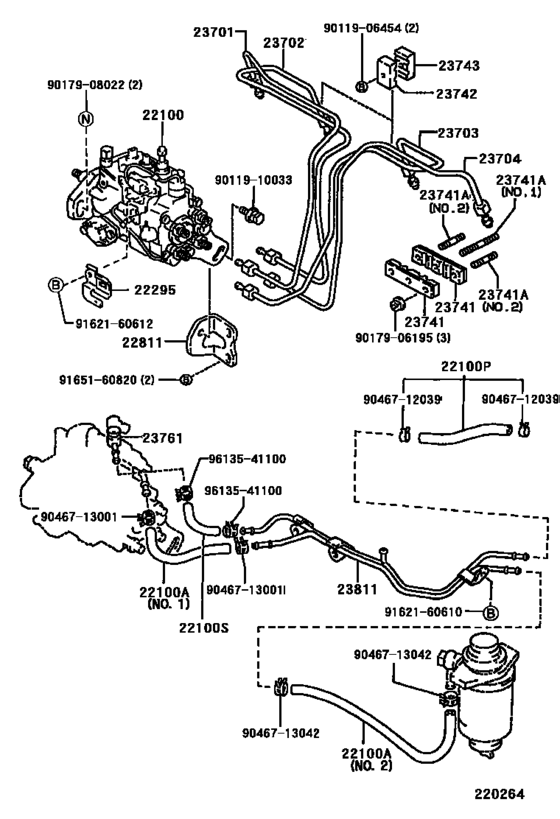

Injection Pump Assembly ([10.1997 - ] (9710- )2CE) Diagram Toyota COROLLA
- Year
- 1999 - 2000
- Sales region
- General
- Frame
- CE110
- grade
- XLI
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 10.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-6E150 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.1999 - 10.2000] 2CE..CE110 |
22100-6E150 |
US $4,630.08 |
||
|
22100A
|
22100A
23271-64170 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[04.1997 - 09.2001] 2C#..CE110..GEN NO.2 |
23271-64170 |
US $10.63 |
||
|
22100A
|
22100A
23273-64030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[04.1997 - 09.2001] 2C#..CE110..GEN NO.1 |
23273-64030 |
US $5.36 |
||
|
22100P
|
22100P
23271-64160 Hose, Fuel(For Fuel Pipe To Fuel Tube)[04.1997 - 09.2001] 2C#..CE110..GEN |
23271-64160 |
US $14.12 |
||
|
22100S
|
22100S
23274-64020 Hose, Fuel(For Injection Pump To Fuel Pipe)[10.1999 - 10.2000] 2CE..CE110 |
23274-64020 |
US $11.65 |
||
|
22295
|
22295
22295-64020 Bracket, Injection Pump ConnectorINJECTION PUMP CONNECTOR [10.1999 - 10.2000] 2CE..CE110 |
22295-64020 |
US $5.24 |
||
|
22811
|
22811
22811-64020 Stay, Injection Pump, No.1[04.1997 - 09.2001] 2C#..CE110..GEN |
22811-64020 |
US $22.71 |
||
|
23701
|
23701
23701-64110 Pipe Sub-Assy, Injection, No.1[04.1997 - 09.2001] 2C#..CE110..GEN |
23701-64110 |
US $19.22 |
||
|
23702
|
23702
23702-64110 Pipe Sub-Assy, Injection, No.2[04.1997 - 09.2001] 2C#..CE110..GEN |
23702-64110 |
US $22.28 |
||
|
23703
|
23703
23703-64090 Pipe Sub-Assy, Injection, No.3[04.1997 - 09.2001] 2C#..CE110..GEN |
23703-64090 |
US $22.28 |
||
|
23704
|
23704
23704-64110 Pipe Sub-Assy, Injection, No.4[04.1997 - 09.2001] 2C#..CE110..GEN |
23704-64110 |
US $21.40 |
||
|
23741
|
23741
23741-64010
Clamp, Injection Pipe, No.1
[04.1997 - 09.2001] 2C#..CE110..GEN |
23741-64010 |
— | ||
| replacement | |||||
|
23741
|
23741
23741-64011 Clamp, Injection Pipe, No.1[04.1997 - 09.2001] 2C#..CE110..GEN |
23741-64011 |
US $14.33 |
||
|
23741A
|
23741A
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
[04.1997 - 09.2001] 2C#..CE110..GEN NO.1 |
90116-06275 |
— | ||
| replacement | |||||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[04.1997 - 09.2001] 2C#..CE110..GEN NO.1 |
90116-06095 |
US $1.44 |
||
|
23741A
|
23741A
92122-60622 Bolt, Stud(For Injection Pipe Clamp)[04.1997 - 09.2001] 2C#..CE110..GEN NO.2 |
92122-60622 |
US $1.89 |
||
|
23742
|
23742
23741-54010 Clamp, Injection Pipe, No.1[04.1997 - 09.2001] 2C#..CE110..GEN |
23741-54010 |
US $20.22 |
||
|
23743
|
23743
23742-54010 Clamp, Injection Pipe, No.2[04.1997 - 09.2001] 2C#..CE110..GEN |
23742-54010 |
US $20.22 |
||
|
23761
|
23761
23764-64110 Pipe, Nozzle Leakage, No.1[10.1999 - 10.2000] 2CE..CE110 |
23764-64110 |
US $29.12 |
||
|
23811
|
23811
23811-64120 Pipe, Fuel(For Fuel Filter To Injection Pump)[10.1999 - 10.2000] 2CE..CE110 |
23811-64120 |
US $66.25 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.75 |
||
|
9011910033
|
9011910033
90119-10033 Bolt, No.1 (For Center Support Bearing) |
90119-10033 |
US $3.35 |
||
| replacement | |||||
|
9011910033
|
9011910033
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $3.68 |
||
|
9017906195
|
9017906195
90179-06195 New Genuine Part |
90179-06195 |
US $1.92 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.54 |
||
|
9046712039
|
9046712039
90467-12039 Clip, No.1(For Idle-Up Hose) |
90467-12039 |
US $2.48 |
||
| replacement | |||||
|
9046712039
|
9046712039
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.68 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713042
|
9046713042
90467-13042 Clip, No.2(For Idle-Up Hose) |
90467-13042 |
US $3.04 |
||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.85 |
||
