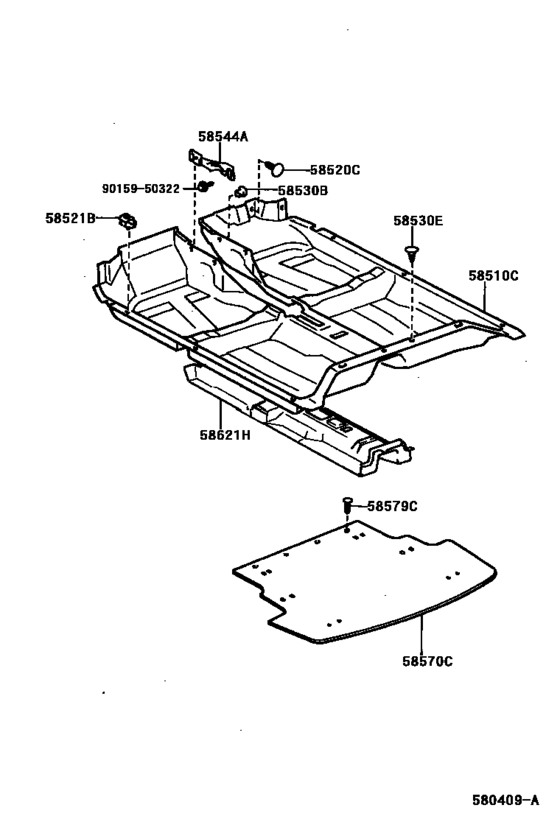

Mat & Carpet ([04.1997 - ] (9704- )) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- CE110
- grade
- TERRA
- body
- SED
- ENGINE
- 2CE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510C
|
58510C
58510-1E750-B0 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [04.1997 - 01.1999] AE111,CE110,EE111..RHD..SED DARK CHARCOAL,TRIM0#,1# |
58510-1E750-B0 |
US $939.12 |
||
|
58510C
|
58510C
58510-1E750-B1 Carpet Assy, Front Floor, FrontFRONT FLOOR, FRONT [01.1999 - 10.1999] AE111,CE110,EE111..RHD..SED SHADOW GRAY,TRIM1# |
58510-1E750-B1 |
US $939.12 |
||
|
58520C
|
58520C
90467-09068-22 Clip(For Front Floor Mat)[04.1997 - 01.1999] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..(LUNA,TERRA) BLACK,TRIM0#,1# |
90467-09068-22 |
US $3.67 |
||
|
58521B
|
58521B
58521-12120 Hook, Floor Carpet[04.1997 - 10.1999] AE11#,CE110,EE11# |
58521-12120 |
US $3.52 |
||
|
58530B
|
58530B
90467-09118 Clip(For Hood Insulator)[04.1997 - 10.1999] AE11#,CE110,EE11# |
90467-09118 |
US $3.04 |
||
|
58530E
|
58530E
90467-07042-B1 Clip(For Floor Carpet Center Cover)[04.1997 - 08.1998] EE110 SHADOW GRAY,TRIM0#,1#; EE111..STD SHADOW GRAY,TRIM1#; AE111,CE110,EE11#..SED..TERRA SHADOW GRAY,TRIM0#,1# |
90467-07042-B1 |
US $1.16 |
||
|
58530E
|
58530E
90467-07042-C0 Clip[04.1997 - 08.1998] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..TERRA BLACK,TRIM0#,1#; AE11#,CE110,EE111..WG BLACK,TRIM1# |
90467-07042-C0 |
US $1.12 |
||
| replacement | |||||
|
58530E
|
58530E
90467-06175 Clip(For Luggage Compartment Door)[04.1997 - 08.1998] EE110 BLACK,TRIM0#,1#; AE111,CE110,EE11#..SED..TERRA BLACK,TRIM0#,1#; AE11#,CE110,EE111..WG BLACK,TRIM1# |
90467-06175 |
US $3.52 |
||
|
58530E
|
58530E
90467-07049-C0 Clip[04.1997 - 01.1999] EE110 BLACK,TRIM0#,1#,OD=20; AE111,CE110,EE11#..SED..(LUNA,TERRA) BLACK,TRIM0#,1#,OD=20 |
90467-07049-C0 |
US $1.60 |
||
|
58544A
|
58544A
58544-13040 Bracket, Floor Carpet, Lh[04.1997 - 10.1999] AE111,CE110,EE111..RHD |
58544-13040 |
US $9.61 |
||
|
58621H
|
58621H
58621-12100 Pad, Front Floor SilencerFRONT FLOOR SILENCER [04.1997 - 10.1999] AE111,CE110,EE11#..SED |
58621-12100 |
US $142.69 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.70 |
||
